YUCHAI T3 SERIES

YUCHAI T3 SERIES

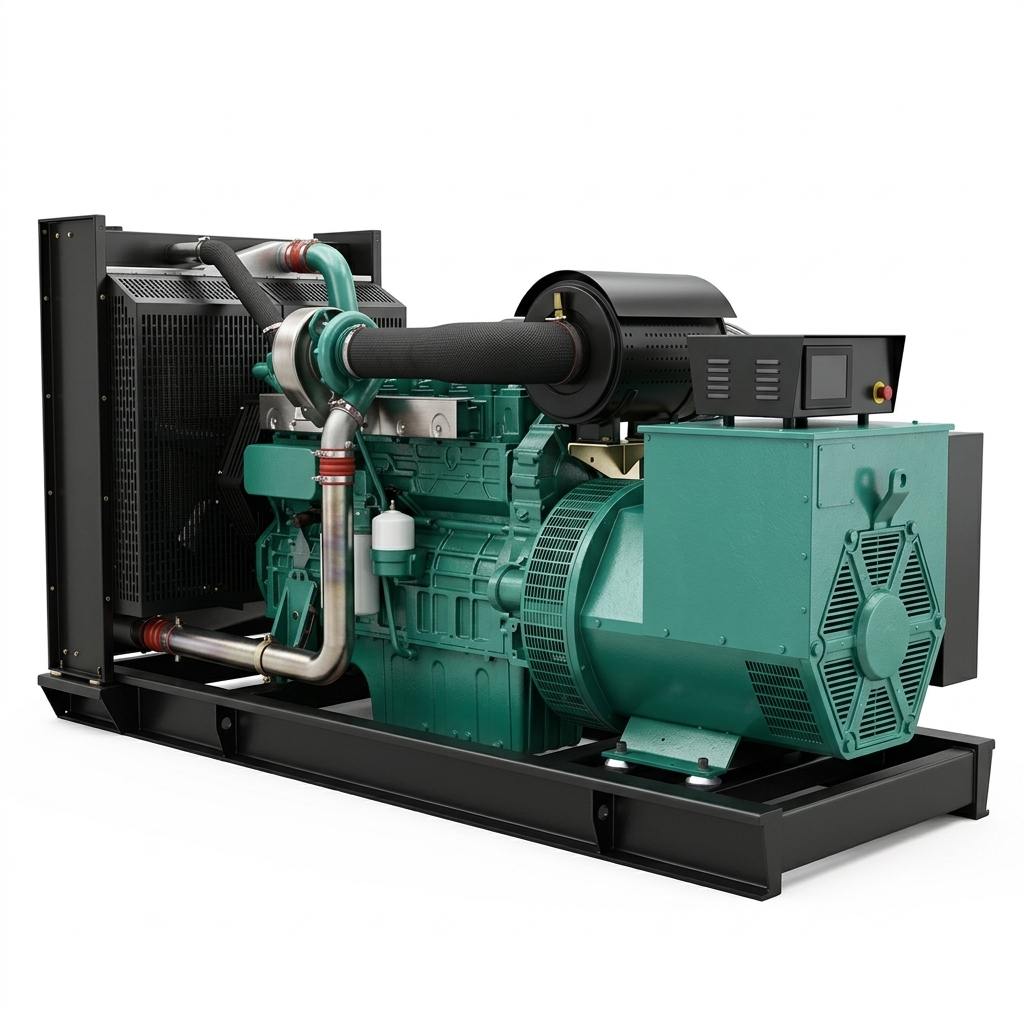

Yuchai T3 diesel generator sets from 550–2600 kW, designed for large-scale power demand and stable performance. Suitable for heavy industrial and continuous power generation applications.

Model	Prime Power (kW)	Engine Model	Engine Power (kW)	No. of Cylinder	Bore (mm)	Stroke (mm)	Displacement (L)	Compression Ratio	Oil Capacity (L)	Fuel Consumption (g/kWh)	Dimensions (L×W×H) (mm)	Weight (kg)
BC-550GF	550	YC6TD840-D31	616	6	152	180	19.60	14.1:1	64	<195	3550×1500×1850	4000
BC-600GF	600	YC6TC900-D31	665	6	152	165	17.96	15.1:1	52	<225	3600×1500×1850	4050
BC-600GF	600	YC6TD900-D31	665	6	152	180	19.60	14.1:1	64	<195	3600×1500×1850	4300
BC-660GF	660	YC6TD1000-D30	735	6	152	180	19.60	14.1:1	80	<195	3700×1900×2050	4500
BC-660GF	660	YC6C1020-D31	748	6	200	210	39.58	14.5:1	175	<195	4250×1900×2280	8200
BC-710GF	710	YC6TH1070-D31	787	6	175	195	28.14	15.1:1	120	<202	4110×1970×2300	6500
BC-710GF	710	YC6C1070-D31	787	6	200	210	39.58	14.5:1	175	<195	4400×1800×2200	8200
BC-700GF	700	YC6TD1100-D30	815	6	152	180	19.598	14.1:1	56	<220	4100×1500×2100	5800
BC-800GF	800	YC6TF1220-D30	897	6	152	180	19.598	14.1:1	56	<220	4450×1750×2500	7000
BC-800GF	800	YC6TH1220-D31	897	6	175	195	28.14	15.1:1	120	<202	4200×2000×2300	8000
BC-800GF	800	YC6C1220-D31	897	6	200	210	39.58	14.5:1	176	<195	4450×1750×2500	8200
BC-900GF	900	YC6TH1320-D31	968	6	175	195	28.14	15.1:1	104	<202	4100×1970×2350	8000
BC-900GF	900	YC6C1320-D31	968	6	200	210	39.58	14.5:1	176	<195	4500×1700×2450	8200
BC-1000GF	1000	YC6TF1520-D31	1118	6	175	220	31.75	13.5:1	115	<220	4200×1700×2200	7000
BC-1000GF	1000	YC6TC1520-D31	1118	6	200	210	39.58	13.5:1	175	<195	4600×1800×2500	8500
BC-1100GF	1100	YC6TF1660-D31	1221	6	175	220	31.75	13.5:1	115	<220	4200×1700×2200	7300
BC-1100GF	1100	YC6TC1660-D30	1221	6	200	210	39.58	13.5:1	180	<195	4600×2120×2250	8500
BC-900GF	900	YC12VTD1350-D30	990	12	152	180	39.2	14.1:1	215	<198	4500×2500×2550	8500
BC-1000GF	1000	YC12VTD1500-D30	1100	12	152	180	39.2	14.1:1	215	<198	4500×2500×2550	8500
BC-1100GF	1100	YC12VTD1680-D30	1230	12	152	180	39.2	14.1:1	215	<198	4500×2500×2550	8800
BC-1200GF	1200	YC12VTD1830-D30	1342	12	152	180	39.2	14.1:1	220	<198	4500×2600×2500	8800
BC-1300GF	1300	YC12VTD2000-D30	1480	12	152	180	39.2	14.1:1	220	<198	4600×2300×2600	9000
BC-1100GF	1100	YC12VC1680-D30	1230	12	200	210	79.17	13.5:1	360	<196	5400×2150×2800	14500
BC-1350GF	1350	YC12VC2070-D31	1520	12	200	210	79.17	13.5:1	360	<196	5400×2150×2800	14500
BC-1500GF	1500	YC12VC2270-D31	1670	12	200	210	79.17	13.5:1	360	<196	5450×2150×2850	14700
BC-1500GF	1500	YC16VTD2270-D30	1672	16	152	180	52.26	14.1:1	280	<205	5100×2650×2850	13000
BC-1600GF	1600	YC12VC2510-D31	1850	12	200	210	79.17	13.5:1	360	<196	5500×2280×2850	14800
BC-1650GF	1650	YC16VTD2510-D30	1850	16	152	180	52.26	14.1:1	280	<205	5700×2650×2850	13200
BC-1800GF	1800	YC12VC2700-D31	1985	12	200	210	79.17	13.5:1	370	<196	6300×2550×3050	16000
BC-1800GF	1800	YC16VTD2700-D30	1985	16	152	180	52.26	14.1:1	280	<200	5100×2650×2850	13800
BC-2000GF	2000	YC12VC3000-D30	2206	12	200	210	79.17	13.5:1	370	<200	6300×2550×3080	16500
BC-2000GF	2000	YC16VC3000-D31	2206	16	200	210	105.56	13.5:1	430	<195	6500×3000×3000	16500
BC-2200GF	2200	YC16VC3300-D31	2426	16	200	210	105.56	13.5:1	384	<195	8000×2750×3050	21000
BC-2400GF	2400	YC16VC3600-D31	2646	16	200	210	105.56	13.5:1	430	<195	6500×3000×3000	17000
BC-2600GF	2600	YC16VC4000-D31	2940	16	200	210	105.56	13.5:1	430
