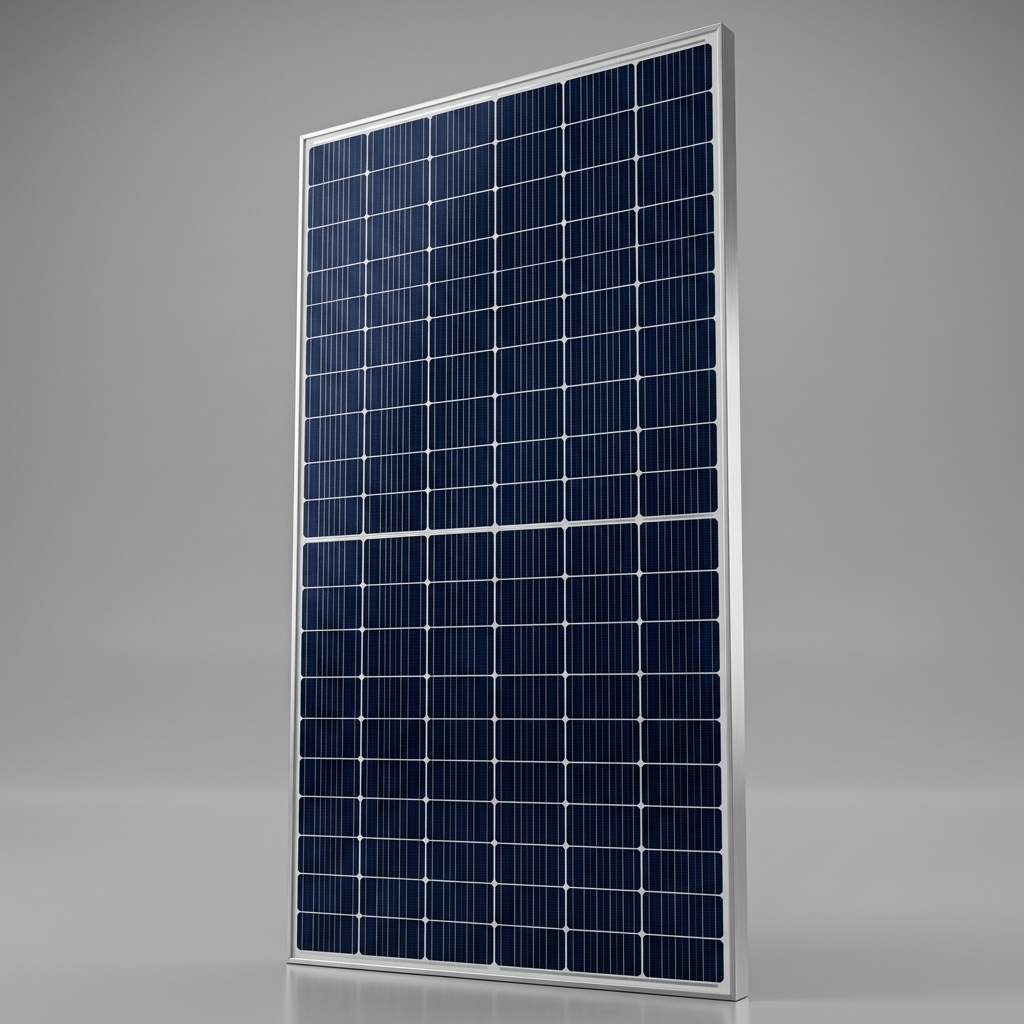

High-efficiency N-type TOPCon bifacial dual-glass solar module featuring 132 half-cut cells, 10BB multi-busbar technology, and up to 22.95% module efficiency.
| Parameter | 600W | 605W | 610W | 615W | 620W |
|---|---|---|---|---|---|
| Model Number | 620HT-02-600W | 620HT-02-605W | 620HT-02-610W | 620HT-02-615W | 620HT-02-620W |
| Rated Maximum Power (Pmax) | 600 W | 605 W | 610 W | 615 W | 620 W |
| Module Efficiency (%) | 22.21% | 22.40% | 22.58% | 22.77% | 22.95% |
| Power Output Tolerance | 0 ~ +3% | 0 ~ +3% | 0 ~ +3% | 0 ~ +3% | 0 ~ +3% |
| Cell Type & Arrangement | N-Type TOPCon Monocrystalline, 132 Half-cut Cells (182 × 105 mm) | N-Type TOPCon Monocrystalline, 132 Half-cut Cells (182 × 105 mm) | N-Type TOPCon Monocrystalline, 132 Half-cut Cells (182 × 105 mm) | N-Type TOPCon Monocrystalline, 132 Half-cut Cells (182 × 105 mm) | N-Type TOPCon Monocrystalline, 132 Half-cut Cells (182 × 105 mm) |
| Busbar Technology | 10BB Multi-Busbar | 10BB Multi-Busbar | 10BB Multi-Busbar | 10BB Multi-Busbar | 10BB Multi-Busbar |
| Bifaciality Factor | 80% ± 10% | 80% ± 10% | 80% ± 10% | 80% ± 10% | 80% ± 10% |
| Maximum System Voltage | 1500 VDC | 1500 VDC | 1500 VDC | 1500 VDC | 1500 VDC |
| Front & Rear Glass | 2.0 mm High-Transmission Tempered Glass | 2.0 mm High-Transmission Tempered Glass | 2.0 mm High-Transmission Tempered Glass | 2.0 mm High-Transmission Tempered Glass | 2.0 mm High-Transmission Tempered Glass |
| Frame Material | Anodized Aluminum Alloy | Anodized Aluminum Alloy | Anodized Aluminum Alloy | Anodized Aluminum Alloy | Anodized Aluminum Alloy |
| Junction Box & Protection | IP68 Rated | IP68 Rated | IP68 Rated | IP68 Rated | IP68 Rated |
| Output Connectors | MC4 Compatible | MC4 Compatible | MC4 Compatible | MC4 Compatible | MC4 Compatible |
| Module Dimensions (L×W) | 2382 × 1134 mm | 2382 × 1134 mm | 2382 × 1134 mm | 2382 × 1134 mm | 2382 × 1134 mm |
| Module Weight | 32.5 kg | 32.5 kg | 32.5 kg | 32.5 kg | 32.5 kg |
| NOCT (Nominal Operating Cell Temp) | 44 ± 2 ℃ | 44 ± 2 ℃ | 44 ± 2 ℃ | 44 ± 2 ℃ | 44 ± 2 ℃ |
| Temperature Coefficient of Pmax | -0.30% / ℃ | -0.30% / ℃ | -0.30% / ℃ | -0.30% / ℃ | -0.30% / ℃ |
| Temperature Coefficient of Voc | -0.25% / ℃ | -0.25% / ℃ | -0.25% / ℃ | -0.25% / ℃ | -0.25% / ℃ |
| Temperature Coefficient of Isc | +0.04% / ℃ | +0.04% / ℃ | +0.04% / ℃ | +0.04% / ℃ | +0.04% / ℃ |
| Warranty Terms | 12-Year Product Warranty, 25-Year Linear Power Warranty | 12-Year Product Warranty, 25-Year Linear Power Warranty | 12-Year Product Warranty, 25-Year Linear Power Warranty | 12-Year Product Warranty, 25-Year Linear Power Warranty | 12-Year Product Warranty, 25-Year Linear Power Warranty |
| Certifications | TUV / CE | TUV / CE | TUV / CE | TUV / CE | TUV / CE |
| Packaging Configuration | 36 pcs / Pallet (Pallet: 2396 × 1125 × 1270 mm, Weight: 1195 kg) | 36 pcs / Pallet (Pallet: 2396 × 1125 × 1270 mm, Weight: 1195 kg) | 36 pcs / Pallet (Pallet: 2396 × 1125 × 1270 mm, Weight: 1195 kg) | 36 pcs / Pallet (Pallet: 2396 × 1125 × 1270 mm, Weight: 1195 kg) | 36 pcs / Pallet (Pallet: 2396 × 1125 × 1270 mm, Weight: 1195 kg) |
| Container Loading Capacity | 720 pcs / 40′ HQ Container (20 Pallets) | 720 pcs / 40′ HQ Container (20 Pallets) | 720 pcs / 40′ HQ Container (20 Pallets) | 720 pcs / 40′ HQ Container (20 Pallets) | 720 pcs / 40′ HQ Container (20 Pallets) |
