Ice Making Equipment Solution
Stable ice supply for poultry pre-chilling, seafood preservation, food processing and cold chain display. NPW builds eleven ice making series — flake ice, seawater flake ice, fluid ice, tube ice, cube ice, block ice and bag ice — from 0.3 t/24h up to 30 t/24h, with matching evaporators, water chillers and ice storage & delivery systems. Choose the ice type, we size the machine.
Ice Is the Second Cooling System of Your Plant
In poultry slaughter, seafood handling, meat processing and baking, ice is not an accessory. It is the cooling medium that decides product temperature, microbiology and shelf life.
When the Ice Supply Breaks
What a plant loses without stable ice
- Poultry carcass pre-chilling misses the process temperature — the core stays warm and bacteria multiply
- Seafood and meat processed without cooling ice — quality drops and shelf life shortens
- Bakery dough temperature runs away — texture and finished-product rate suffer
- Supermarket fresh display without ice — shrinkage and waste climb
- Peak-hour ice shortage slows the line down or stops production
What NPW Delivers
Stable, controllable, hygienic ice
- Ice type matched to the cooling link: flake, fluid, tube, cube, block or bag ice
- Output sized from 0.3 to 30 t/24h against your real daily ice demand
- Food-grade stainless steel contact surfaces, HACCP / GMP friendly
- Stable production in hot and humid plants, 24/7 duty
- Complete cold chain in one package: evaporator, chiller, ice storage & delivery
NPW solves one thing: making sure every link that needs cooling gets stable, controllable and hygienic ice — from the spiral pre-cooler to the supermarket ice table.
Five Ice Types — One Matches Your Process
Every cooling link wants a different ice: fast heat pull for pre-chilling, slow melt for drink display, long cold reserve for transport. Start from the ice type and the machine follows.
Flake Ice
- Dry & free-flowing — never clumps
- Large contact area, fastest heat pull
- Ice temperature down to −0.5 °C
Fluid Ice
- Pumpable — flows like water
- Wraps every surface of the product
- Made directly from seawater
Tube Ice
- High hardness, no powder
- Crystal clear, food grade
- Slow dilution in drinks
Cube Ice
- Edible and good looking
- High hardness, long lasting
- Clean edges for presentation
Block & Bag Ice
- Stackable, transportable
- Custom block size and colour
- Sealed food-grade bags
Which Ice System Fits Your Plant?
Seven industries, seven different ice duties. Find your line below — every recommendation links to the exact NPW series and its full model table.
Poultry Slaughterhouse
Ice links: Carcass pre-chilling · spiral pre-cooler · cutting room · offal cooling
Fits: Chicken, duck and goose slaughter lines, 1,000–12,000 BPH
- Dry, non-clumping flakes with maximum contact area cool the bird fast
- Feeds the spiral pre-cooler and holds the water temperature stable
- Ice temperature down to −0.5 °C pulls carcass core temperature down quickly
- Suppresses bacterial growth and lifts shelf life
EN: poultry slaughterhouse ice machine · flake ice machine for chicken pre-chilling · spiral pre-cooler ice system

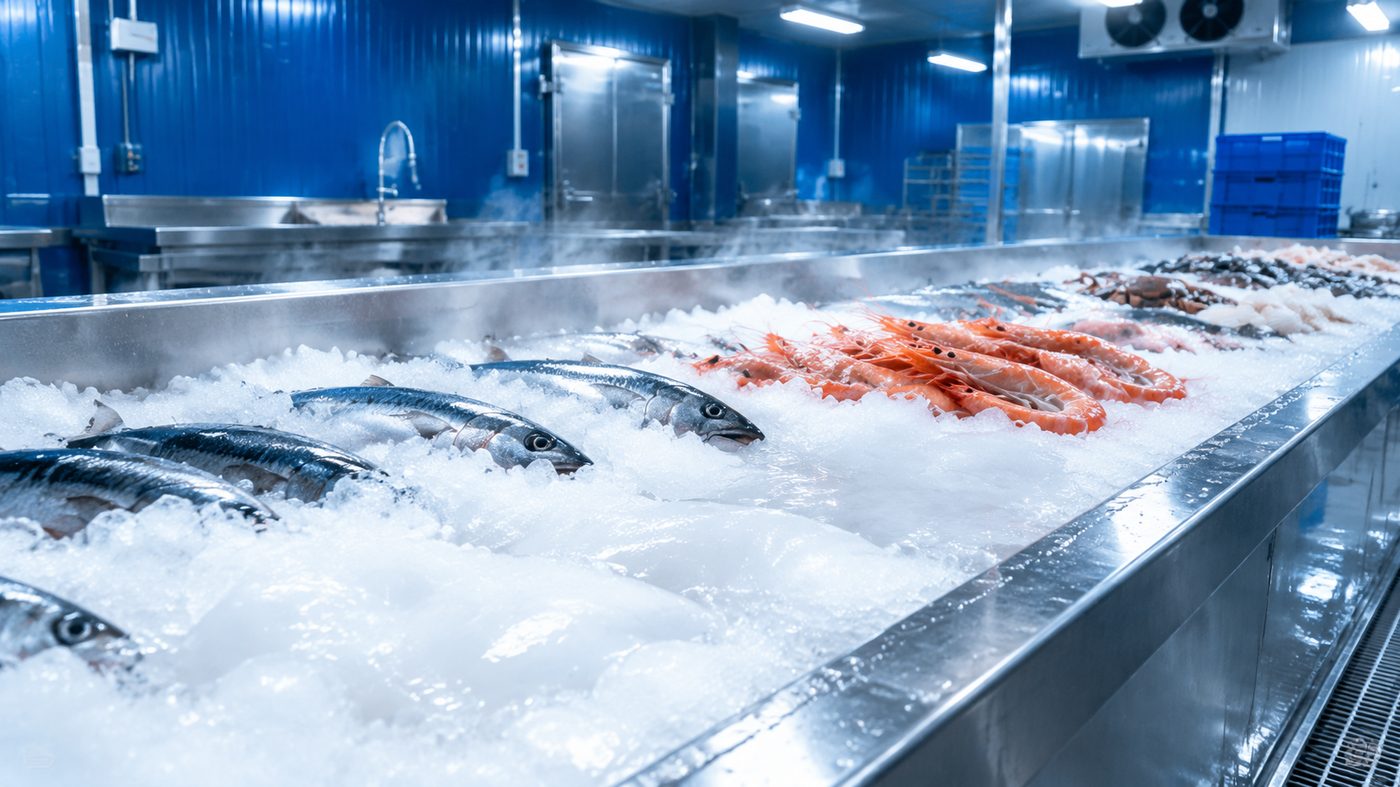

Seafood & Aquatic Processing
Ice links: Fish icing · shrimp cooling · seafood transport · fishing boat storage · market display
- NPW-FS — Seawater Flake Ice (on board) 0.5–6 t/24h
- NPW-S — Fluid Ice Machine 1–20 t/24h
- NPW-F — Flake Ice Machine 0.3–30 t/24h
Fits: Fish plants, shrimp plants, seafood markets, fishing boats, aquatic cold stores
- Flakes have no sharp edges — fish skin and shrimp shell keep their look
- Seawater machines make ice directly from seawater on board
- Low ice temperature and slow melt extend the freshness window
- Marine build solves the offshore ice supply problem
EN: flake ice machine for fish processing · seafood ice machine · seawater flake ice machine · fishing boat ice maker

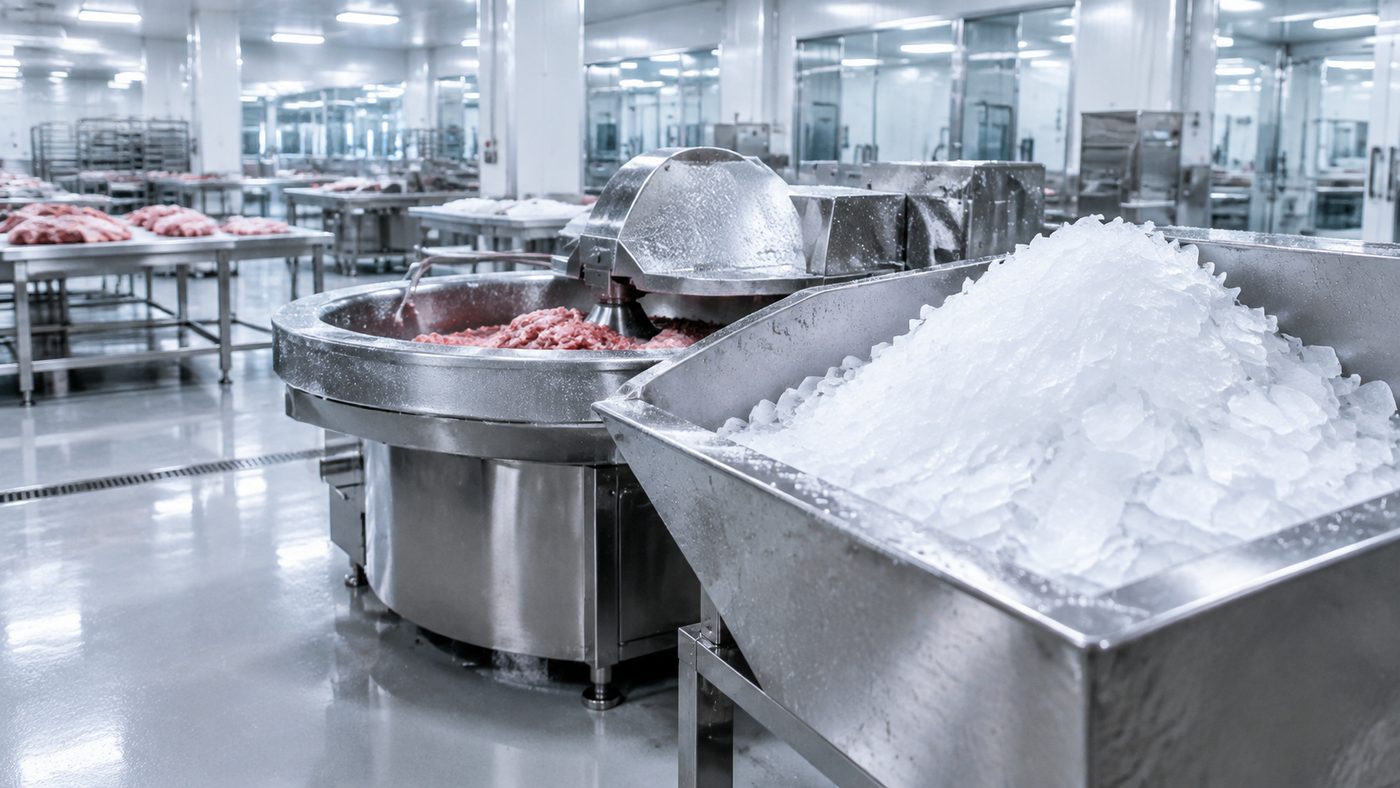

Meat & Food Processing
Ice links: Mince cooling · sausage emulsifying · dough temperature · vegetable keeping · sauce cooling
Fits: Meat plants, sausage plants, bakeries, central kitchens, seasoning plants
- Flakes mix evenly into mince and control mixer temperature rise
- Tube ice is crystal clear and food grade for visible product
- Food-grade contact surfaces meet hygiene standards
- Ice outlet can be built to your workshop layout
EN: flake ice machine for meat processing · food grade ice machine · tube ice machine for food factory · ice for sausage production

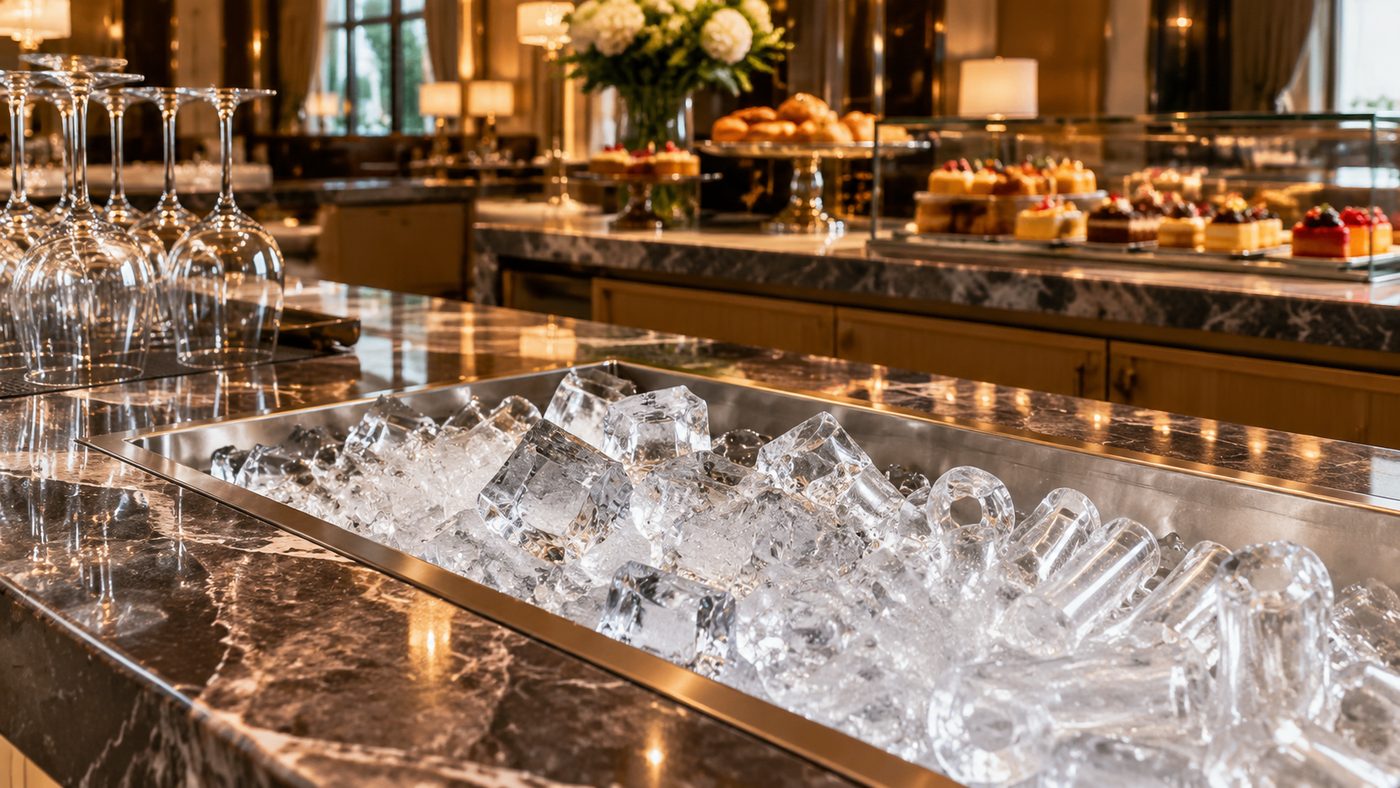

Bakery, Restaurant & Hotel
Ice links: Dough temperature control · beverage chilling · buffet display · cold drink making
Fits: Bread plants, cake shops, chain restaurants, hotels, bars, cafés
- Hollow tube ice melts slowly and looks good in drinks
- Hard cube ice for bars, cocktails and presentation
- Compact footprint fits a back-of-house install
- Stainless body, quiet and easy to clean
EN: tube ice machine for bakery · commercial ice machine for restaurant · ice maker for hotel

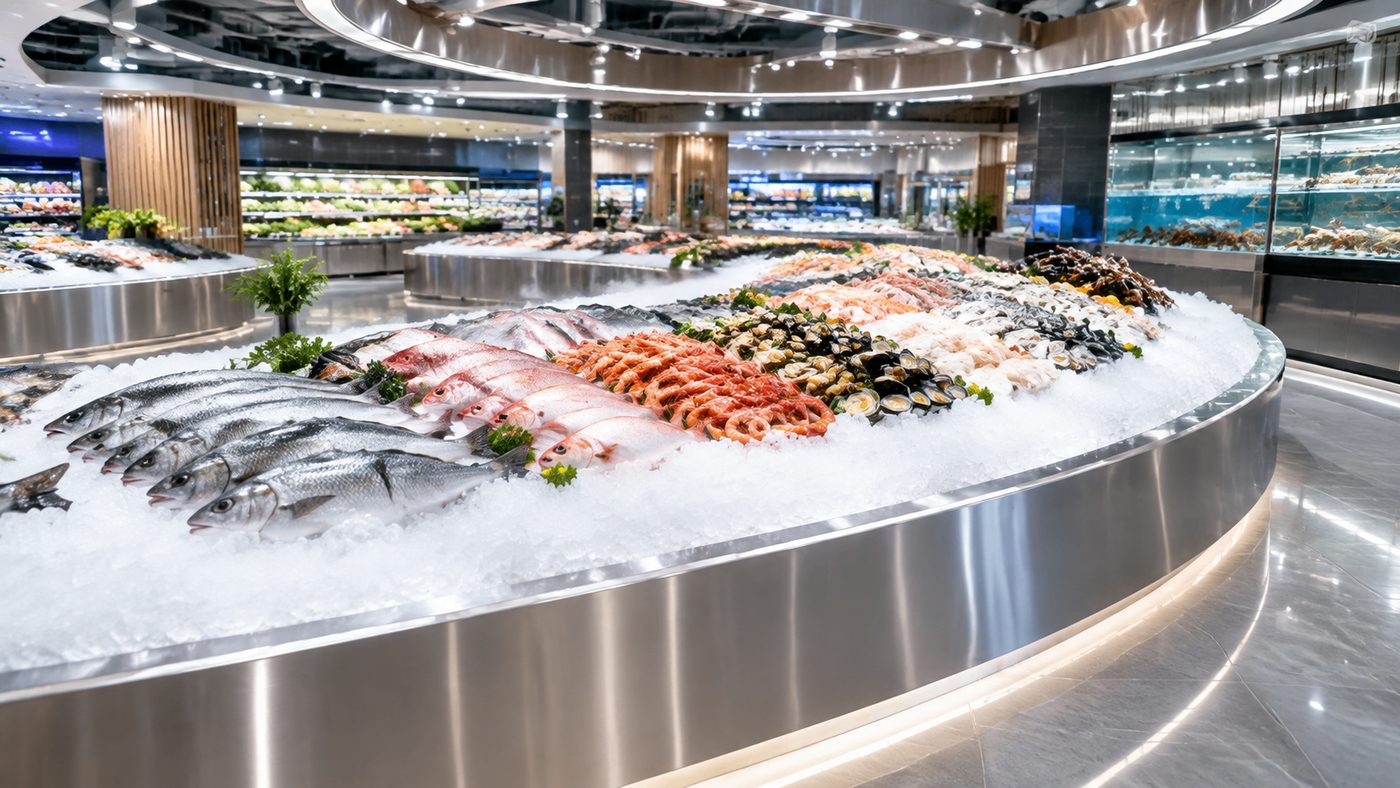

Supermarket & Cold Chain
Ice links: Fresh display · seafood ice table · vegetable cooling · cold chain transfer
Fits: Supermarkets, fresh food stores, wet markets, logistics centers
- Even flake coverage keeps the fresh counter looking new
- Bagged ice is sealed, hygienic and ready to sell
- Capacity sized to each store
- Simple operation and easy maintenance
EN: flake ice machine for supermarket · ice for seafood display · commercial ice maker for grocery store

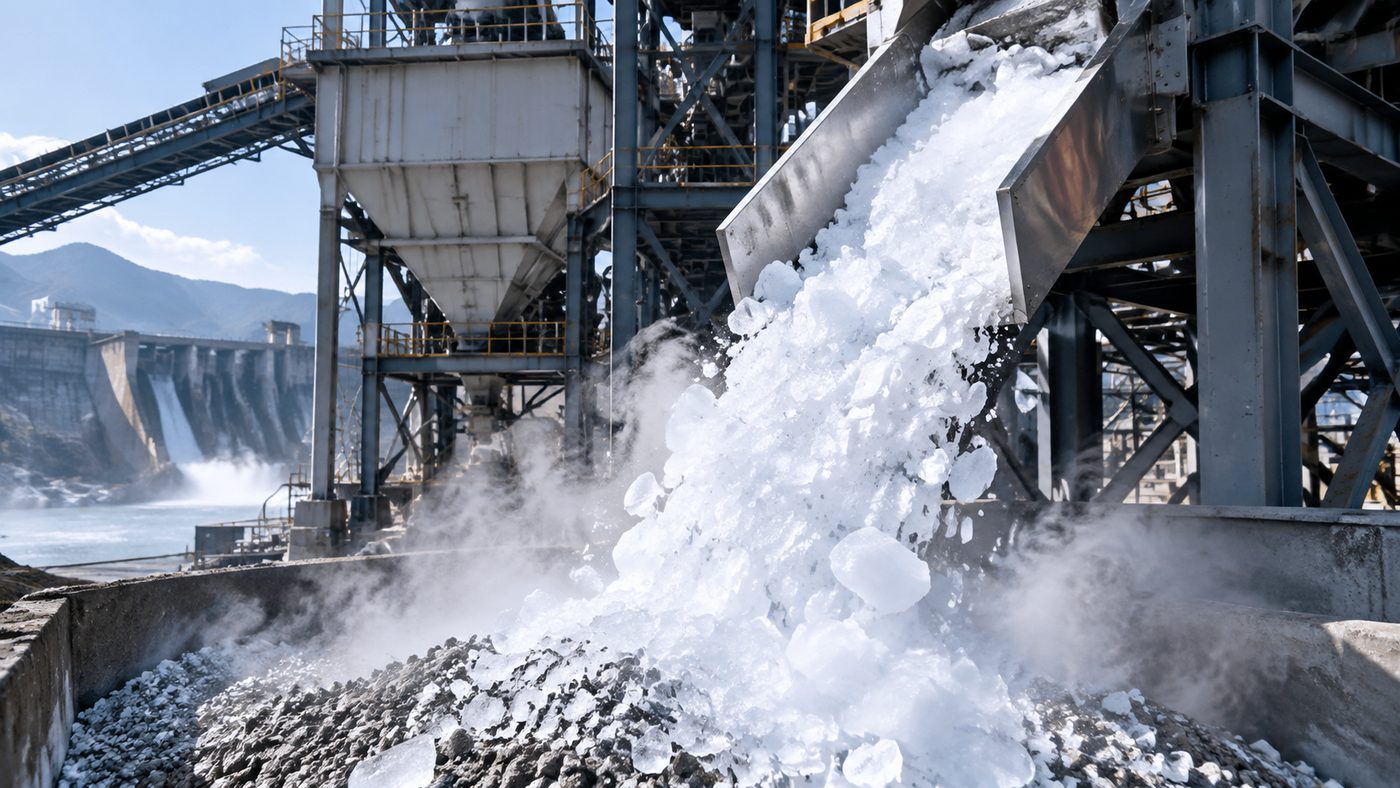

Concrete, Chemical & Industrial
Ice links: Mass concrete pour cooling · reactor cooling · mine cooling
- NPW-F — Flake Ice Machine 5–30 t/24h
- NPW-B — Block Ice Machine 5–30 t/day
- NPW-DELIVERY — Rake Type Freezer 18–60 t
Fits: Construction sites, hydropower dams, chemical plants, mines
- Large continuous output for uninterrupted pours
- Flakes go straight into the concrete mixer
- Block ice survives long transport and storage
- Dust-proof and anti-corrosion versions available
EN: concrete cooling ice machine · industrial ice machine for chemical plant · block ice machine for construction

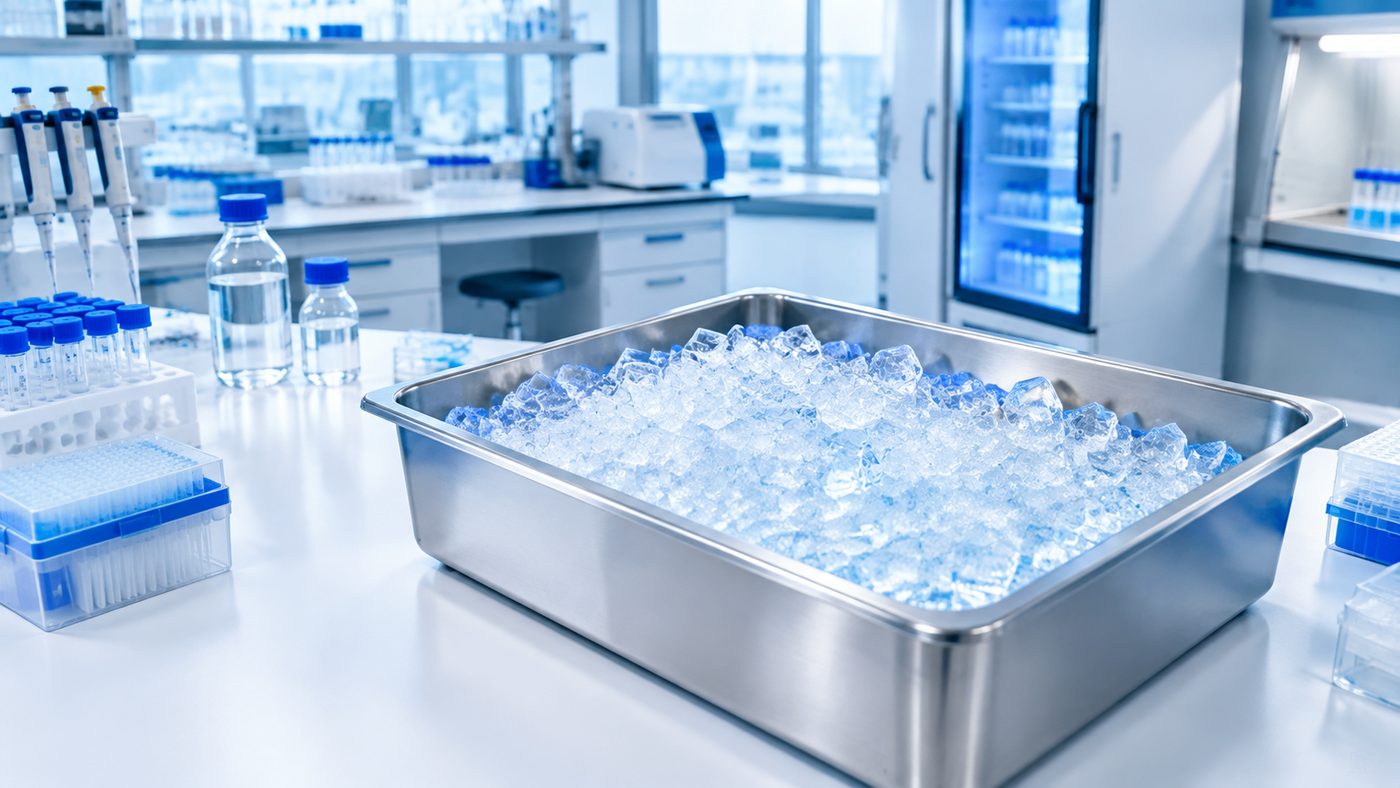

Medical, Lab & Hospitality
Ice links: Medical cooling · sample keeping · hotel rooms · buffet service
Fits: Hospitals, laboratories, hotels, guesthouses, offices
- Hygienic materials meet medical and food standards
- Small indoor footprint
- Quiet design suits hotels and hospitals
- Fully automatic — no dedicated operator
EN: commercial ice machine for hotel · medical ice machine · laboratory ice maker
11 Ice Making Series — Every Model, Every Spec
From a 0.3 t/24h flake ice machine with bin to a 30 t/24h containerized block ice plant, plus the evaporators, chillers and ice storage that complete the system. Jump to any series:
Ice Making Machines
Eight ways to make ice — flake, seawater flake, fluid, tube, cube, block and bagged ice.
FLAKE ICE MACHINE (NPW-F SERIES)
Dry, free-flowing flake ice from 0.3 to 30 t/24h — air-cooled or water-cooled, with or without ice bin. The workhorse for poultry pre-chilling, seafood and meat processing.
- 0.3–30 t/24h
- Air / Water cooled
- With or without ice bin
SEAWATER FLAKE ICE MACHINE ON BOARD (NPW-FS SERIES)
Marine flake ice machine that makes ice directly from seawater — built for fishing boats and coastal seafood plants where fresh water is scarce.
- 0.5–6 t/24h
- Seawater direct
- R404A · 220V/380V
FLUID ICE MACHINE (NPW-S SERIES)
Pumpable fluid (slurry) ice made from seawater for ocean fishing vessels — flows around every surface and into every corner of the fish hold.
- 1–20 t/24h
- Pumpable slurry ice
- 380V / 50Hz / 3N
TUBE ICE MACHINE (NPW-T SERIES)
Hollow tube ice with high hardness and no powder — clear, slow-melting ice for food plants, beverage lines, bakeries and catering.
- 1–30 t/24h
- Hollow · clear · slow melt
- R22 / R404A
LARGE EDIBLE CUBE ICE MACHINE (NPW-C SERIES)
Large edible cube ice from 2 to 10 t/24h — hard, good-looking cubes for hotels, bars, restaurants, buffet display and medical cooling.
- 2–10 t/24h
- Edible cube ice
- 5 models
ALUMINUM DIRECT COOLING BLOCK ICE MACHINE (NPW-B SERIES)
Direct-cooling block ice on aerospace aluminium alloy plate moulds — 0.5 to 30 t/day, containerized from 10 t for long transport and storage.
- 0.5–30 t/day
- Containerized ≥ 10 t
- R22 / R404A
SALT-WATER BLOCK ICE MACHINE (NPW-BRINE SERIES)
Brine block ice machine with customizable block size and colour at −5 °C — titanium tube evaporator, rust-proof, 30,000+ hours of continuous operation.
- 5–100 kg blocks
- Ice temp −5 °C
- Titanium evaporator

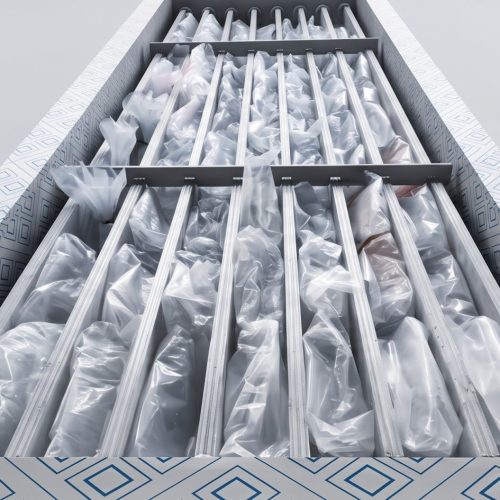

BAG ICE MACHINE (NPW-BAG SERIES)
Bagged block ice from 1 to 5 t/24h using food-grade plastic bags as ice moulds — sealed, hygienic and ready for retail sale or transport.
- 1–5 t/24h
- Food-grade bag moulds
- 5 models
Core Components
Build your own flake ice machine or upgrade an existing one.
FLAKE ICE MACHINE EVAPORATOR (NPW-FE SERIES)
Standalone flake ice evaporators from 0.3 to 30 t/24h — for OEM ice machine builds and capacity upgrades of an existing flake ice system.
- 0.3–30 t/24h
- 15 models
- R404A / R22
Chilling & Ice Storage Systems
Cold supply and ice storage that complete the system.
INDUSTRIAL WATER CHILLER (NPW-A SERIES)
Process chillers for ice plants and food lines — cabinet, screw and water-curtain types, with explosion-proof, strong acid/alkali and ultra-low temperature options.
- Cabinet / Screw / Water curtain
- 7 / −5 / −15 °C
- 3P-380V-50Hz
ICE DELIVERY SYSTEM & RAKE TYPE FREEZER (NPW-DELIVERY / NPW-RAKE)
Screw, conveyor and roots blower ice delivery paired with 18–60 t rake type freezers — store the ice you make and move it anywhere in the plant.
- 18–60 t storage
- Screw / Conveyor / Blower
- Any ice type
Full Model & Specification Tables
Open a series to see every model with capacity, power, dimensions and weight — the same data published on each product page. Need a size that is not listed? Every series is customizable.
Flake Ice Machine
Flake ice machine with capacity from 0.3T/24h to 30T/24h, air-cooled or water-cooled, with or without ice bin.
| Model | Capacity (T/24h) | Ice Storage (T) | Condensation Mode | Power Supply | Power (kW) | Dimensions (mm) | Remark |
|---|---|---|---|---|---|---|---|
| NPW-F0.3-FA/W | 0.3 | 0.2 | Air/Water | 220V/50Hz/1N | 1.15 | 760×850×1730 | With Ice Bin |
| NPW-F0.5-FA/W | 0.5 | 0.3 | Air/Water | 220V/50Hz/1N | 2.15 | 1000×850×1680 | With Ice Bin |
| NPW-F0.6-FA/W | 0.6 | 0.6 | Air/Water | 380V/50Hz/3N | 2.7 | 1220×1180×2030 | With Ice Bin |
| NPW-F0.8-FA/W | 0.8 | 0.6 | Air/Water | 380V/50Hz/3N | 3.5 | 1220×1180×2030 | With Ice Bin |
| NPW-F1.2-FA/W | 1.2 | 0.6 | Air/Water | 380V/50Hz/3N | 5.6 | 1220×1180×2130 | With Ice Bin |
| NPW-F1.7-FA/W | 1.7 | 0.8 | Air/Water | 380V/50Hz/3N | 7.8 | 1320×1200×2030 | With Ice Bin |
| NPW-F2.2-FA/W | 2.2 | 0.8 | Air/Water | 380V/50Hz/3N | 9.3 | 1320×1200×2130 | With Ice Bin |
| NPW-F2.7-FA/W | 2.7 | 1.2 | Air/Water | 380V/50Hz/3N | 10.1 | 1500×1200×2800 | With Ice Bin |
| NPW-F3.2-FA/W | 3.2 | 1.2 | Air/Water | 380V/50Hz/3N | 12.8 | 1500×1200×2800 | With Ice Bin |
| NPW-F4.0-FA/W | 4 | Without Ice Bin | Air/Water | 380V/50Hz/3N | 16.5 | 1900×1700×1260 | Without Ice Bin |
| NPW-F5.0-FA/W | 5 | Without Ice Bin | Air/Water | 380V/50Hz/3N | 20.1 | 1900×1700×1260 | Without Ice Bin |
| NPW-F6.0-FA/W | 6 | Without Ice Bin | Air/Water | 380V/50Hz/3N | 26 | 1900×1700×1260 | Without Ice Bin |
| NPW-F8.0-FA/W | 8 | Without Ice Bin | Air/Water | 380V/50Hz/3N | 31.6 | 2500×2000×1560 | Without Ice Bin |
| NPW-F10.0-FA/W | 10 | Without Ice Bin | Air/Water | 380V/50Hz/3N | 38.5 | 2500×2000×1700 | Without Ice Bin |
| NPW-F15.0-FA/W | 15 | Without Ice Bin | Air/Water | 380V/50Hz/3N | 56.2 | 3100×2160×1865 | Without Ice Bin |
| NPW-F20.0-FW/E | 20 | Without Ice Bin | Water/Evaporator | 380V/50Hz/3N | 69 | 3100×2160×2050 | Without Ice Bin |
| NPW-F25.0-FW/E | 25 | Without Ice Bin | Water/Evaporator | 380V/50Hz/3N | 88 | 3100×2160×2265 | Without Ice Bin |
| NPW-F30.0-FW/E | 30 | Without Ice Bin | Water/Evaporator | 380V/50Hz/3N | 95 | 3880×2140×2400 | Without Ice Bin |
Seawater Flake Ice Machine On Board
Seawater flake ice machine on board with capacity from 0.5T/24h to 6T/24h, using seawater directly for ice making.
| Model | Capacity (T/24h) | Power (kW) | Power Supply | Refrigerant |
|---|---|---|---|---|
| NPW-FS0.5 | 0.5 | 2.6 | 220V/50Hz/1N | R404A |
| NPW-FS0.75 | 0.75 | 3.5 | 380V/50Hz/3N | R404A |
| NPW-FS1.2 | 1.2 | 4.5 | 380V/50Hz/3N | R404A |
| NPW-FS1.7 | 1.7 | 6.3 | 380V/50Hz/3N | R404A |
| NPW-FS2.2 | 2.2 | 8 | 380V/50Hz/3N | R404A |
| NPW-FS3.2 | 3.2 | 10.8 | 380V/50Hz/3N | R404A |
| NPW-FS5.0 | 5 | 17 | 380V/50Hz/3N | R404A |
| NPW-FS6.0 | 6 | 20.2 | 380V/50Hz/3N | R404A |
Fluid Ice Machine
Fluid ice machine with capacity from 1T/24h to 20T/24h, designed for ocean fishing vessels, using seawater directly.
| Model | Capacity (T/24h) | Installed Capacity (kW) | Unit N.W (kg) | Power Supply | Dimensions (mm) |
|---|---|---|---|---|---|
| NPW-S1.0-FW | 1 | 2.2 | 260 | 380V/50Hz/3N | 680×700×1450 |
| NPW-S3.0-FW | 3 | 6.8 | 320 | 380V/50Hz/3N | 800×700×1580 |
| NPW-S5.0-FW | 5 | 14 | 500 | 380V/50Hz/3N | 1200×900×1580 |
| NPW-S10.0-FW | 10 | 25 | 960 | 380V/50Hz/3N | 1500×1000×1900 |
| NPW-S15.0-FW | 15 | 33 | 1250 | 380V/50Hz/3N | 1650×1200×1900 |
| NPW-S20.0-FW | 20 | 48 | 1450 | 380V/50Hz/3N | 1650×1200×1900 |
Tube Ice Machine
Tube ice machine with capacity from 1T/24h to 30T/24h, producing hollow tube ice with high hardness and no powder.
| Model | Capacity (T/24h) | Refrigerant | Operating Power (kW) | Installation Power (kW) | Running Weight (kg) | Dimensions (L×W×H) (mm) |
|---|---|---|---|---|---|---|
| NPW-T1.0-FA/W | 1 | R22/R404A | 4.5 | 6 | 650 | 1320×950×1800 |
| NPW-T2.0-FA / NPW-T2.0-FW | 2 | R22/R404A | 7.8 / 7.4 | 12 / 8 | 805 / 780 | 2250×1550×2180 / 1550×925×2180 |
| NPW-T3.0-FA / NPW-T3.0-FW | 3 | R22/R404A | 9.2 / 9 | 15 / 8.5 | 895 / 795 | 2250×1550×2180 / 1550×925×2180 |
| NPW-T5.0-FA / NPW-T5.0-FW | 5 | R22/R404A | 14.5 / 14 | 20 / 15 | 1650 / 1560 | 3000×1600×2200 / 1600×1200×2180 |
| NPW-T10.0-FW | 10 | R22/R404A | 32 | 40 | Unit 1450; Evaporator 1890; Cooling Tower 540 | 1800×1400×1740; 1200×1200×3500; Φ1580×2205 |
| NPW-T15.0-FW | 15 | R22/R404A | 50 | 65 | Unit 1960; Evaporator 2150; Cooling Tower 670 | 2700×2000×2250; 1500×1200×4365; Φ2000×2410 |
| NPW-T20.0-FW/E | 20 | R22/R404A | 65 | 80 | Unit 2350; Evaporator 2450; Cooling Tower 1120 | 2800×2200×2970; 1500×1200×4657; Φ2175×2565 |
| NPW-T25.0-FW/E | 25 | R22/R404A | 75 | 100 | Unit 2690; Evaporator 2750; Cooling Tower 1120 | 3000×2200×2500; 2000×1800×5575; Φ2175×2565 |
| NPW-T30.0-FW/E | 30 | R22/R404A | 95 | 125 | Unit 2720; Evaporator 2968; Cooling Tower 1300 | 3000×2200×2500; 2000×1800×6075; Φ2650×2645 |
Large Edible Cube Ice Machine
Large edible cube ice machine with capacity from 2T/24h to 10T/24h, producing edible cube ice.
| Model | Capacity (T/24h) | Rated Power (kW) | Water Pump (kW) | Cooling Pump (kW) | Cooling Tower Fan (kW) | Dimensions (W×H×L) (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| NPW-C2.0 | 2.0 | 7.1 | 0.37 | 1.5 | 0.55 | 1630×1600×1686 | 1000 |
| NPW-C3.0 | 3.0 | 9.6 | 0.37 | 2.2 | 0.75 | 1980×1630×1840 | 1200 |
| NPW-C5.0 | 5.0 | 17.5 | 0.55 | 2.2 | 1.5 | 2890×1780×1840 | 1600 |
| NPW-C8.0 | 8.0 | 28.6 | 1.15 | 4 | 1.5 | 4820×1780×2000 | 2500 |
| NPW-C10.0 | 10.0 | 38 | 1.15 | 4 | 1.5 | 5730×1780×2000 | 3000 |
Aluminum Direct Cooling Block Ice Machine
Aluminum direct cooling block ice machine with capacity from 0.5T to 30T, using aerospace aluminum alloy for high heat transfer efficiency.
| Model | Capacity (T) | Refrigerant | Cooling Method | Average Power (kW) | Installing Power (kW) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| NPW-B0.5 | 0.5 | R22/R404A | Air | 2.0 | 2.5 | 1500×820×1830 |
| NPW-B1.0 | 1.0 | R22/R404A | Air | 4.0 | 6 | 1800×1200×2000 |
| NPW-B2.0 | 2.0 | R22/R404A | Air | 8.9 | 10 | 3000×1600×2000 |
| NPW-B3.0 | 3.0 | R22/R404A | Air/Water | 11.8 | 15 | 3600×1600×2200 |
| NPW-B5.0 | 5.0 | R22/R404A | Air/Water | 21.6 | 25 | 1400×1000×1250; 4800×1000×2250; Φ1380×2170 |
| NPW-B10.0 | 10.0 | R22/R404A | Air/Water | 35.3 | 50 | Containerized: 1219×2438×2896 |
| NPW-B15.0 | 15.0 | R22/R404A | Water | 59.1 | 75 | Containerized |
| NPW-B20.0 | 20.0 | R22/R404A | Water | 86 | 105 | Containerized |
| NPW-B25.0 | 25.0 | R22/R404A | Water/Evaporator | 95 | 120 | Containerized |
| NPW-B30.0 | 30.0 | R22/R404A | Water/Evaporator | 115 | 150 | Containerized |
Salt-Water Block Ice Machine
The salt-water block ice machine can be customized for different block ice sizes and colors, producing ice at -5°C.
| Parameter | Value |
|---|---|
| Ice Weight | 5kg, 10kg, 15kg, 20kg, 25kg, 30kg, 50kg, 100kg (Customizable) |
| Ice Temperature | -5°C |
| Evaporator Coil | Titanium tube, rust-proof |
| Protection Systems | Compressor high/low pressure, oil pressure, low water level, low water flow |
| Continuous Operation | Above 30,000 hours |
Bag Ice Machine
Bag ice machine with capacity from 1T/24h to 5T/24h, using food-grade plastic bags as ice molds.
| Model | Capacity (T/24h) | Rated Power (kW) | Cooling Pump (kW) | Cooling Tower Fan (kW) | Dimensions (W×H×L) (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| NPW-BAG1 | 1 | 3.95 | 1.5 | 0.37 | 1750×1670×750 | 500 |
| NPW-BAG2 | 2 | 7.12 | 1.5 | 0.55 | 2330×1670×750 | 780 |
| NPW-BAG3 | 3 | 9.68 | 2.2 | 0.75 | 2870×1670×750 | 950 |
| NPW-BAG4 | 4 | 14.58 | 2.2 | 0.75 | 3400×1800×800 | 1150 |
| NPW-BAG5 | 5 | 18.8 | 2.2 | 1.5 | 3950×1800×800 | 1368 |
Flake Ice Machine Evaporator
Flake ice machine evaporator with capacity from 0.3T/24h to 30T/24h, suitable for different sizes of flake ice machines.
| Model | Capacity (T/24h) | Refrigerating Capacity (kW) | Evaporator Size (mm) | Retarder Power (kW) | Pump Power (kW) | Drop Ice Diameter (Φ) | Refrigerant | N.W (kg) |
|---|---|---|---|---|---|---|---|---|
| NPW-FE0.3 | 0.3 | 2.2 | Φ400×540 | 0.18 | 0.003 | 72 | R404A/R22 | 45 |
| NPW-FE0.5 | 0.5 | 3.7 | Φ400×640 | 0.18 | 0.009 | 72 | R404A/R22 | 56 |
| NPW-FE0.6 | 0.6 | 4.4 | Φ540×783 | 0.25 | 0.009 | 420 | R404A/R22 | 145 |
| NPW-FE1.2 | 1.2 | 7.8 | Φ540×883 | 0.25 | 0.009 | 420 | R404A/R22 | 160 |
| NPW-FE1.7 | 1.7 | 11 | Φ658×975 | 0.37 | 0.012 | 550 | R404A/R22 | 175 |
| NPW-FE2.2 | 2.2 | 14.3 | Φ658×1075 | 0.37 | 0.012 | 550 | R404A/R22 | 286 |
| NPW-FE2.7 | 2.7 | 17.1 | Φ658×1175 | 0.37 | 0.012 | 550 | R404A/R22 | 316 |
| NPW-FE3.2 | 3.2 | 20.3 | Φ658×1275 | 0.37 | 0.012 | 550 | R404A/R22 | 348 |
| NPW-FE5.0 | 5 | 34 | Φ967×1302 | 0.55 | 0.018 | 750 | R404A/R22 | 445 |
| NPW-FE8.0 | 8 | 50 | Φ1256×1474 | 1.5 | 0.018 | 1050 | R404A/R22 | 658 |
| NPW-FE10.0 | 10 | 68 | Φ1256×1674 | 1.5 | 0.018 | 1050 | R404A/R22 | 855 |
| NPW-FE15.0 | 15 | 98 | Φ1600×2130 | 2.2 | 0.075 | 1450 | R404A/R22 | 1355 |
| NPW-FE20.0 | 20 | 130 | Φ1600×2470 | 2.2 | 0.075 | 1450 | R404A/R22 | 2100 |
| NPW-FE25.0 | 25 | 165 | Φ1900×2476 | 2.2 | 0.075 | 1750 | R404A/R22 | 2300 |
| NPW-FE30.0 | 30 | 215 | Φ1900×2726 | 2.2 | 0.075 | 1750 | R404A/R22 | 2940 |
Industrial Water Chiller
Industrial water chiller available in cabinet type, screw type, and water curtain type.
| Parameter | Value |
|---|---|
| Type | Cabinet Chiller, Screw Chiller, Water Curtain Chiller |
| Cooling Capacity | Customizable (multiple models available) |
| Temperature Range | 7°C / -5°C / -15°C |
| Compressor | World-renowned brand fully hermetic scroll compressor |
| Refrigerant | Environmentally friendly refrigerant |
| Power Supply | 3P-380V-50Hz |
| Customization | Explosion-proof, strong acid/alkali, ultra-low temperature, special voltage, T3 conditions |
Ice Delivery System & Rake Type Freezer
The ice delivery system includes screw delivery, conveyor delivery and roots blower delivery, and the rake type freezer is available in 18T, 30T, 40T, 50T, 60T storage capacities.
| Parameter | Value |
|---|---|
| Delivery System | Screw Delivery System, Conveyor Delivery, Roots Blower |
| Rake Type Freezer Capacity | 18T, 30T, 40T, 50T, 60T |
| Application | Ice storage and delivery for various ice types |
industrial ice machine · flake ice machine · tube ice machine · commercial ice maker · ice machine for poultry slaughterhouse · seafood ice machine · food processing ice machine · concrete cooling ice machine · seawater flake ice machine for fishing boat · ice maker for supermarket seafood display
One Platform Under Every Series
Whatever ice type you choose, the machine underneath is the same food-grade, serviceable platform.
Power Supply
220V / 380V, 50Hz / 60Hz
Refrigerant
R22 / R404A / R717 (optional)
Material
Stainless steel body, food-grade contact surfaces
Control
PLC / micro-computer control
Cooling Method
Air-cooled / water-cooled / evaporative
Custom Build
Capacity, ice type, voltage, seawater ice making, containerized
Eight Reasons to Put NPW on Your Line
Matched Selection
Ice type and capacity matched to your cooling link — not to a catalogue.
Complete Ice Range
Flake, fluid, tube, cube, block and bag ice from one supplier.
0.3–30 t/24h
From a small shop unit to a 12,000 BPH slaughter line package.
Hygienic Design
Food-grade stainless steel contact surfaces, HACCP / GMP friendly.
Stable Output
Reliable ice production in hot and humid plants, 24/7 duty.
Energy Efficient
Optimised refrigeration circuits keep the running cost down.
Flexible Installation
Floor standing, containerized or installed on board.
Global Service
English documentation, remote guidance and spare parts supply.
Tell Us These 8 Points — We Size the Machine
Ice machine selection is not a catalogue lookup. Give our engineers the duty and the site, and you get a matched proposal instead of a guess.
Send Your Ice Demand
Industry, cooling link, daily capacity and site conditions — through the form below or WhatsApp.
Engineer Sizing
Our engineers match the ice type, model, condenser and ice storage to your real duty.
Proposal & Quotation in 24h
You receive the model list, layout suggestion and factory-direct price within 24 business hours.
Your Ice Duty Checklist
- Industry: Poultry / Seafood / Meat & Food / Bakery & Restaurant / Supermarket / Concrete & Chemical / Medical & Hotel
- Cooling link: pre-chilling / preservation / cooling / display / transport
- Daily ice demand: tons per 24h or kg per 24h
- Ice type: flake / tube / cube / block / bag / fluid
- Power supply: 220V / 380V, 50Hz / 60Hz
- Cooling method: air-cooled / water-cooled / evaporative
- Installation site: indoor / outdoor / on board / containerized
- Country & city: for climate and shipping
Ice Machine Questions, Answered
QWhat is the difference between flake ice and tube ice — which one do I need?
Flake ice is dry, flat and non-clumping with a very large contact area, so it cools product fast. It is the right choice for poultry pre-chilling, seafood preservation, meat mixing and concrete cooling. Tube ice is a hollow, clear cylinder with high hardness and slow dilution — it suits beverage, bakery, hotel and restaurant display. Tell us the cooling link and NPW engineers will match the ice type for you.
QHow big a flake ice machine does a 1,000 BPH poultry slaughter line need?
It depends on the slaughter capacity and the pre-chilling process. As a rule of thumb a 1,000 BPH poultry line is paired with a 3–5 t/24h flake ice machine, and lines above 3,000 BPH with 10–20 t/24h. Send us your spiral pre-cooler parameters and NPW will calculate the exact ice duty.
QCan a fishing boat make ice directly from seawater?
Yes. The NPW-FS seawater flake ice machine and the NPW-S fluid ice machine make ice directly from seawater, which removes the fresh water supply problem on board. Marine models run at 0.5–6 t/24h (FS) and 1–20 t/24h (S) and are built for the offshore environment.
QDo I need a cold room to store the ice?
Not necessarily. Small flake ice machines are delivered with an integrated ice bin (NPW-F0.3 to NPW-F3.2), and bag ice is sealed for storage. For large daily output or long holding times we add a rake type freezer with 18–60 t storage (NPW-RAKE) or an insulated ice bunker.
QDoes ice output drop in a high-temperature plant?
There is some influence from ambient conditions. NPW selects a water-cooled or evaporative condenser for your local climate, or oversizes the condenser, so the machine keeps its rated output at high ambient temperature.
QHow much is an ice machine for a food factory, and can it be customized?
Price follows the ice type, daily capacity and configuration (condenser type, voltage, ice bin, materials). NPW supports custom builds from 0.3 to 30 t/24h in every ice type, with custom voltage, seawater ice making and containerized plants. Send your requirement and you will receive a factory-direct quotation within 24 hours.
QAre NPW machines plug-and-play, or do they require on-site installation?
Compact units up to 5 t/24h are completely assembled, pressure-tested and refrigerant-charged before dispatch — connect water and electricity to run immediately. For larger containerized or turnkey industrial setups (10–30 t/24h), NPW provides detailed pipeline diagrams, remote video commissioning, and dispatchable engineers for on-site commissioning and training.
QWhat do I need to tell NPW to get a selection proposal?
Your industry, the cooling link, the daily ice demand (t/24h or kg/24h), the ice type, the power supply, the cooling method, the installation site (indoor / outdoor / on board / container) and your city. That is enough for our engineers to size the machine and send a proposal.
Get Your Ice Making Solution
Leave your ice demand and site conditions — NPW engineers will select the ice type and model and send a detailed quotation within 24 hours.
Tell Us About Your Ice Demand
- Ice duty: tons or kg per 24h
- Industry & cooling link: poultry / seafood / meat / bakery / supermarket / concrete / medical
- Ice type: flake / tube / cube / block / bag / fluid
- Power supply: 220V / 380V, 50Hz / 60Hz
- Cooling & installation: air / water · indoor / outdoor / on board / container
- Destination: country and city
Talk To Your Engineer
Every NPW solution is handled end to end by one named engineer — capacity sizing, layout drawings, configuration lists and shipping schedules. Reach out directly and you will speak to the person responsible for your line, not a call centre.
