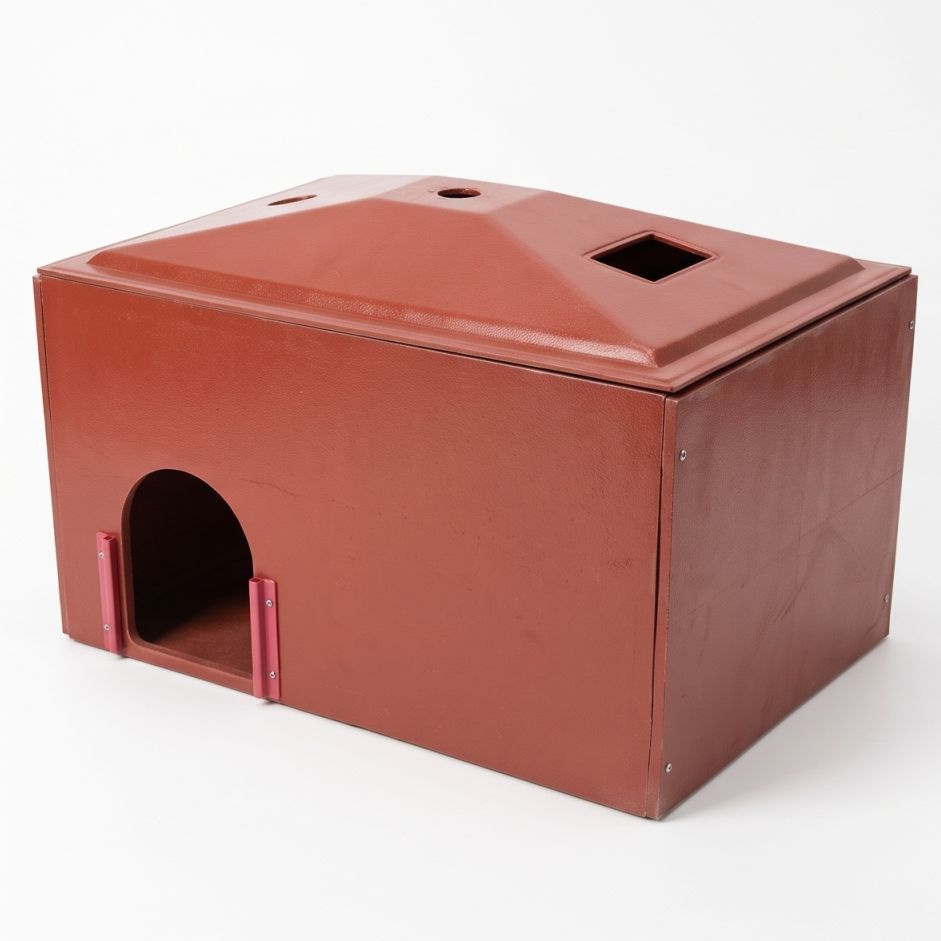

Carbon-fiber heating elements sealed inside heavy-duty BMC composite floor pads, paired with mold-injected insulated creep boxes for optimal piglet micro-climates. The smart composite electric heating plate and creep box series encapsulates carbon-fiber heating wire inside high-strength BMC composite material, insulated, waterproof and bite/scratch resistant, combined with engineering plastic / composite creep boxes to create the best micro-environment for piglets.
| Parameter | Single Creep Pad (1.1×0.6m) | Double Long Creep Pad (2.2×0.6m) | Composite Creep Box | Plastic Creep Box |
|---|---|---|---|---|
| Model Code | NPW-EHP-1106 | NPW-EHP-2206 | NPW-PCB-01 | NPW-PCB-02 |
| Dimensions (L×W×H) | 1100 × 600 × 35 mm | 2200 × 600 × 60 mm | 1050 × 620 × 600 mm | 1050 × 620 × 600 mm |
| Heating Core | Carbon Fiber Heating Wire Matrix | Carbon Fiber Dual-Zone Circuit | — (Accommodates Heating Plate) | — (Accommodates Heating Plate) |
| Rated Electrical Power | 120 W (220 VAC, 50 Hz) | 240 W (Dual Control, 220 VAC) | — | — |
| Surface Temperature | Automatic Thermostatic Control at 30 ℃ ~ 38 ℃ (Adjustable) | Thermostatic Control 30 ~ 38 ℃ | Thermal Insulation | Thermal Insulation |
| Pad Shell Material | High-Strength Cast BMC Resin (Anti-Slip Texture, Flame Retardant) | High-Strength Cast BMC Resin | Heavy BMC Composite Sheet | Virgin Engineering Plastic (PP/PE) |
| Waterproof & Safety | IP68 Sealed Enclosure (Steam and water-spray washdown proof) | IP68 Sealed Enclosure | Top Access Inspection Hatch | Flip-Open Inspection Lid |
| Lamp Socket Port | — | — | Pre-drilled for Infrared Lamp | Pre-drilled for Infrared Lamp |
| Target Application | Farrowing Pen Piglet Creep Area | Dual-Pen Nursery Partitions | Piglet Sleeping Zone | Piglet Sleeping Zone |
