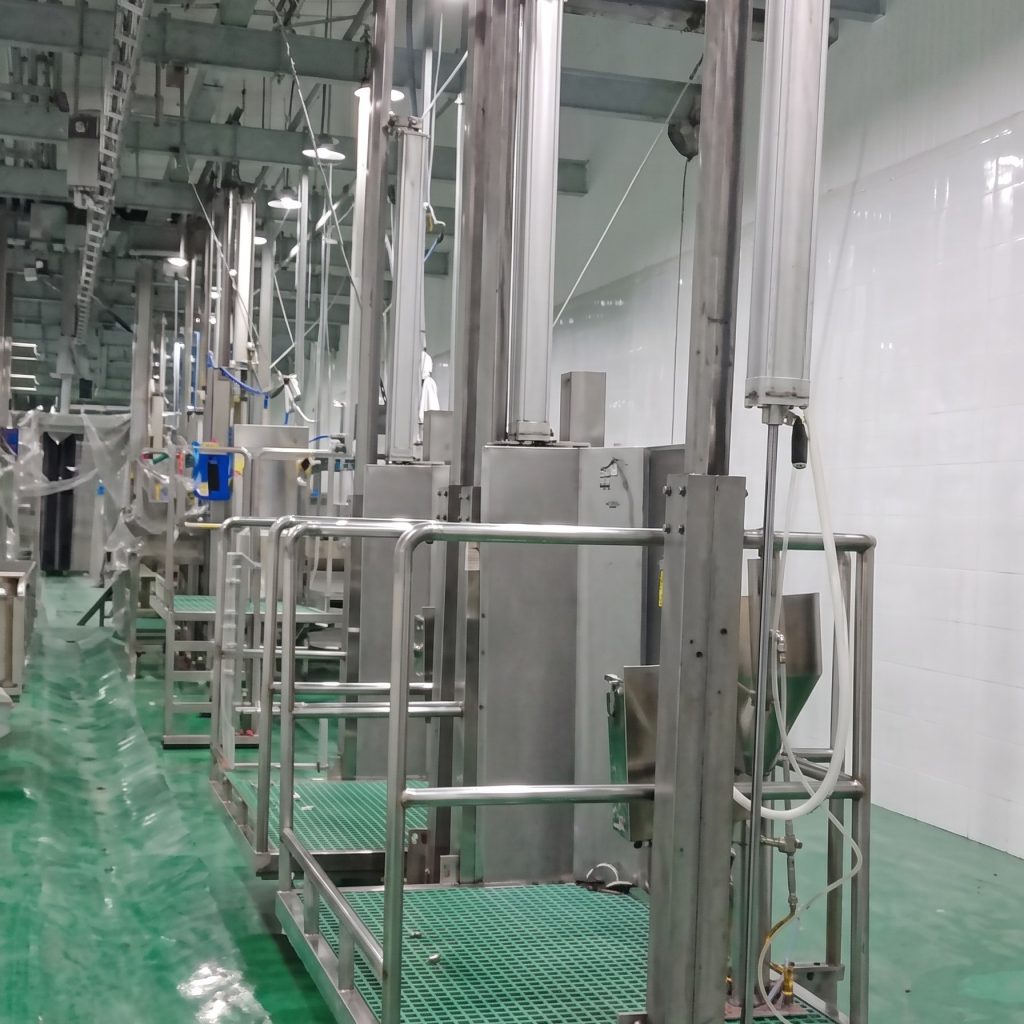

Ergonomic vertical lifting platforms designed for operators to perform pre-skinning, splitting, chest opening, and evisceration on cattle carcasses of various heights.
| Parameter | Single-Column Pneumatic Platform | Double-Column Hydraulic Platform |
|---|---|---|
| Model Code | NPW-CLP-1P | NPW-CLP-2H |
| Vertical Lifting Stroke | 1200 ~ 1800 mm | 1500 ~ 2200 mm |
| Drive Mechanism | Heavy-Duty Pneumatic Cylinder | High-Pressure Hydraulic Station (External) |
| Platform Load Capacity | Up to 250 kg | Up to 500 kg (Supports 2 operators) |
| Foot Switch Control | Dual Foot Pedal (Hands-Free Up / Down Operation) | Dual Foot Pedal (Hands-Free Up / Down Operation) |
| Working Air Pressure | 0.6 ~ 0.8 MPa | — |
| Hydraulic Power (kW) | — | 2.2 kW ~ 3.7 kW (380 VAC, 50 Hz) |
| Safety Features | Mechanical Anti-Drop Interlock & Perimeter Guardrail | Safety Fall Arrest Valves & Anti-Slip Stainless Steel Grating |
| Structural Material | 100% Food-Grade SUS 304 Stainless Steel | 100% Food-Grade SUS 304 Stainless Steel |
| Integrated Amenities | Includes Knife Sanitizer & Apron Wash Basin | Includes Knife Sanitizer, Apron Cleaner & Water Spray Gun |
| Target Workstations | Pre-Skinning, Leg Transfer, Neck Cutting | Carcass Splitting, Evisceration, Final Trimming |
