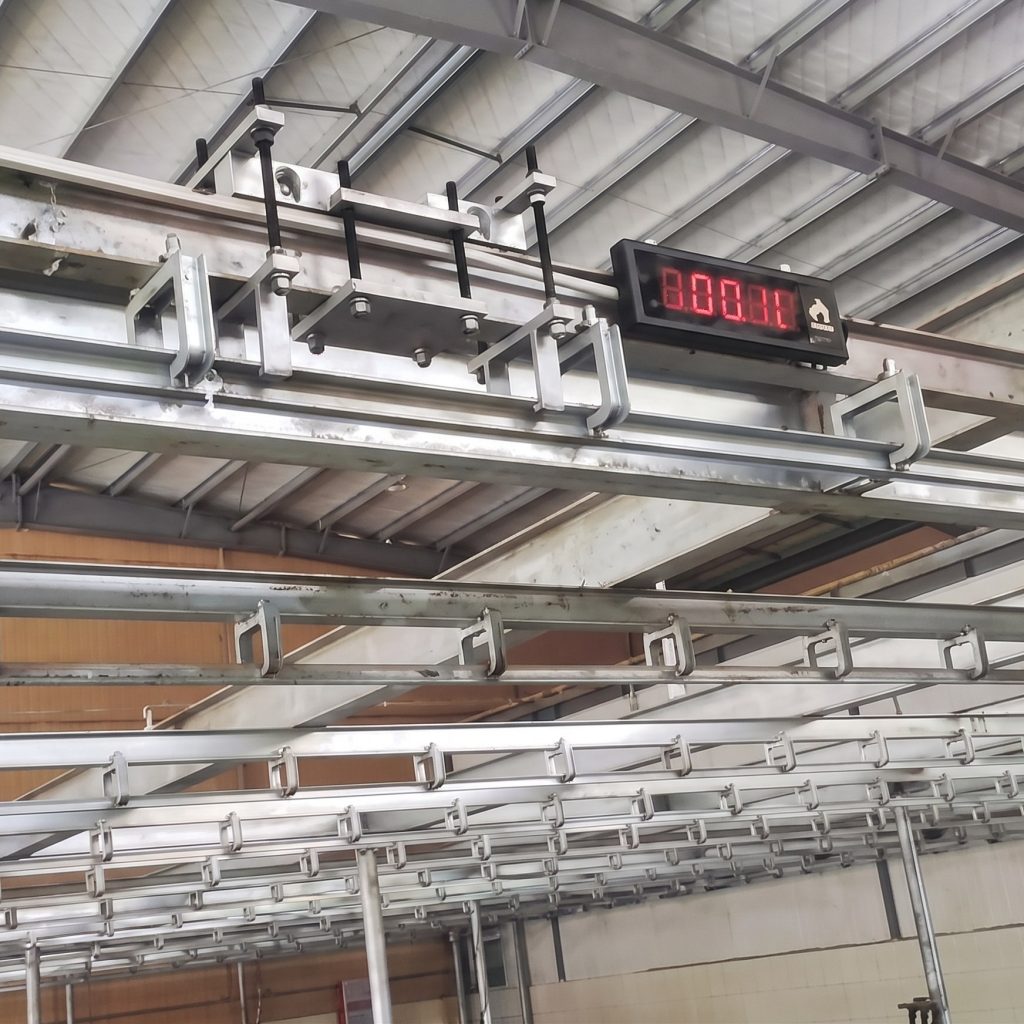

Precision in-line overhead track scale for seamless dynamic and static carcass weighing on tubular and twin rail slaughter conveyor lines.
| Parameter | Technical Specification |
|---|---|
| Model Number | NPW-ETS Series |
| Max Weighing Range | 1,000 kg ~ 2,000 kg (Safe Overload: 150%) |
| Weighing Accuracy | OIML Class III Standard (Division Value: 0.2 ~ 0.5 kg) |
| Operating Modes | Dynamic (In-Motion Weighing on Conveyor) & Static Weighing Selectable |
| Track Profile Compatibility | Standard Tubular Pipe Rail (Φ60 / Φ76 mm) or Flat Twin Rail Overhead Track |
| Weighing Bridge Length | Standard 800 mm ~ 1200 mm Rail Section |
| Load Cell Specification | IP68 Hermetically Sealed Stainless Steel Shear Beam Load Cells (x4) |
| Indicator & Communication | IP67 Stainless Steel Terminal with RS485 / Modbus / Ethernet to Plant MES |
| Material Finish | Full SUS 304 Stainless Steel Construction for High-Pressure Washdown |
