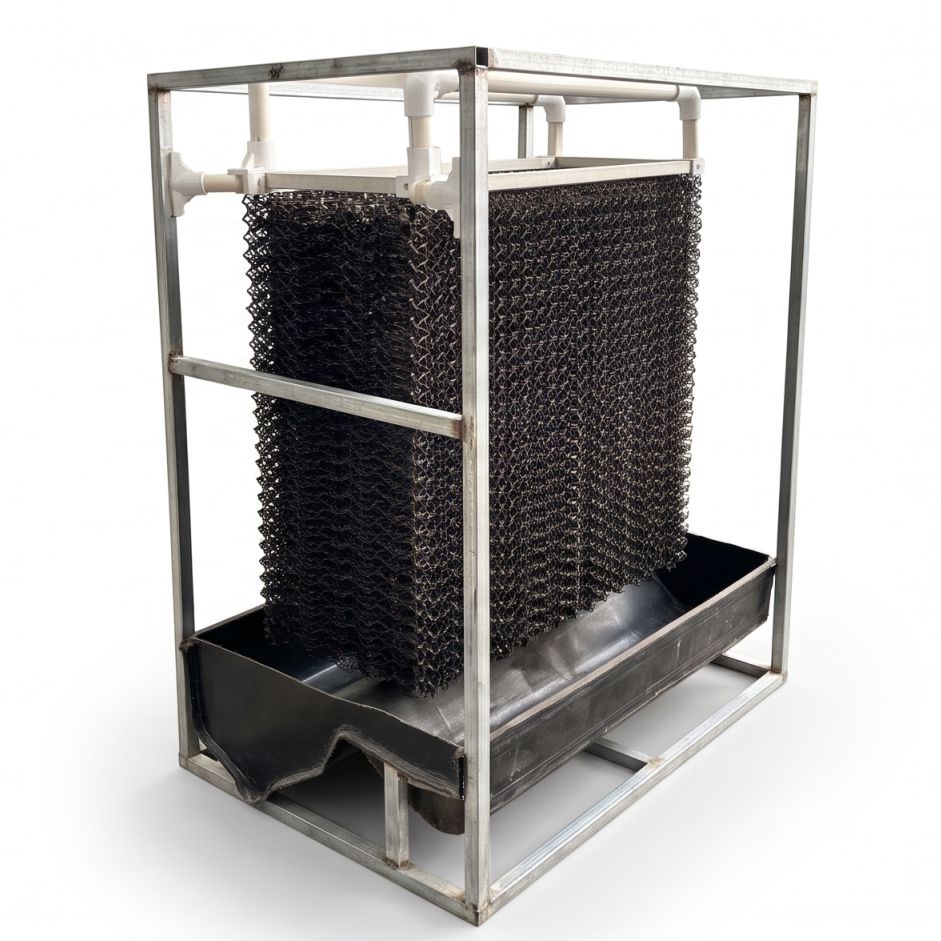

High-efficiency evaporative cellulose cooling pads housed in heavy-duty aluminum/stainless frames, paired with integrated PP/PVC water gutters and drainage catchments. The evaporative cooling pad and engineered PVC/PP circulating water channel system uses high-absorbency corrugated virgin wood-pulp paper with aluminum alloy or stainless steel outer frames and an integrated stamped anti-scaling drain gutter, cooling quickly while preventing algae and mildew.
| Parameter | Technical Specification |
|---|---|
| Model Number | NPW-ECP Series |
| Pad Thickness Options | 100 mm / 150 mm (High-Efficiency 7090 / 5090 Flute Honeycomb Configuration) |
| Pad Material | Imported Hydrophobic Virgin Kraft Wood Pulp Paper (High Evaporative Cooling Rate) |
| Frame Material Options | Heavy Extruded Aluminum Alloy Frame / SUS 304 Stainless Steel Casing |
| Water Gutter System | Custom Extruded PVC Top Distribution Pipe & Bottom Return Gutter Systems |
| Smart Catchment Sink | Molded Polypropylene (PP) Intelligent Drainage Tank (450×400×300 mm / 600×250×680 mm) |
| Cooling Efficiency | Drops intake barn temperature by 5 ℃ – 12 ℃ depending on ambient relative humidity |
| Anti-Algae Coating | Optional Black Anti-Microbial & Anti-Algae External Protective Barrier Coating |
| Primary Deployment | Tunnel-Ventilated Swine Gestation Barns, Broiler Sheds, Greenhouse Halls |
