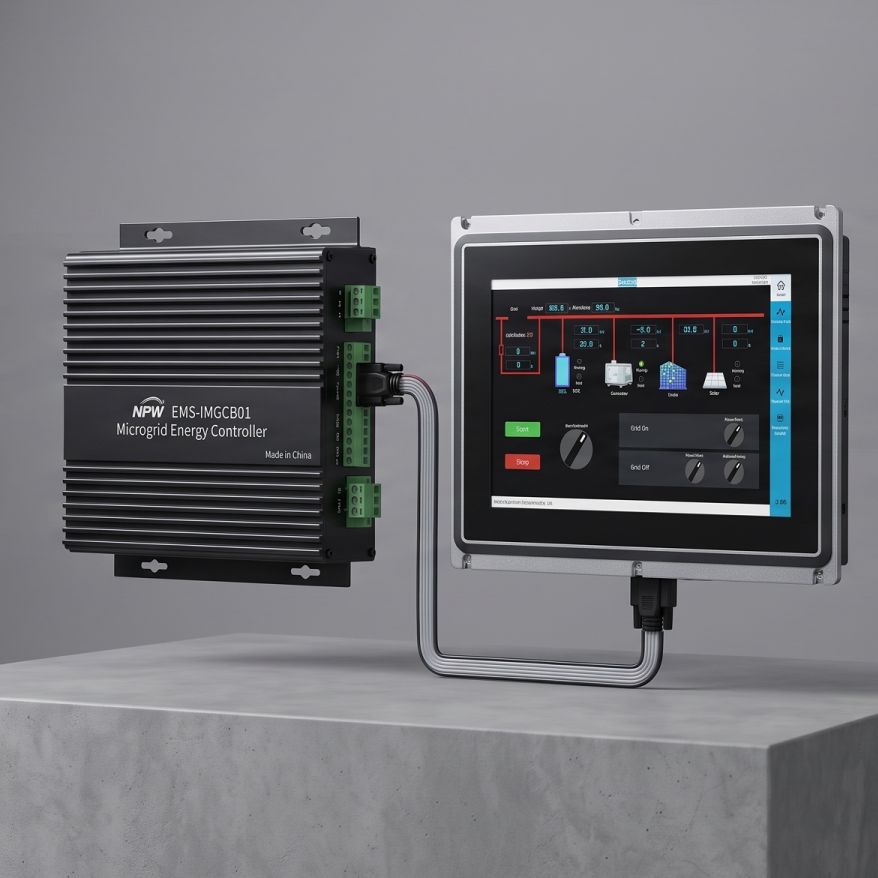

Industrial-grade microgrid energy storage controller equipped with a quad-core ARM processor and fully electrically isolated interfaces, featuring direct grid voltage/frequency sampling, digital inputs/outputs and cloud coordinated dispatch capability.
| Parameter | Technical Specification |
|---|---|
| Processor (CPU) | ARM Cortex-A7 Quad-Core @ 1.2GHz |
| Memory (RAM / ROM) | 1GB DDR3 / 8GB eMMC (Expandable) |
| Ethernet Ports | 2 Ports, RJ45 Interface, 100Mbps |
| RS485 Communication | 5 Channels, Magnetically Isolated; Configurable Baud Rate; 3.81mm Phoenix Terminal |
| CAN Communication | 2 Channels, Magnetically Isolated; Configurable Baud Rate; 3.81mm Phoenix Terminal |
| Digital Outputs (DO) | 5 Channels Relay Isolation; Contact: 5A 250VAC/30VDC; Action: <10ms; Return: <5ms |
| Digital Inputs (DI) | 5 Channels Optocoupler Isolation; DC 24V Standard Input; Rated Current: 1.1mA |
| Grid Sampling | AC Voltage 10 ~ 380V, Frequency 40 ~ 70Hz Direct Sampling |
| Real-Time Clock (RTC) | On-board Supercapacitor; Retains Time for ≥ 7 Days Without Power |
| Wireless Connectivity | 4G Full Netcom (GNSS Supported); Wi-Fi IEEE 802.11b/g/n |
| Power Supply | Rated 24VDC (±10% Fluctuation Tolerance) |
| External Display Support | Supports DVI / Ethernet Touch Screens: 7″, 10″, 15″ etc. |
| Dimensions (mm) | 190 × 170 × 46 mm |
