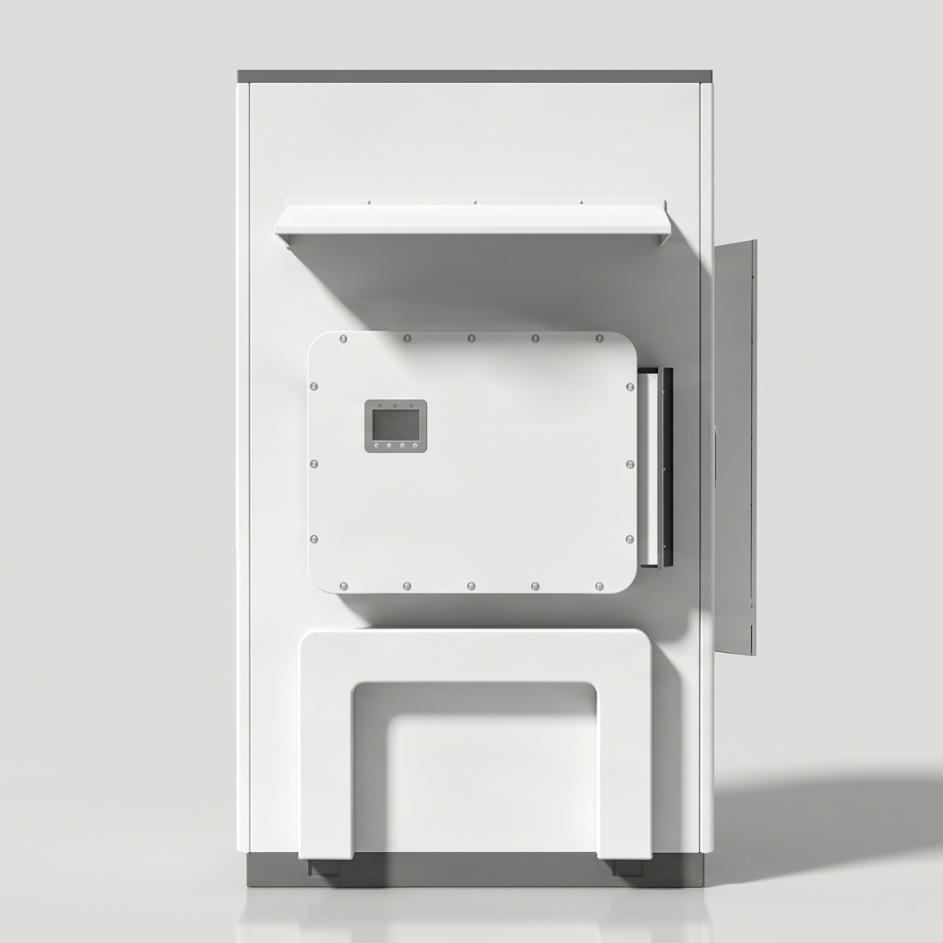

High-voltage commercial outdoor battery cabinet featuring integrated HVAC precision cooling, modular multi-pack configuration up to 768V, and active aerosol fire suppression.
Model Configurations:
| Model | Pack Configuration | Rated Voltage (V) | Operating Voltage Range (V) | Rated Energy (kWh) | Dimensions (D×W×H) mm | Weight (t) |
|---|---|---|---|---|---|---|
| GSS-PC4 | 4 Pack | 204.8 | 192.0 ~ 227.2 | 64.3 | 1300×750×1675 | 0.9 |
| GSS-PC5 | 5 Pack | 256.0 | 240.0 ~ 284.0 | 80.4 | 1300×750×1930 | 1.0 |
| GSS-PC6 | 6 Pack | 307.2 | 288.0 ~ 340.8 | 96.5 | 1300×750×2185 | 1.1 |
| GSS-PC7 | 7 Pack | 358.4 | 336.0 ~ 397.6 | 112.5 | 1300×1183×1420 | 1.5 |
| GSS-PC8 | 8 Pack | 409.6 | 384.0 ~ 454.4 | 128.6 | 1300×1183×1675 | 1.7 |
| GSS-PC9 | 9 Pack | 460.8 | 432.0 ~ 511.2 | 144.7 | 1300×1183×1675 | 1.8 |
| GSS-PC10 | 10 Pack | 512.0 | 480.0 ~ 568.0 | 160.8 | 1300×1183×1930 | 2.0 |
| GSS-PC11 | 11 Pack | 563.2 | 528.0 ~ 624.8 | 176.8 | 1300×1183×1930 | 2.1 |
| GSS-PC12 | 12 Pack | 614.4 | 576.0 ~ 681.6 | 192.9 | 1300×1183×2185 | 2.3 |
| GSS-PC13 | 13 Pack | 665.6 | 624.0 ~ 738.4 | 209.0 | 1300×1183×2185 | 2.4 |
| GSS-PC14 | 14 Pack | 716.8 | 672.0 ~ 795.2 | 225.1 | 1300×1183×2440 | 2.5 |
| GSS-PC15 | 15 Pack | 768.0 | 720.0 ~ 852.0 | 241.0 | 1300×1183×2440 | 2.6 |
Pack & System Parameters:
| Parameter | Value |
|---|---|
| Cell Type & Specification | LiFePO4 (LFP), 3.2V / 314Ah |
| Single Pack Configuration | 16S1P (51.2V / 16.07kWh) |
| Standard / Max Continuous Rate | 0.5P / 0.5P |
| Electrical Protections | DC Over-current, Short-circuit, Over-voltage, Over-temperature |
| Fire Suppression System | Aerosol / FK-5-1-12 (Perfluorohexanone) Optional |
| Cable Entry | Side Entry |
| Operating Temperature Range | Ambient: -20 ~ 50℃ (Derating > 45℃); Charge: 0 ~ 55℃; Discharge: -10 ~ 55℃ |
| Ingress Protection | IP54 (Key Components IP65) |
| Operating Altitude | Up to 5000m (Derating above 2000m) |
| Cooling System | Industrial Precision Air Conditioning |
