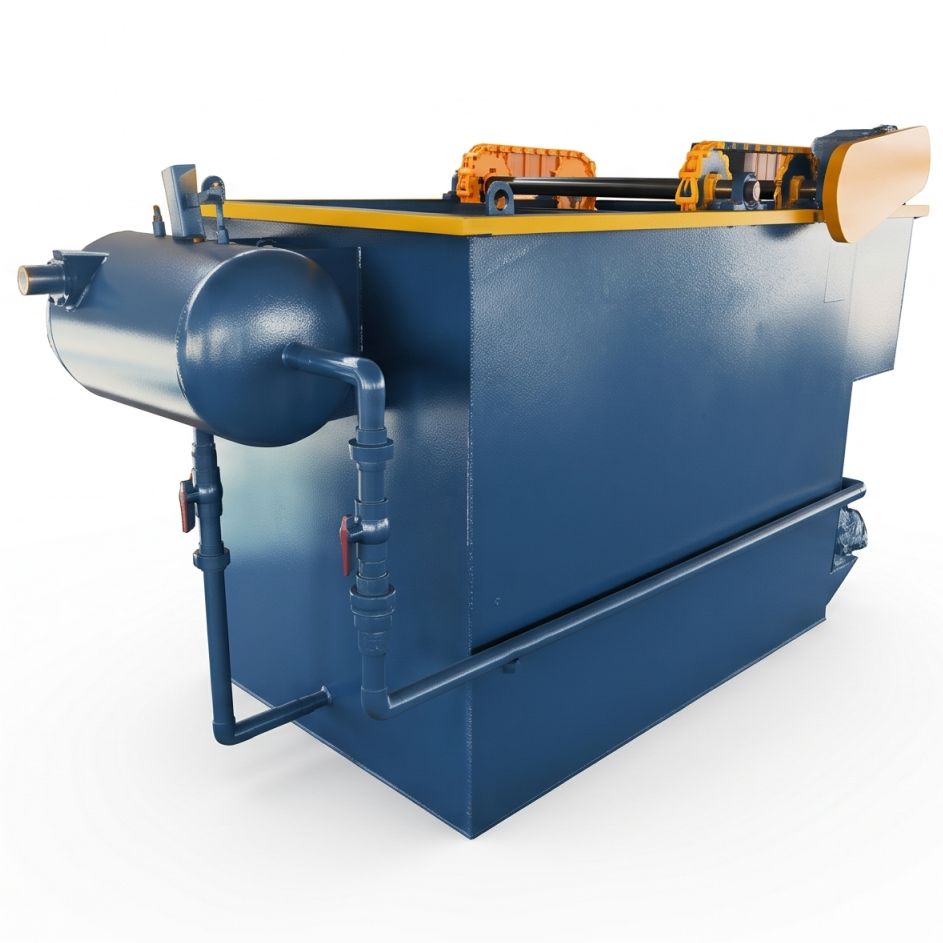

Industrial dissolved air flotation clarifiers with a treatment capacity of 4 ~ 300 m³/h, utilizing micro-bubbles to attach suspended flocs for rapid scum and sludge removal, greatly reducing SS, grease, COD and BOD concentrations in slaughterhouse and farm effluent.
| Parameter | CZY-10 | CZY-30 | CZY-60 | CZY-100 | CZY-300 |
|---|---|---|---|---|---|
| Rated Treatment Capacity | 8 ~ 10 m³ / h | 20 ~ 30 m³ / h | 50 ~ 60 m³ / h | 90 ~ 100 m³ / h | 280 ~ 300 m³ / h |
| Dissolved Air Flow Rate | 2 ~ 3 m³ / h | 6 ~ 10 m³ / h | 18 ~ 27 m³ / h | 30 ~ 35 m³ / h | 120 ~ 180 m³ / h |
| Main Pump Motor Power | 3.0 kW | 7.5 kW | 7.5 kW | 15.0 kW | 37.0 kW |
| Scum Skimmer Motor | 0.75 kW | 1.1 kW | 1.5 kW | 1.5 kW | 3.0 kW |
| Air Compressor Power | 1.5 kW | 1.5 kW | 2.2 kW | 3.0 kW | 5.5 kW |
| Dissolved Air Tank Spec | Φ 500 × 1512 mm | Φ 500 × 1512 mm | Φ 600 × 1880 mm | Φ 700 × 1980 mm | Φ 1000 × 2900 mm |
| SS Removal Efficiency | ≥ 90% ~ 95% | ≥ 90% ~ 95% | ≥ 90% ~ 95% | ≥ 90% ~ 95% | ≥ 90% ~ 95% |
| Overall Footprint (mm) | 3700 × 2100 × 2600 mm | 5480 × 2700 × 2600 mm | 8500 × 2900 × 2600 mm | 11750 × 3400 × 2600 mm | 19100 × 3400 × 2860 mm |
