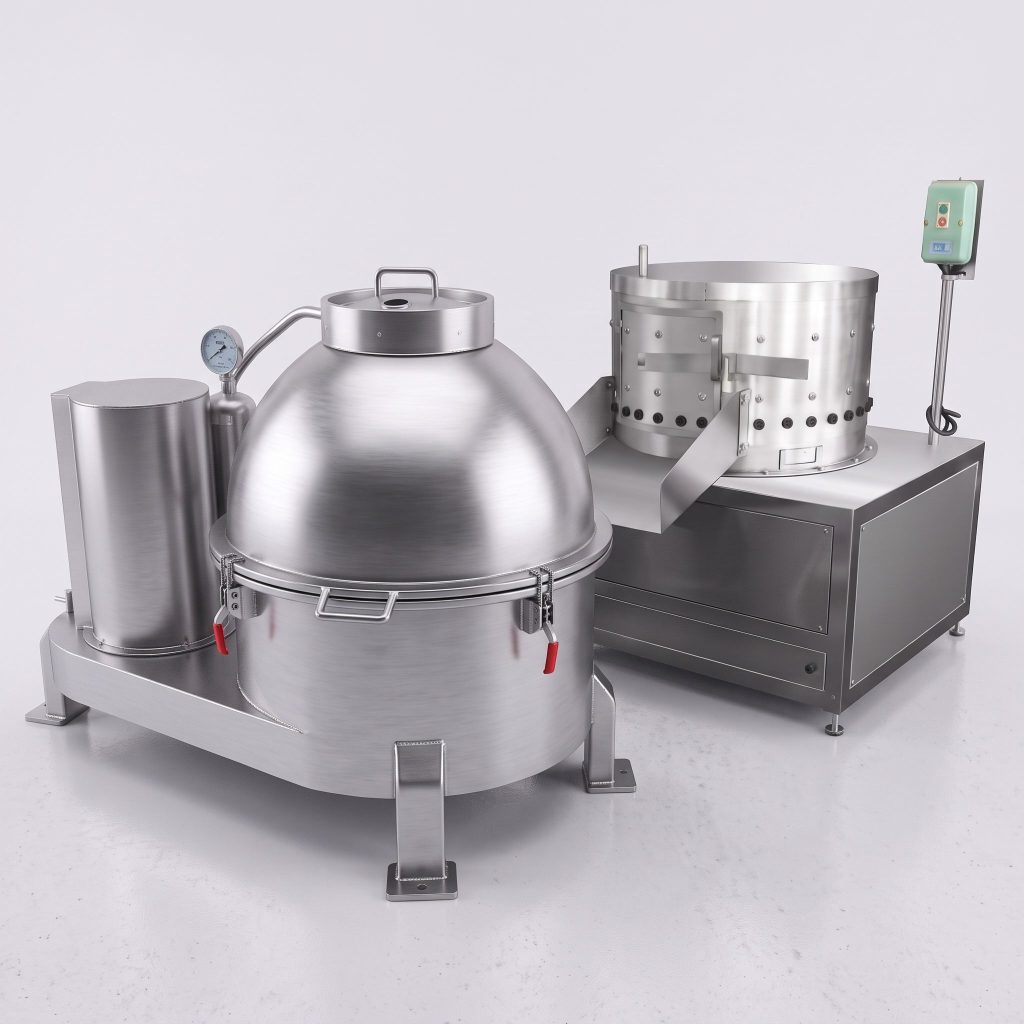

Centrifugal chamber tripe cleaner featuring rotating disc agitation and hot water jets to wash, scald, and remove black mucous membrane from beef bellies and omasum.
| Parameter | NPW-TWM-800 | NPW-TWM-1000 | NPW-TWM-1200 |
|---|---|---|---|
| Chamber Diameter (mm) | Φ800 mm | Φ1000 mm | Φ1200 mm |
| Batch Loading Capacity | 10 ~ 15 Cow Bellies / Batch | 20 ~ 25 Cow Bellies / Batch | 30 ~ 40 Cow Bellies / Batch |
| Wash Cycle Duration | 3 ~ 5 Minutes / Batch | 3 ~ 5 Minutes / Batch | 3 ~ 5 Minutes / Batch |
| Motor Power (kW) | 5.5 kW | 7.5 kW | 11.0 kW |
| Hot Water Connection | DN25 (Continuous 55 ~ 65 ℃) | DN32 (Continuous 55 ~ 65 ℃) | DN32 (Continuous 55 ~ 65 ℃) |
| Discharge Door Type | Pneumatic Automated Chute Door | Pneumatic Automated Chute Door | Pneumatic Automated Chute Door |
| Drum & Tank Material | Heavy SUS 304 Stainless Steel | Heavy SUS 304 Stainless Steel | Heavy SUS 304 Stainless Steel |
| Drainage Port | Large-Diameter Quick Flush Port | Large-Diameter Quick Flush Port | Large-Diameter Quick Flush Port |
| Machine Weight (kg) | Approx. 450 kg | Approx. 650 kg | Approx. 850 kg |
