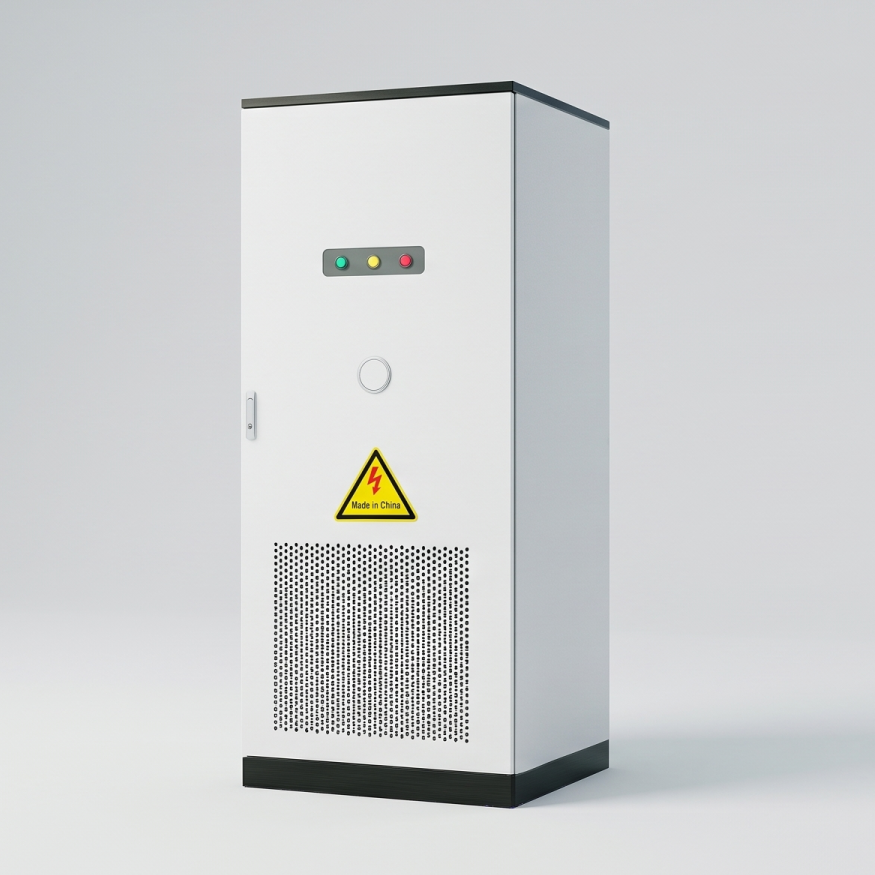

Industrial liquid-cooled energy storage cabinet engineered for grid peak-shaving, frequency regulation, and critical facility emergency backup power, featuring advanced liquid-cooled thermal management with self-evolving temperature algorithm, cabinet temperature difference ≤5℃, and energy conversion efficiency of 90%.
| Category | Parameter | Value |
|---|---|---|
| DC Battery Parameters | Cell Type & System Configuration | LFP 3.2V / 314Ah, 1P260S |
| DC Battery Parameters | Battery Voltage Range | 728V ~ 923V |
| DC Battery Parameters | Battery System Capacity | 261 kWh |
| DC Battery Parameters | Charge / Discharge Rate | ≤ 0.5C |
| AC Grid-Tied Parameters | Rated Grid-Tied Power | 125 kW |
| AC Grid-Tied Parameters | Rated Grid Voltage / Frequency | 230V / 400V (-15% ~ +15%), 50/60Hz (±5Hz) |
| AC Grid-Tied Parameters | Power Factor / Current THDi | -1 (Leading) ~ 1 (Lagging) / < 2% |
| AC Grid-Tied Parameters | AC Grid Connection Type | (3W+PE) 3-Phase 3-Wire / (3W+N+PE) 3-Phase 4-Wire |
| AC Off-Grid Parameters | Rated Off-Grid Output Voltage | 230V / 400V |
| AC Off-Grid Parameters | Rated Off-Grid Power / Frequency | 125 kW / 50/60Hz |
| AC Off-Grid Parameters | Voltage Harmonic Distortion (THDu) | < 3% (Linear Load) |
| General & Environmental | Ingress Protection / Cooling Method | IP54 / Liquid Cooling |
| General & Environmental | Operating Temperature / Altitude | -30℃ ~ +55℃ (Derating above 45℃) / Up to 4000m |
| General & Environmental | Maximum Conversion Efficiency | 90% |
| General & Environmental | Dimensions (W×D×H) mm / Weight | 1000 × 1340 × 2390 mm / Approx. 2.7 t |
