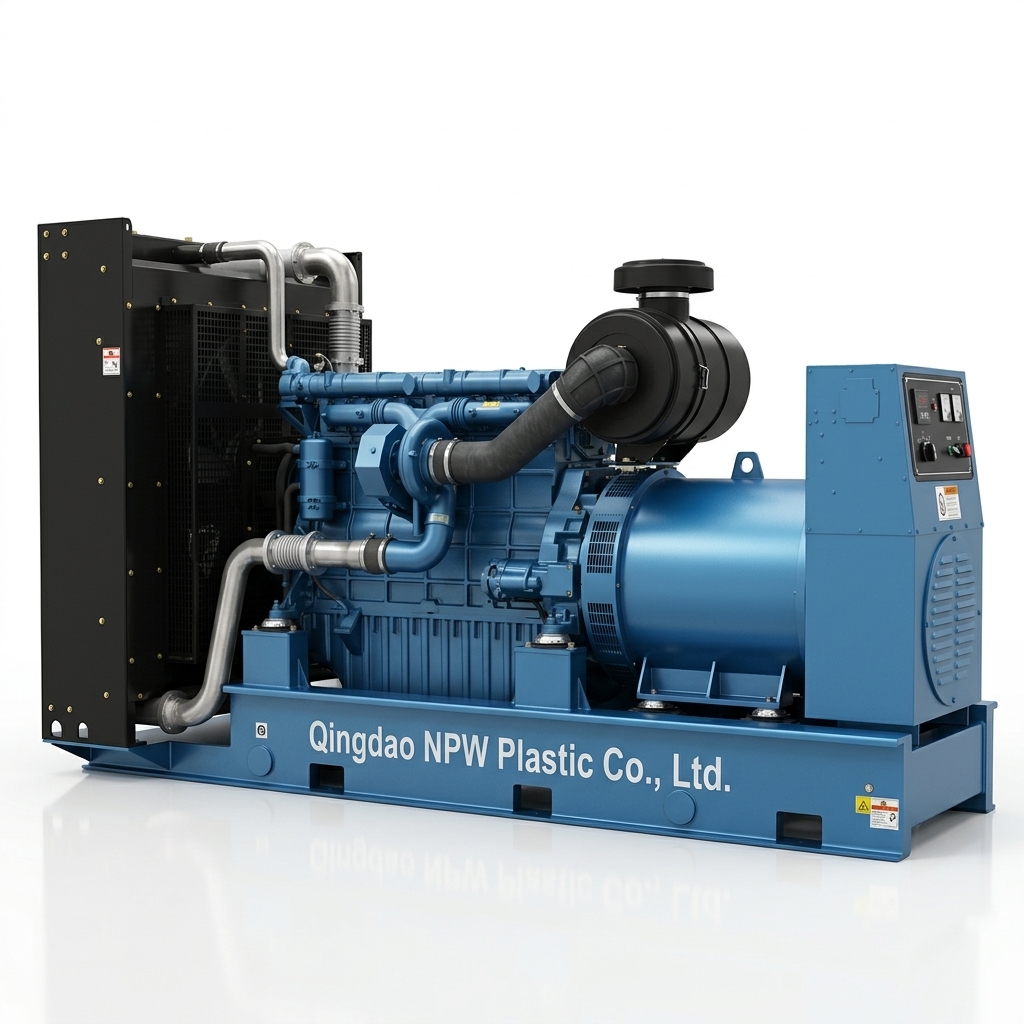

WEICHAI T3 SERIES

Weichai T3 Series diesel generator sets are powered by Weichai engines, covering 15–3300 kW. They are designed for high power output, reliable continuous operation and cleaner emissions, suitable for large-scale industrial and power generation applications.

Model	Prime Power (kW)	Engine Model	Engine Power (kW)	No. of Cylinder	Bore (mm)	Stroke (mm)	Displacement (L)	Oil Capacity (L)	Fuel Consumption (g/kWh)	Dimensions (L×W×H) (mm)	Weight (kg)
BC-15GF	15	WP2.3D20E310	20	4L	98	105	3.17	9	<210	1350×630×950	500
BC-20GF	20	WP2.3D28E310	27.5	4L	98	105	3.17	9	<210	1350×630×950	500
BC-25GF	25	WP2.3D36E310	36	4L	98	105	3.17	9	<210	1350×630×950	500
BC-30GF	30	WP2.3D44E310	44	4L	98	105	3.17	9	<210	1350×630×950	500
BC-55GF	55	WP4.1D66E310	66	4L	105	118	4.087	13	<210	1900×750×850	800
BC-70GF	70	WP4.1D84E310	84	4L	105	118	4.087	13	<190	1900×750×850	950
BC-90GF	90	WP4.1D105E310	105	4L	105	118	4.087	16	<210	2100×850×950	1050
BC-100GF	100	WP4.6ND120E310	120	4L	105	120	4.58	16	<210	2100×850×950	1050
BC-110GF	110	WP4.6ND138E310	138	4L	108	125	4.58	16	<210	2100×850×950	1050
BC-130GF	130	WP6D148E310	148	6L	105	125	6.75	18	<210	2200×900×1200	1250
BC-160GF	160	WP6D185E310	185	6L	105	130	6.75	24	<210	2400×1000×1300	1500
BC-180GF	180	WP6D165E310	186	6L	108	136	7.47	24	<210	2800×1050×1550	1750
BC-200GF	200	WP7D240E310	240	6L	108	136	7.47	24	<210	2800×1050×1550	1750
BC-220GF	220	WP12D264E310	264	6L	126	130	9.726	24	<210	2800×1050×1550	3050
BC-220GF	220	WP10D264E310	264	6L	126	130	9.726	24	<210	2800×1050×1550	3050
BC-300GF	300	WP10D320E310	320	6L	126	130	9.726	24	<210	2800×1050×1550	3050
BC-350GF	350	WP13D385E310	385	6L	126	155	12.54	30	<210	3500×1350×1950	3550
BC-400GF	400	WP13D440E310	440	6L	127	165	12.54	30	<210	3500×1350×1950	3550
BC-440GF	440	WP13D490E310	490	6L	127	165	12.54	30	<210	3500×1350×1950	3550
BC-580GF	580	6M33D633E310	633	6L	150	185	19.6	83	<210	3500×1350×1950	3350
BC-660GF	660	6M33D725E310	725	6L	150	185	19.6	83	<210	3600×1500×1950	3350
BC-700GF	700	8M33D800E310	800	8L	150	185	26.14	105	<210	3500×1350×1950	3350
BC-800GF	800	8M33D895E310	895	8L	150	185	26.14	105	<210	3500×1350×1950	3350
BC-880GF	880	8M33D975E310	975	8L	150	185	26.14	105	<210	3500×1350×1950	3350
BC-800GF	800	12M33D902E310	902	12V	150	185	39.2	146	<210	4600×1700×2300	7300
BC-900GF	900	12M33D968E310	968	12V	150	185	39.2	146	<210	4600×1700×2300	7300
BC-1000GF	1000	12M33D1108E310	1108	12V	150	185	39.2	146	<210	4600×1700×2300	7300
BC-1100GF	1100	12M33D1240E310	1240	12V	150	185	39.2	146	<210	4700×1850×2340	7950
BC-1200GF	1200	12M33D1320E310	1320	12V	150	185	39.2	146	<210	4700×1850×2340	7950
BC-1300GF	1300	12M33D1430E310	1430	12V	150	185	39.2	146	<210	4700×1850×2340	7950
BC-1400GF	1400	16M33D1530E310	1530	16V	150	185	52.3	171	<210	6000×2400×3000	12000
BC-1500GF	1500	16M33D1680E310	1680	16V	150	185	52.3	171	<210	7350×2670×3000	12800
BC-1600GF	1600	16M33D1800E310	1800	16V	150	185	52.3	171	<210	7350×2670×3000	12800
BC-1650GF	1650	16M33D1800E310	1800	16V	150	185	52.3	171	<210	7350×2670×3000	12800
BC-1800GF	1800	16M33D1980E310	1980	16V	150	185	52.3	171	<210	7350×2670×3000	12800
BC-2000GF	2000	20M33D2020E310	2020	20V	150	185	65.4	240	<210	7350×2670×3000	12800
BC-2200GF	2200	20M33D2210E310	2210	20V	150	185	65.4	240	<210	7350×2670×3000	12800
BC-2500GF	2500	20M33D2400E310	2400	20V	150	185	65.4	240	<210	7350×2670×3000	12800
BC-2600GF	2600	20M33D2700E310	2700	20V	150	185	65.4	240	<210	7350×2670×3000	12800
BC-3000GF	3000	20M33D2900E310	2900	20V	150	185	65.4	240	<210	7350×2670×3000	12800
BC-3300GF	3300	20M33D3100E310	3100	20V	150	185	65.4	240	<210
