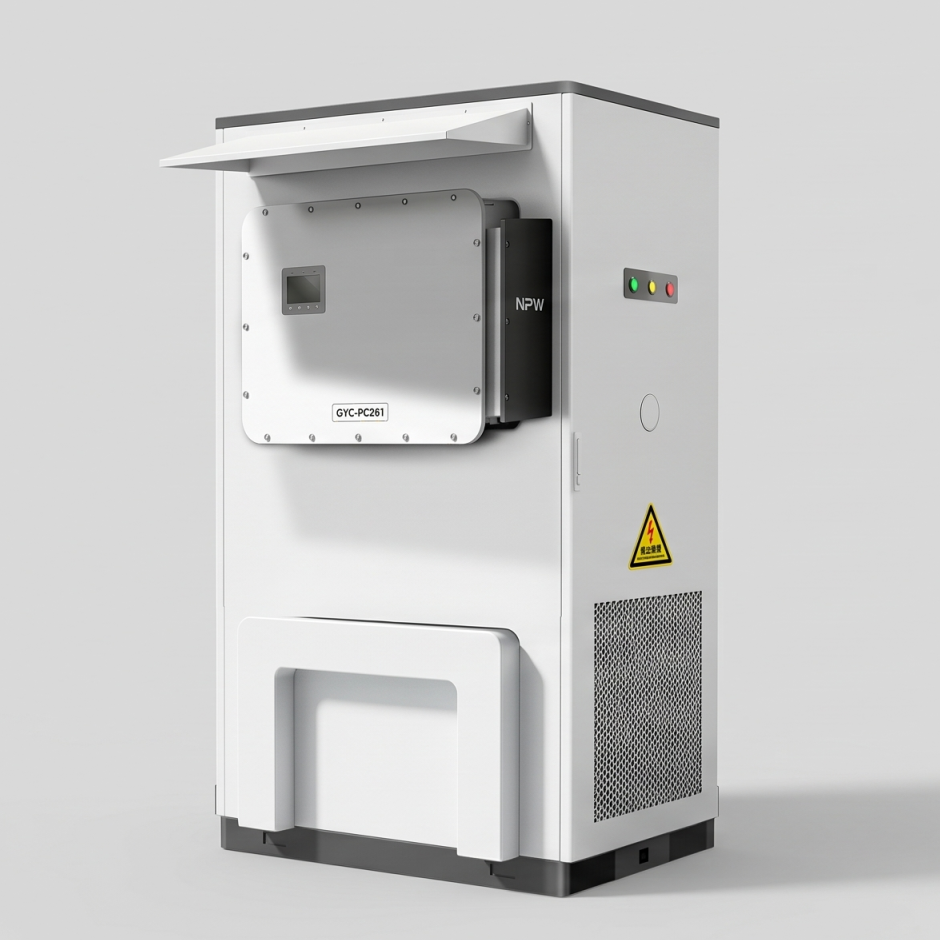

All-in-one liquid-cooled energy storage system featuring 250kWp multi-MPPT solar input, 125kW AC inverter, and 261kWh high-safety LFP storage.
| Category | Parameter | Value |
|---|---|---|
| DC Battery Parameters | Cell Type & System Configuration | LFP 3.2V / 314Ah, 1P260S |
| DC Battery Parameters | Battery Voltage Range | 728V ~ 923V |
| DC Battery Parameters | Battery System Capacity | 261 kWh |
| DC Battery Parameters | Charge / Discharge Rate | ≤ 0.5C |
| AC Parameters | Rated Output Power | 125 kW |
| AC Parameters | Rated Grid Voltage | 3/N/PE, 220V/380V; 3/N/PE, 230V/400V |
| AC Parameters | Rated Grid Frequency | 50/60Hz, ±5Hz |
| AC Parameters | Rated Grid Current | 189.9 A |
| AC Parameters | On/Off-Grid Switching Time | < 10 ms |
| AC Parameters | Power Factor / Current THDi | > 0.99 (0.8 leading ~ 0.8 lagging) / < 3% |
| PV Solar Input | Max PV String Power / Max Voltage | 250 kWp / 1000 V |
| PV Solar Input | Rated Input Voltage / MPPT Range | 600 V / 150V ~ 950V |
| PV Solar Input | Max PV Input Current | 10 × 42 A |
| PV Solar Input | MPPT Quantity / Max Input Strings | 10 MPPT / 20 Strings |
| System & Protection | Max System Efficiency | 90% |
| System & Protection | Fire Suppression System | Temp & Smoke Sensors, Aerosol (Pack & System), Water Interface |
| System & Protection | Ingress Protection | IP55 (Battery Compartment) |
| System & Protection | Operating Temperature / Humidity | -30℃ ~ +55℃ (Derating above 45℃) / 0 ~ 95% RH |
| System & Protection | Cooling Method / System Weight | Liquid Cooling / Approx. 2.6 t |
| System & Protection | Dimensions (W×D×H) mm | 1000 × 1340 × 2390 (Excluding external inverter section) |
