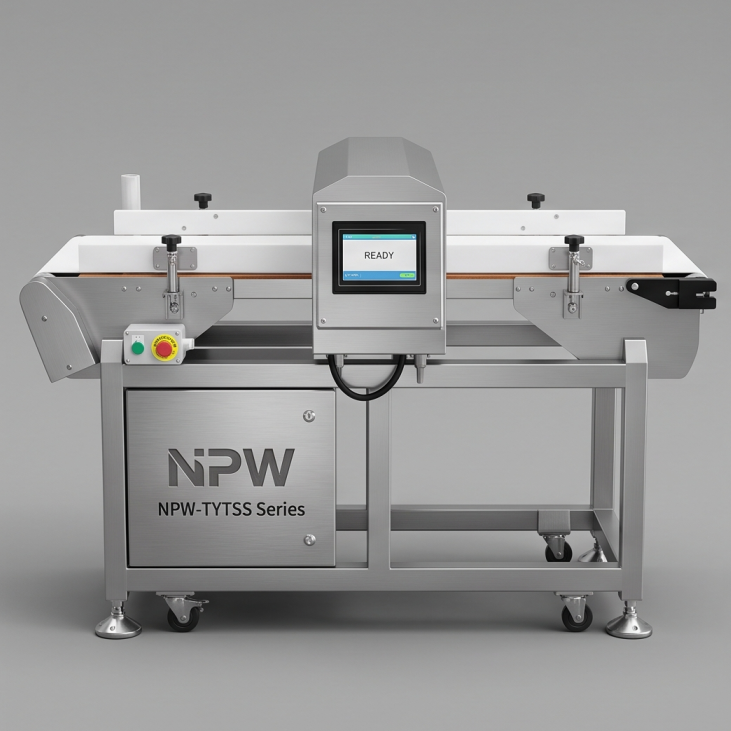

Intelligent conveyor-type food metal detector equipped with an HD touchscreen, 12-product memory channels, dual-frequency phase tracking, and automated rejection mechanisms for meat and poultry processing lines.
| Parameter | Technical Specification |
|---|---|
| Model / Series | NPW-TYTSS Series (Version 2.0) |
| Detection Method | Balanced Coil Digital Signal Processing (DSP) with Dual-Channel Phase Tracking |
| Detectable Contaminants | Ferrous (Fe), Non-Ferrous (Cu, Brass, Al), and Stainless Steel (SUS 304 / 316) |
| Display & Operator Interface | Full-Color HD Industrial Touchscreen (Oscilloscope, Status, Alarm, Product, Settings) |
| Product Preset Memory | 12 Independent Product Memory Channels (Quick recall without recalibration) |
| Product Effect Compensation | Advanced Material Effect Shielding & Waveform Phase Adjustment |
| Operating Voltage | 24 VDC Internal Control Circuit / 220 VAC (50/60 Hz) Main Power Supply |
| Communication Interface | Serial Port RS232 / RS485 (Baud Rate: 115200) |
| Belt Stop & Alarm Modes | Selectable: Alarm & Stop Belt / Alarm Without Stopping Belt |
| Signal Output Ports | OUT1 (Standby Signal), OUT2 (Alarm Beacon / Horn), OUT3 (Belt Motor), OUT4 (Rejector Drive) |
| Rejection Mechanism Options | Compatible with Pneumatic Pusher, Flipper Arm, Drop-Flap, or Air Jet Systems |
| Rejection Timing Adjustment | Configurable Rejection Delay Time and Action Duration |
| System Security | Multi-Tier Password Protected Access (Default Password: 1688) |
| Diagnostics & Monitoring | Real-Time X-Voltage Health Monitoring & Historical Alarm Log Traceability |
| Frame & Housing Material | Food-Grade Heavy-Duty SUS 304 Stainless Steel |
| Conveyor Belt Material | Food-Grade Anti-Microbial PU / PVC Conveyor Belt |
| Operating Temperature (℃) | -10 ~ +50 |
