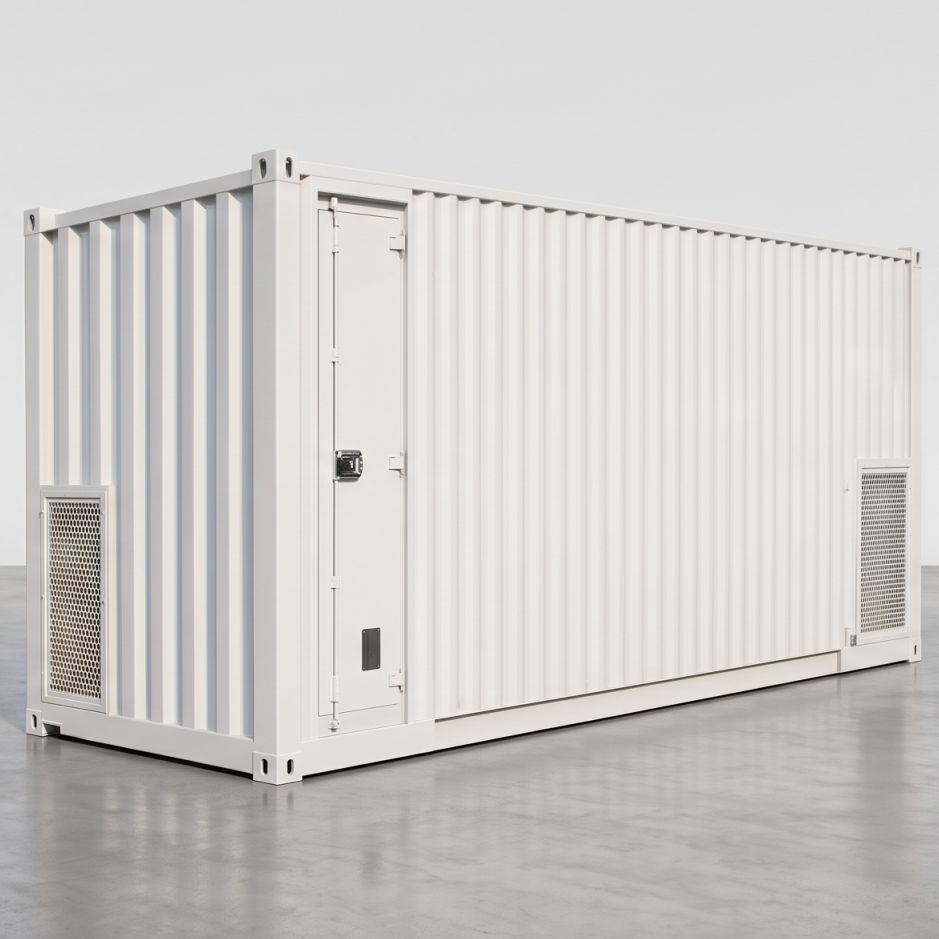

Standard container-type energy storage power station system (10ft / 20ft / 40ft), highly integrating industrial frequency PCS, battery system, air-conditioning temperature control, gas fire suppression and intelligent EMS, supporting microgrid black start and millisecond grid-connected/off-grid switching.
| Parameter | 10ft Container | 20ft Container | 40ft Container |
|---|---|---|---|
| Rated Output Voltage | 380V / 400V (±15%) | 380V / 400V (±15%) | 380V / 400V (±15%) |
| Grid Frequency (Hz) | 50/60 (±2.5Hz) | 50/60 (±2.5Hz) | 50/60 (±2.5Hz) |
| Output Power (kW) | 50 ~ 100 kW | 50 ~ 500 kW | 250 ~ 630 kW |
| Battery Capacity (kWh) | 50 ~ 400 kWh | 200 ~ 1500 kWh | 800 ~ 3000 kWh |
| Battery Cell Chemistry | LiFePO4 (LFP) | LiFePO4 (LFP) | LiFePO4 (LFP) |
| Internal Dimensions (D×W×H) mm | 2831 × 2352 × 2385 | 2352 × 5898 × 2385 | 2352 × 12032 × 2385 |
| External Dimensions (D×W×H) mm | 2438 × 2991 × 2591 | 2438 × 6058 × 2591 | 2438 × 12192 × 2591 |
| Ingress Protection | IP54 | IP54 | IP54 |
| Operating Temperature / Altitude | -20℃ ~ 50℃ / Up to 3000m | -20℃ ~ 50℃ / Up to 3000m | -20℃ ~ 50℃ / Up to 3000m |
| Battery DC Voltage Range | 250V ~ 850V | 250V ~ 850V | 250V ~ 850V |
| Max DC Current (A) | 200 A | 750 A | 1500 A |
| AC Connection Type | 3P4W | 3P4W | 3P4W |
| Power Factor / Isolation | -1 ~ 1 / Industrial Frequency Isolation | -1 ~ 1 / Industrial Frequency Isolation | -1 ~ 1 / Industrial Frequency Isolation |
| Communication Protocols | RS485 / CAN / Ethernet | RS485 / CAN / Ethernet | RS485 / CAN / Ethernet |
