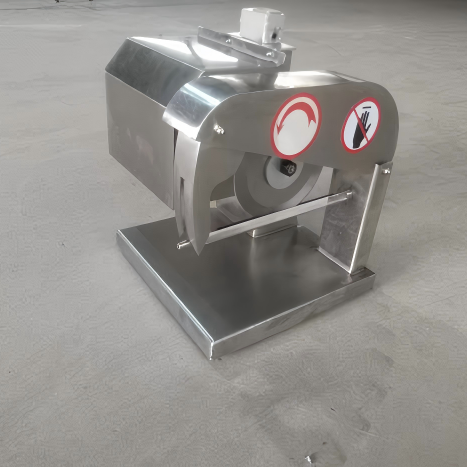

Generation I Poultry Cutting Machine
The Generation I Poultry Cutting Machine is designed for high-efficiency segmenting, portioning, and breast-opening of chicken, duck, goose, and other poultry. Crafted from food-grade stainless steel, this compact machine (400×400×500mm) features a powerful 1.1kW motor and supports dual-voltage options (220V/380V). With its durable construction, lightweight design (30kg), and stable performance, it ensures easy cleaning, hygiene compliance, and reliable operation. It is an ideal cutting solution for slaughterhouses, meat processing plants, and commercial kitchens.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
Product Introduction: Generation I Poultry Cutting Machine
I. Product Overview
The Generation I Poultry Cutting Machine is a classic, highly efficient food processing equipment designed for precise segmenting, portioning, and breast-opening of chickens, ducks, and geese.
Crafted entirely of high-quality food-grade stainless steel, this classic machine offers excellent durability, stable cutting performance, and straightforward operation. It is a highly cost-effective and reliable cutting solution favored by poultry butcher shops, commercial kitchens, and meat processing facilities worldwide.
II. Structural Features & Working Principle
1. Key Structural Features
- Classic Durable Design: Streamlined mechanical layout with a smaller footprint, offering rugged durability and simple operation.
- Heavy-Duty Cutting Disc: Equipped with a high-strength, wear-resistant circular alloy blade that delivers clean, splinter-free cuts through poultry flesh and bones.
- Hygienic Construction: Fully made of food-grade stainless steel, featuring smooth, seamless surfaces that are easy to wash down and sanitize.
- Heavy-Duty Motor: Driven by a robust, fully enclosed 1.1kW motor that prevents moisture intrusion and ensures stable, continuous output.
2. Working Principle
The high-power electric motor drives the circular alloy blade to rotate at high speeds. The operator manually feeds the poultry carcass along the guide platform toward the rotating blade. The high-speed rotation allows the operator to quickly and cleanly divide, portion, or split the poultry carcass without crushing the muscle tissue or bones.
III. Main Technical Parameters
| Parameter | Specification |
|---|---|
| Model | Generation I Poultry Cutting Machine |
| Function | Segmenting, portioning, breast-opening (Chicken, Duck, Goose) |
| Structural Material | Premium Food-grade Stainless Steel |
| Rated Voltage | 220V / 380V (Dual-voltage options) |
| Motor Power | 1.1 kW |
| Blade Diameter | Φ200 mm / Φ250 mm (Optional) |
| Machine Weight | 30 kg |
| Overall Dimensions (L×W×H) | 400 × 400 × 500 mm |
| Export Wooden Case Size | 580 × 540 × 570 mm |
| Gross Weight (With Case) | 220V: 46 kg / 380V: 42 kg |
IV. Installation & Commissioning
1. General Installation Procedure
- Place the cutting machine on a flat, solid, and non-slip workbench to eliminate vibration during operation.
- Ensure the onsite power supply matches the rated voltage (220V single-phase or 380V three-phase).
- Connect the power cable securely. For 380V three-phase configurations, verify that the blade rotates in the correct direction (indicated by the arrow on the safety guard).
- Idle the machine (run empty) for 1–2 minutes to inspect for any abnormal noises or excessive vibrations.
2. After-Sales Service
Installation, commissioning, and regular technical maintenance can be conducted by our company’s professional engineering team or under remote guidance from our customer support center.
V. Safe Use & Precautions
1. Before Use
- Read the operator manual thoroughly to understand the basic structure and safety rules.
- Check if the blade fastening nut is securely tightened.
- Ensure the protective guard is securely in place and has no structural damage.
2. Operational Safety
- Strictly Prohibited: Do not push poultry towards the blade with bare hands when close to the cutting area. Always maintain a safe distance and use pushing guides.
- Do not wear loose clothing, necklaces, or loose gloves that could get caught in the high-speed rotating blade. Long hair must be tied back.
- Always disconnect the power plug before performing cleaning, adjustments, blade replacement, or maintenance.
3. Safety Pictograms
| Symbol / Hazard | Safety Meaning & Precautionary Measures |
|---|---|
| Danger | High-speed rotating blade hazard. Keep hands and fingers strictly away from the blade. |
| Danger | Electrical shock hazard. Disconnect the main power source before opening the electrical enclosure. |
| Warning | Sharp blade edge. Handle with extreme care during maintenance, blade cleaning, and replacement. |
| Warning | Do not operate the machine with safety guards or safety shields removed. |
4. Daily Maintenance
| Frequency | Maintenance Task Description |
|---|---|
| Every Shift | Clean meat residue and fat off the blade and stainless steel housing with warm soapy water. |
| Every Week | Inspect the tightness of the blade fastening nut and the motor mounting bolts. |
| Every Month | Inspect the circular blade for dullness or micro-chips; sharpen or replace if necessary. |
| Every 3 Months | Check electrical wiring insulation and ensure the main ground wire is connected securely. |
VI. Simple Troubleshooting
| Problem Encountered | Possible Root Cause | Recommended Solution |
|---|---|---|
| Motor does not start when switched on | 1. Power plug is loose. 2. Internal wiring or capacitor is damaged. |
1. Check and secure the power connection. 2. Contact professional technicians to inspect wiring. |
| Jagged or crushed meat cuts | 1. Blade is dull or chipped. 2. Blade is installed in the reverse direction. |
1. Sharpen or replace the circular cutting blade. 2. Re-install the blade in the correct rotation direction. |
| Heavy machine vibration or abnormal noise | 1. Blade fastening nut is loose. 2. Blade is deformed or unbalanced. 3. Motor bearings are worn out. |
1. Stop the machine immediately and tighten the blade nut. 2. Replace the deformed or unbalanced blade. 3. Replace the motor bearings. |
| Motor overheats during operation | 1. Overloading (feeding poultry too quickly). 2. Input voltage is unstable or too low. |
1. Reduce the feeding speed; allow the motor to cool down. 2. Inspect and stabilize the input power voltage. |
