Automatic Harvesting Broiler Cage
Product Name: Automatic Broiler Cage Equipment Applicable Industries: Poultry Farms Use: Broiler Chicken Material:Hot Dip Galvanized Steel Tiers:3-4 Tiers Certification:ISO 9001,SONCAP Life Time:15-20 Years
Save time：Bird-harvesting>6000 birds/hr
Save Feed：Feed-to-meat Ratio 1.4:1
Long Lifespan：15-20 years
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
Automatic Harvesting Broiler Cage Drawing
cage size
| Building size recommend | |||||||||
| Recommend building size | Chicken Quantity | ||||||||
| 90m*17.3m*4.5m (4-tier cage) | 81000(1.8kg bird) | ||||||||
| 80m*14.5m*4.2m (3-tier cage) | 41400(1.8kg bird) | ||||||||
| Cage information | |||||||||
| Cell Size | Length 3000mm, width 1820mm, height 500mm | ||||||||
| Raising Area | 364cm² | ||||||||
| Broiler Quantity per Cell | 150 birds/cell(<1.8kg) | ||||||||
Product Advantage
1. Cage mesh + frame
- Cage size: perfectly fitted to match the number of birds (raising density:50kg/㎡).
- Surface treatment: hot galvanized with uniform 275g zinc coating, good anti-corrosion quality.
2. Automatic feeding

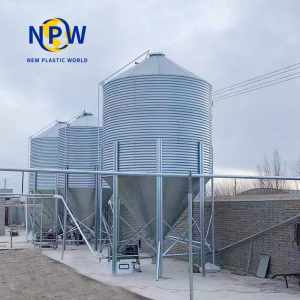

- Silo: weighing device is included for daily records of feed consumption.
- Pan feeding: The height is adjustable to feed chickens at different ages.
- Feed sensor: IFM®.
- Feed pipe: hot galvanized.
- Spiral: imported from South Africa.
- This mechanism guarantees a uniform distribution of feed over the whole system.
3. Automatic drinking
- Lifting system for every water dispenser allows chickens to drink at the correct height.
- Two different water supply lines are placed in each cage with 12 pcs drinkers.
- 360°water supply of the nipples.
- Supply Doser, filter, and pressure gauge.
4. Automatic manure cleaning
- PP belt, 1.2mm thickness.
- Conveying speed: 3m/min.
5. Automatic bird-harvesting
- Plastic slat floor: PP raw material, soft and strong, hurt chicken breasts and feet; Easily pulled out.
- Flexible bird-harvesting time: Qualified chickens are taken out first. Chickens below the slaughter weight can continue to be raised for 1-2 days.
- lifting system at the final part can transport chickens from each tier outside the house.
- Bird-harvesting speed: about 6000 birds per hour.
- PVC conveying belt with 600mm width.
6. Automatic ventilation
- Cone fan: pass dynamic balance test.
- Cooling pad: with anti-rat mesh.
- Air-inlet window: with anti-bird mesh.
- Deflector: prevent cold air on chickens directly, avoid cold stress.
- Different heating methods can be designed: gas type, water type, diesel type
7. Automatic lighting
- Lights are specially for broiler chickens
- Uniform lighting, no flicker
8. Prefab chicken house
- Customized prefab steel structure chicken house based on local environment
