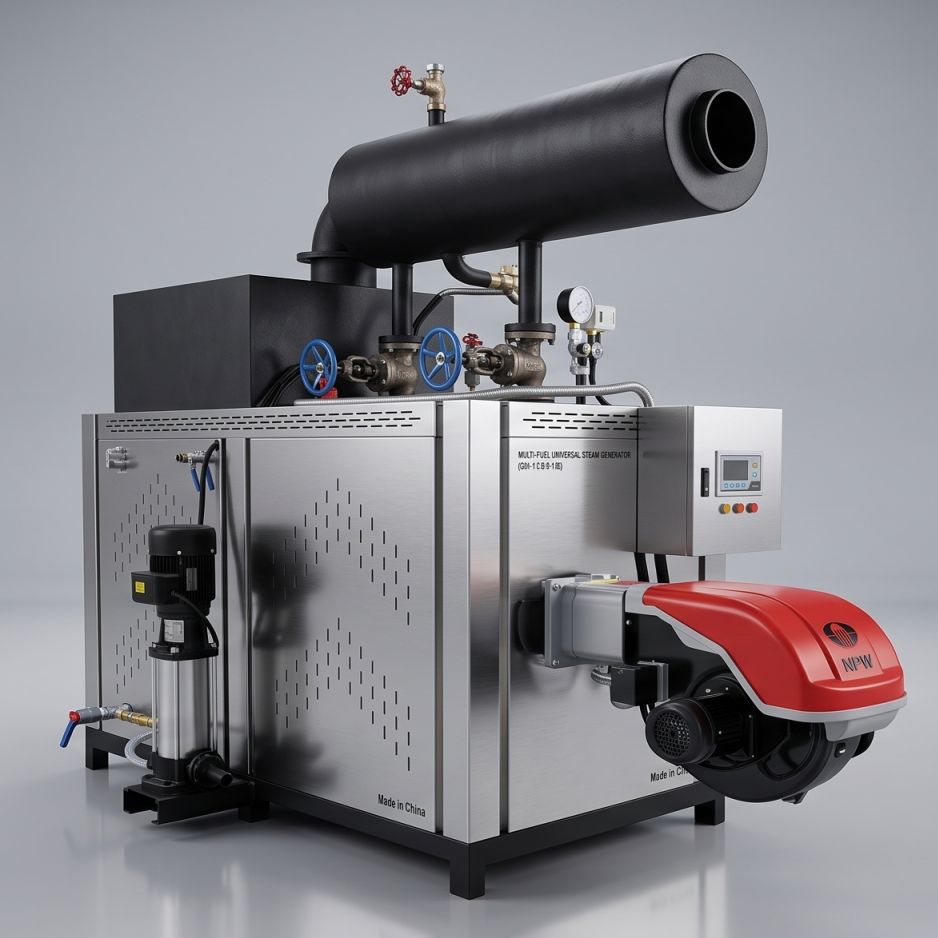

Multi-fuel steam generator with 1000kg/h capacity, suitable for natural gas, LPG, diesel, and biomass pellets.
Interested in this product? Contact us now for detailed pricing and product information.
Multi-fuel steam generator with 1000kg/h capacity, suitable for natural gas, LPG, diesel, and biomass pellets.
| Parameter | Value |
|---|---|
| Model | GH-1.0-0.8-Y(Q) |
| Rated Evaporation | 1000 kg/h |
| Thermal Efficiency | ≤98% |
| Fuel Consumption | Natural Gas 71 m³/h; LPG/Diesel 60 kg/h; Biomass Pellets 150 kg/h |
| Total Water Volume | 49 L |
| Inlet Diameter | DN32 |
| Blowdown Diameter | DN32 |
| Steam Outlet | DN50 |
| Power | 3.5 kW |
| Chimney Diameter | Φ325 mm |
| Power Supply | 220V/50Hz |
| Dimensions (L×W×H) | 1500×3000×2700 mm |
| Weight | 2800 kg |

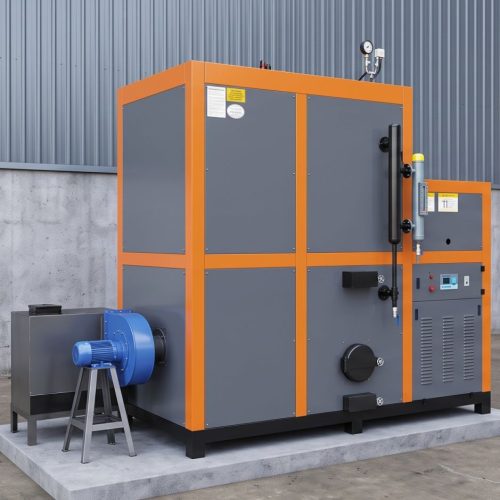

Biomass steam generator with 1000kg/h capacity, single unit design, using wood pellets as fuel.
