Product Details

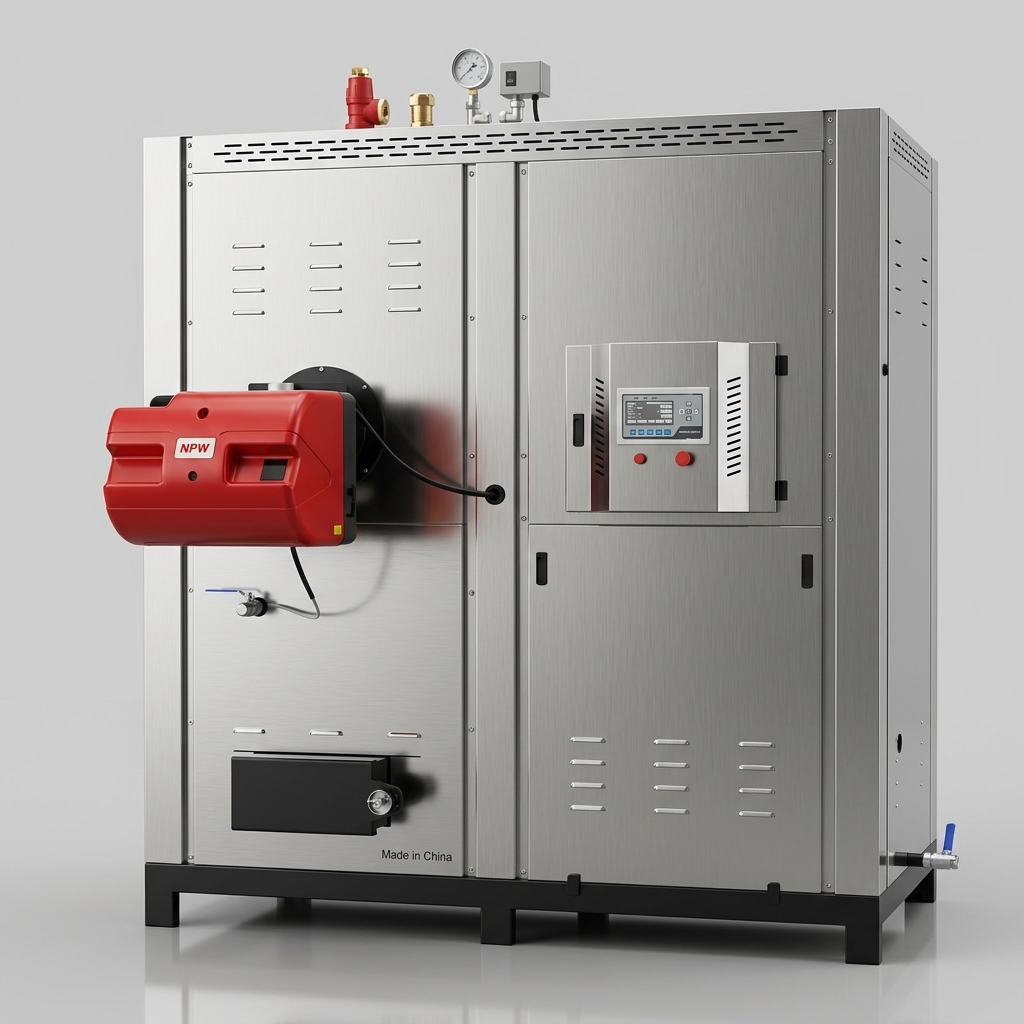

Multi-fuel steam generator with 500kg/h capacity, suitable for natural gas, LPG, diesel, and biomass pellets.
| Parameter | Value |
|---|---|
| Model | GH-0.5-0.8-M |
| Rated Evaporation | 500 kg/h |
| Fuel | Natural Gas, LPG, Diesel, Biomass Pellets |
| Thermal Efficiency | ≤98% |
| Fuel Consumption | Natural Gas 35 m³/h; LPG/Diesel 30 kg/h; Biomass Pellets 75 kg/h |
| Total Water Volume | 49 L |
| Inlet Diameter | DN25 |
| Blowdown Diameter | DN40 |
| Steam Outlet | DN40 |
| Safety Valve Diameter | DN25 |
| Power Supply | 220V |
| Chimney Diameter | Φ219 mm |
| Dimensions (L×W×H) | 2100×1600×2500 mm |
| Weight | 1000 kg |
