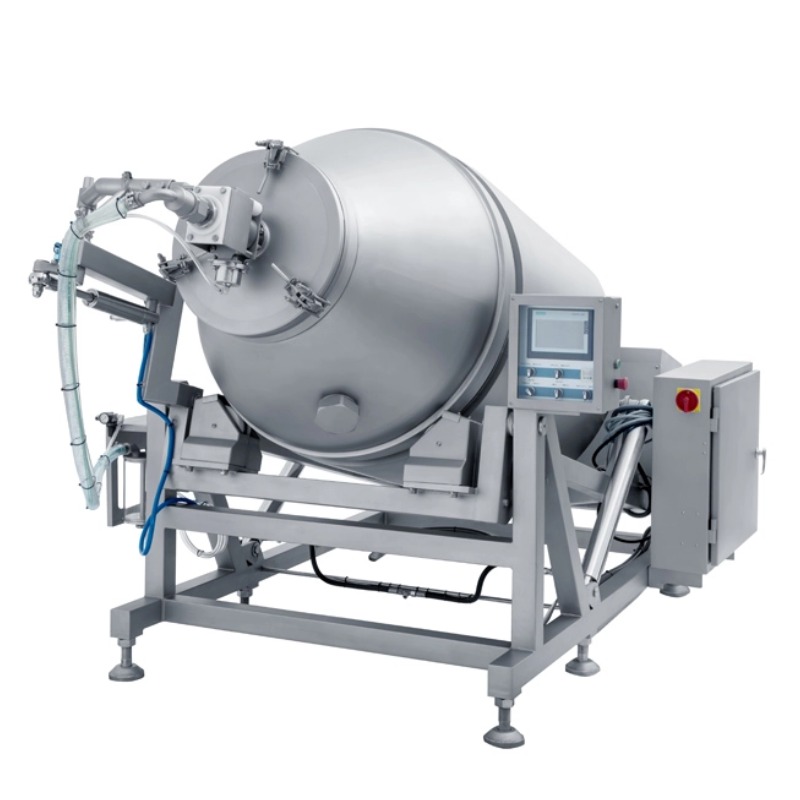

Variable Frequency Drive Vacuum Tumbling Machine
Intelligent, Adaptable Vacuum Tumbling for Precision-Engineered Meat Products
The GR Series Variable-Frequency Vacuum Tumblers represent the forefront of automated meat processing technology. Designed for processors who demand unparalleled control over texture and quality, these machines integrate a professional PLC touch-screen interface with a variable-frequency drive (VFD) for fully adjustable tumbling speeds. This combination allows for the precise replication and automation of complex cycles, including intermittent “lung breathing” vacuum functions, tailored to specific products from delicate poultry to robust ham. Paired with optional automated loading and unloading systems, they offer a complete, high-efficiency solution for achieving superior tenderness, perfect marinade distribution, maximum yield, and exceptional product consistency.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
GET A QUOTE NOWProduct Details
Product Highlights:
- Precision PLC & Variable-Frequency Control: The core is an industrial PLC with a touch-screen interface, allowing for multi-recipe storage and programming of all parameters. The integrated Variable-Frequency Drive (VFD) enables stepless speed adjustment from 0 to 7.5 RPM, letting you fine-tune the tumbling intensity for any product.
- Advanced Automated Cycles: Features a programmable “lung breathing” function (intermittent vacuum release) to enhance marinade penetration. The system supports full automation of total time, tumbling duration, rest intervals, and vacuum levels for hands-off, repeatable processing.
- Optimized for Hygiene & Efficiency: Includes an automatic water drain filter to efficiently remove wastewater. Designed for integration with automatic unloading and hydraulic loading systems, minimizing manual labor and maximizing production line throughput.
- Superior Tumbling Performance: The dome-shaped ends and unique curved baffles ensure a gentle yet thorough lift-and-drop action. This design maximizes protein extraction and guarantees even ingredient distribution without damaging the meat, leading to improved binding, sliceability, and product appearance.
- Robust Industrial Construction: Built entirely with food-grade stainless steel for durability, easy cleaning, and compliance with strict hygiene standards. The design ensures quiet, reliable operation in demanding environments.
Technical Specifications (Model Example: GR-800L)
| Parameter | Specification |
|---|---|
| Model Example | GR-800L |
| Power Supply | 380V, 3-Phase, 50Hz |
| Total Power | 4.75 kW |
| Effective Capacity | 800 L |
| Vacuum Level | ≤ -0.08 MPa |
| Drum Speed | 0 – 7.5 rpm (Stepless Adjustable) |
| Dimensions (L×W×H) | 2250 × 1300 × 1700 mm |
| Control System | PLC Touch-Screen with Multi-Recipe Storage |
| Key Automation Features | Programmable “Lung Breathing” Function, Automatic Timing Cycles |
| Optional Automation | Automatic Unloading; Compatible with Hydraulic Loading Systems |
*Note: This series is available in a full range of capacities from 15L to 2000L (e.g., GR-15L, GR-100L, GR-300L, GR-2000L, etc.). All key specifications such as power, dimensions, and speed range will scale accordingly with the model capacity.*
In-Depth Advantage Analysis
1. Unmatched Process Control for Product Excellence
The integration of a Programmable Logic Controller (PLC) transforms the tumbler from a simple mixer into an intelligent processing station. Operators can create, save, and recall exact recipes for different products. The variable-frequency drive is critical, as it allows the tumbling speed to be perfectly matched to the product—slower for fragile items, faster for tougher cuts. The “lung breathing” function periodically breaks the vacuum, forcing marinades deeper into the meat tissue. This level of control is essential for achieving exact texture, flavor, and yield targets consistently, batch after batch.
2. Designed for Modern, Automated Production Lines
This machine is built for integration. The capability for automatic unloading and compatibility with hydraulic loading systems means it can seamlessly connect to upstream and downstream equipment. This dramatically reduces manual handling, increases safety, and elevates overall line efficiency. The automatic water drain filter further reduces operator intervention and simplifies maintenance, ensuring more uptime for production.
3. Engineered to Maximize Return on Investment
Every design choice focuses on improving your bottom line. The efficient tumbling action and vacuum technology maximize protein extraction and water binding, directly increasing cooked product yield. Precise control reduces ingredient waste by ensuring optimal absorption. The automation features lower labor costs and minimize human error. The stainless steel construction ensures long service life with minimal maintenance, protecting your capital investment.
4. Hygiene and Reliability Built-In
Constructed entirely from easy-clean, corrosion-resistant stainless steel, the machine meets the highest food safety standards. The streamlined interior with curved baffles leaves no corners for product or bacteria to accumulate. This design, coupled with robust components chosen for continuous industrial duty, guarantees reliable performance and simplifies the sanitation process, which is crucial for maintaining production schedules and product safety.
Why Choose NPW Equipment?
NPW Equipment is dedicated to providing intelligent automation that delivers tangible process advantages. The GR Series Variable-Frequency Tumbler exemplifies our commitment to merging advanced control technology with robust mechanical engineering. We deliver not just a machine, but a configurable processing center that provides the precision, flexibility, and efficiency needed to develop superior products and optimize your production line for maximum profitability.
Request a Process Optimization Demo
Discover how precise control can transform your products. Contact our technical team to discuss your specific application—whether it’s for ham, sausages, marinated poultry, or specialty items. We can simulate a tumbling cycle based on your goals and demonstrate how the PLC and variable-speed functions can be leveraged to achieve your desired quality and yield outcomes.
