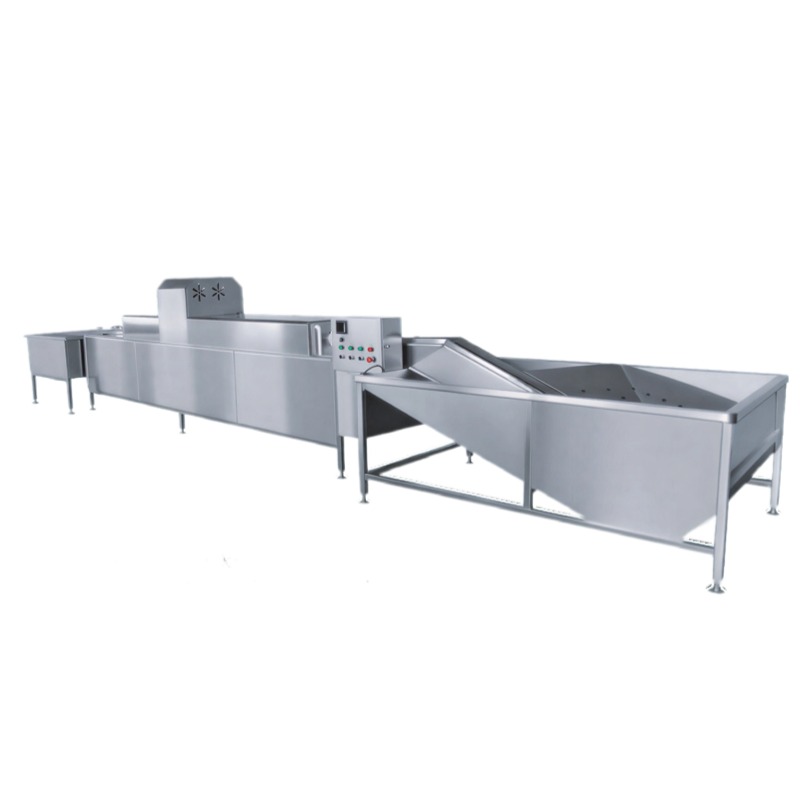

Multi-Row Egg Washing & Drying Lines
The NPW GR Series Modular Egg Washing Lines represent the industry standard for high-volume, hygienic egg pretreatment. Engineered as a complete system comprising feeding, precision cleaning, efficient drying, and optional inspection, these lines are designed to seamlessly integrate into any egg packing operation. Available in 6, 8, and 12-row configurations, their modularity allows for perfect capacity matching, from large-scale farms to regional packing centers. Constructed entirely from 304 stainless steel and featuring a combination of soft-brush and spray cleaning technology, the GR Series ensures gentle yet thorough dirt and contaminant removal, significantly enhancing shelf life, product safety, and visual appeal for the retail market.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
GET A QUOTE NOWProduct Details
This line is the critical first step in value-added egg processing. It begins with gentle loading, often via a central hopper and lane dividers. Eggs then pass through rotating soft-brush modules that scrub away attached dirt and bloom, followed by a spray tunnel using tempered, sanitized water for a final rinse. The culmination is a high-velocity air-knife drying section that leaves eggs completely dry, preventing bacterial growth and preparing them for downstream grading or oiling.
Technical Specifications:
| Parameter | Specification / Description |
|---|---|
| Product Name | GR Series Modular Multi-Row Egg Washing & Drying Line |
| Available Configurations | 6-Row, 8-Row, 12-Row (Custom row layouts available). |
| Typical Capacity Range | 15,000 – 60,000+ eggs per hour (Depending on row configuration). |
| Cleaning System | Stage 1: Rotating Soft Nylon Brushes; Stage 2: Precision Tempered Water Sprays. |
| Drying System | High-Velocity, Adjustable Air-Knife Drying Tunnel. |
| Construction Material | AISI 304 Stainless Steel (Frame, Brushes Housing, Spray System, Drying Tunnel). |
| Power Supply | 380V / 50Hz / 3-Phase (Customizable for regional standards). |
| Water Management | Optimized low-flow spray system; optional water heating and recycling filtration. |
| Control System | Centralized IP65-rated control panel with motor protection and process indicators. |
| Optional Modules | Pre-wash soaker, UV sanitizing light tunnel, inline candling. |
In-Depth Advantage Analysis:
- Engineered for Uncompromising Food Safety: The all-stainless, cleanable design and effective drying eliminate moisture where microbes thrive, a foundational step for HACCP compliance.
- Maximizing Product Quality and Shelf-Life: Gentle cleaning preserves shell integrity while removing contaminants. Immediate drying is crucial to prevent “sweating” in cartons, which is a primary cause of mold and spoilage.
- Delivering Tangible Return on Investment (ROI): Automates a manual task, reduces labor, and minimizes egg breakage through controlled handling. A cleaner, drier egg also means fewer customer returns and enhanced brand perception.
- Reliability and Ease of Integration: Built with industrial-duty components for 24/7 operation. The modular design allows straightforward installation and future capacity expansion alongside existing graders and packers.
Why Choose NPW Equipment?
The first impression of your product is its cleanliness. NPW washing lines provide the reliable, hygienic foundation necessary to build a trusted egg brand, ensuring product integrity from the very start of the packing process.
Request a Line Configuration & Capacity Analysis
Optimize the front end of your operation. Contact us to discuss your volume and get a tailored line proposal.
