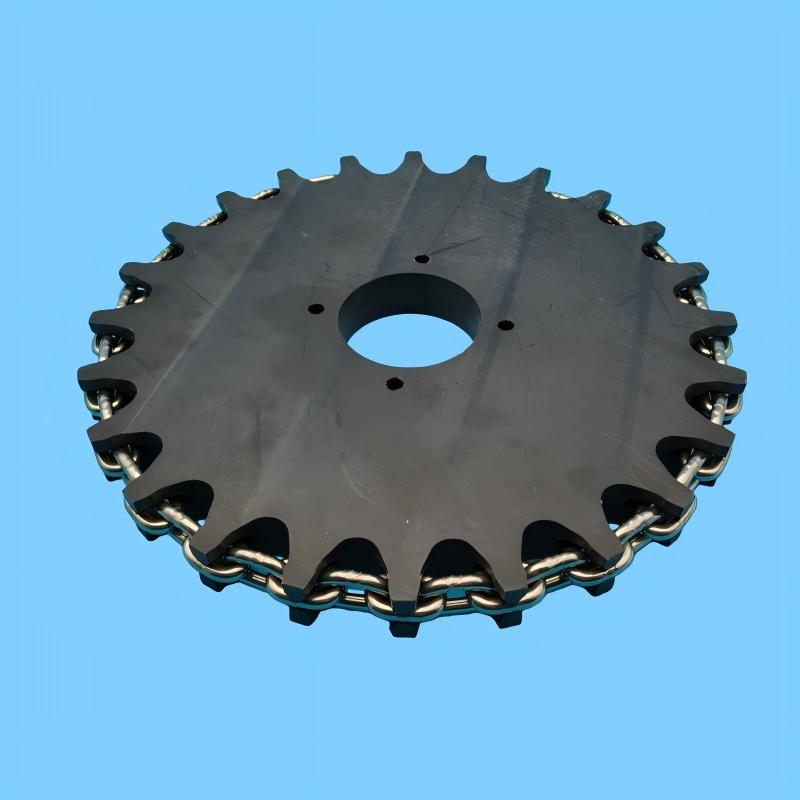

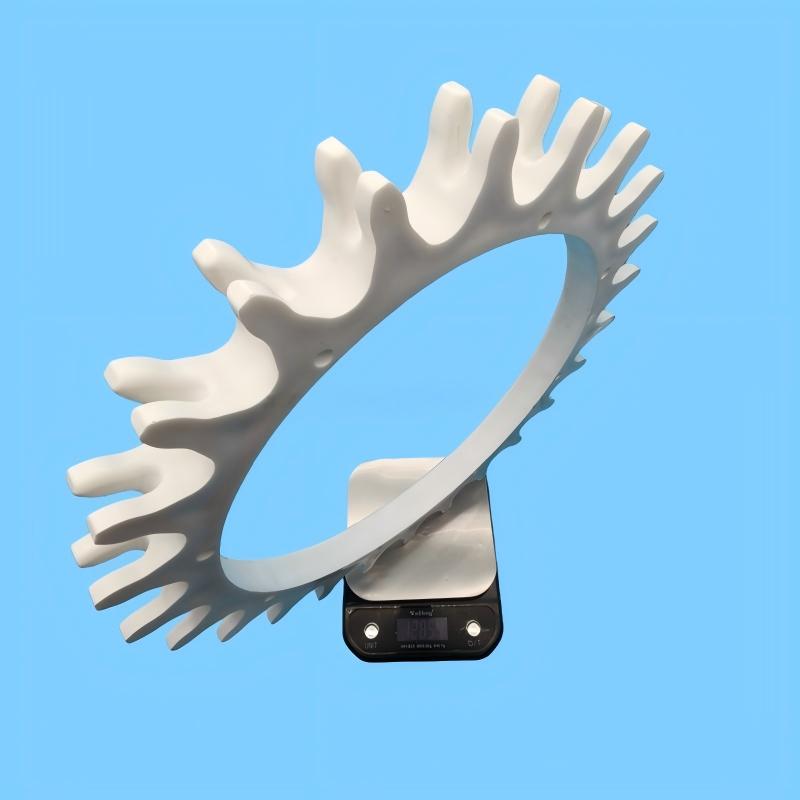

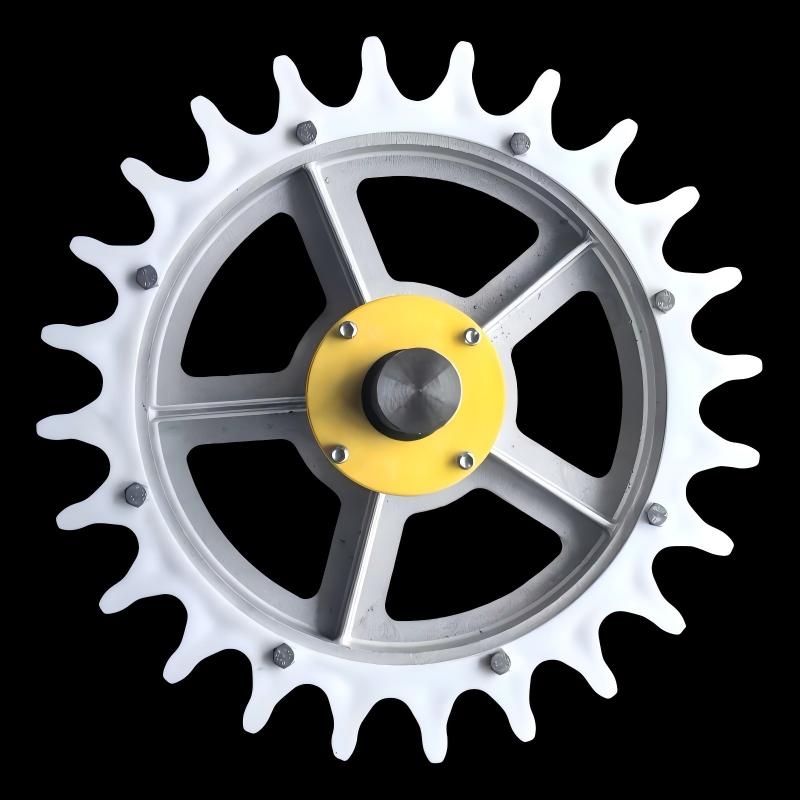

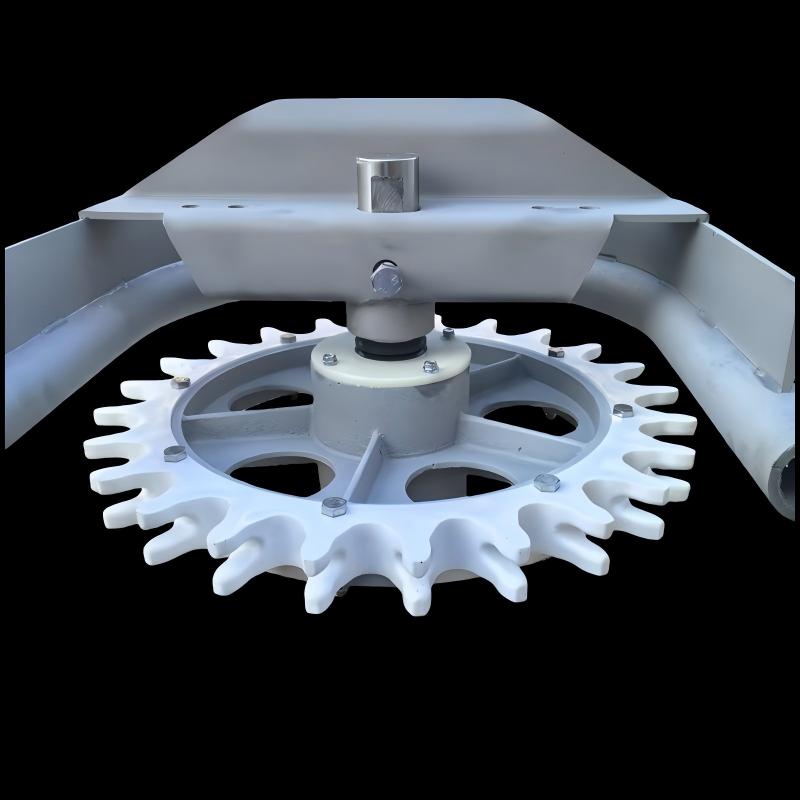

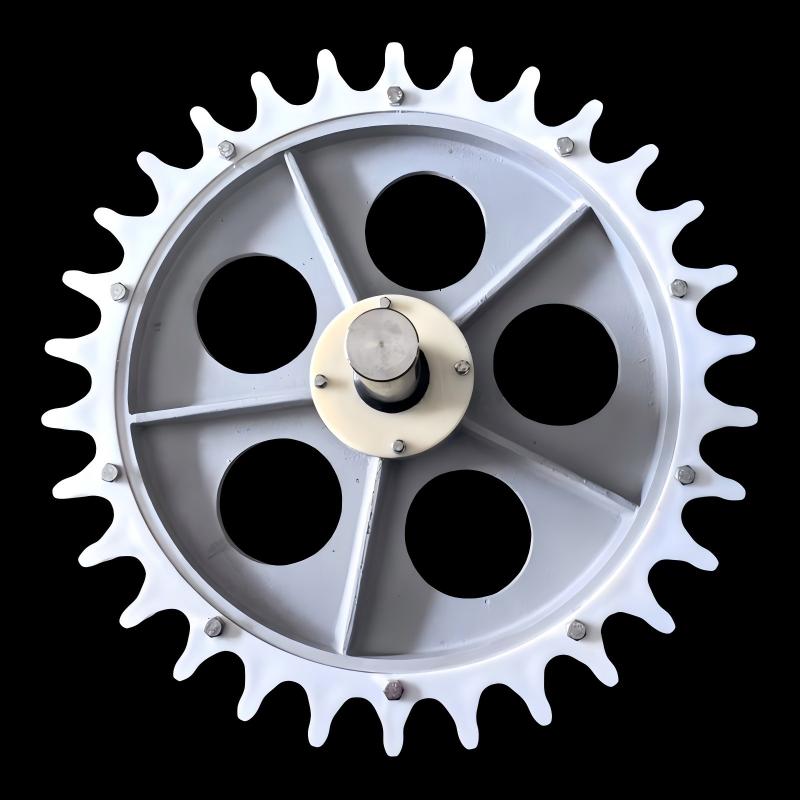

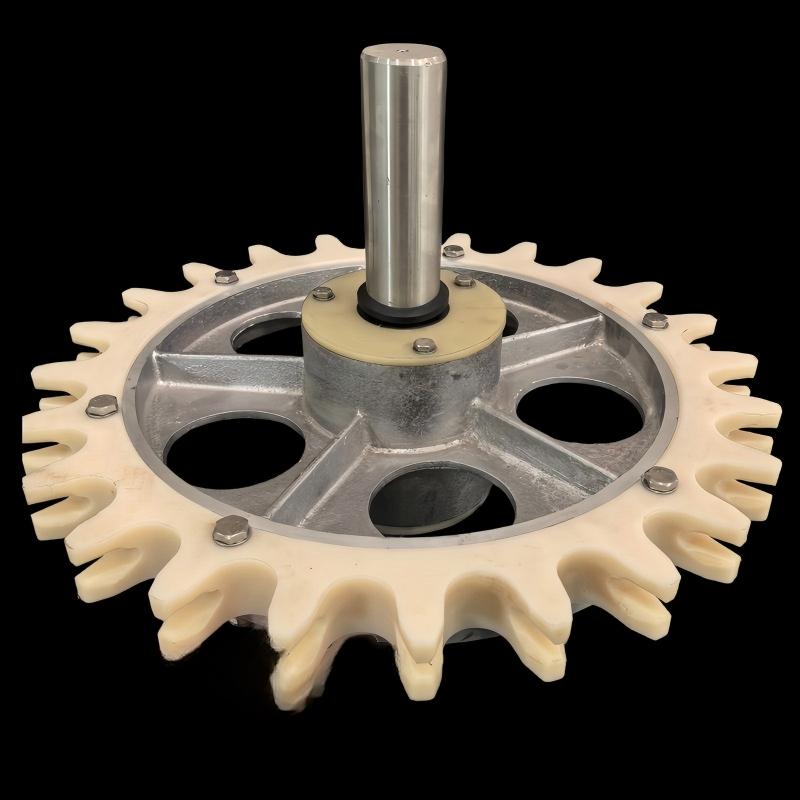

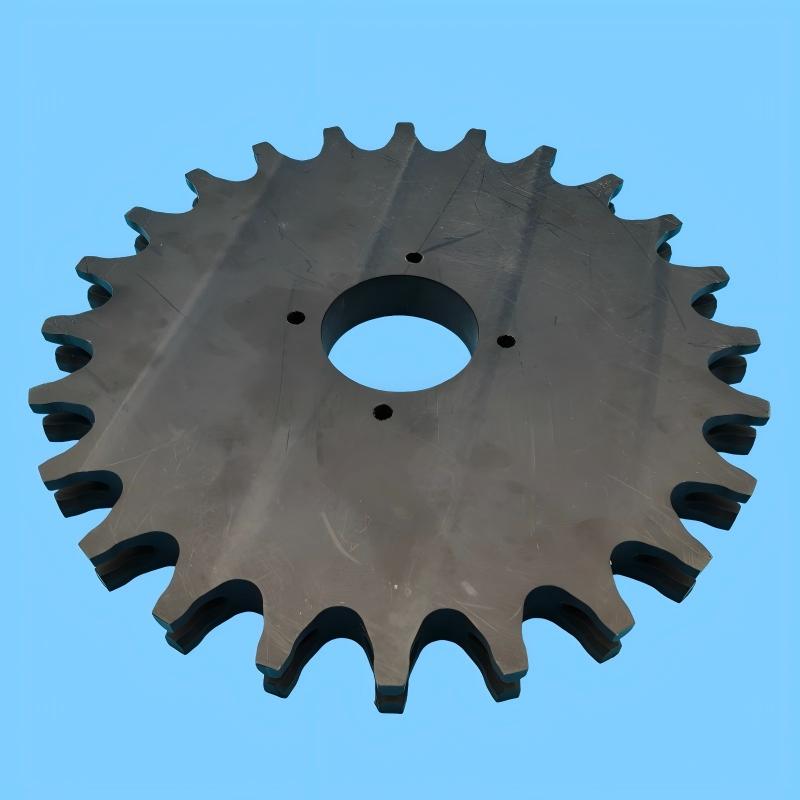

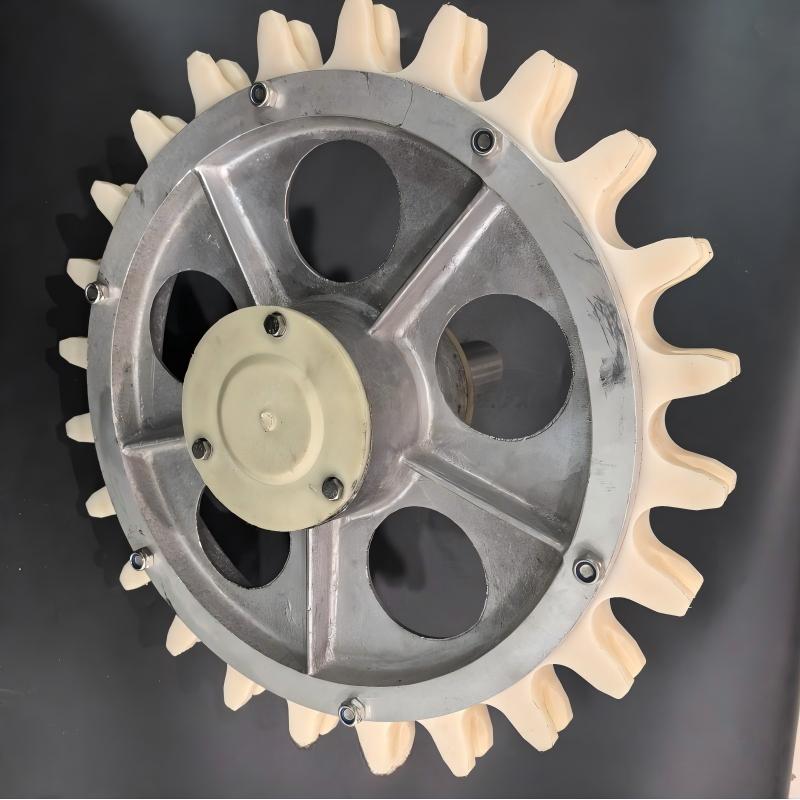

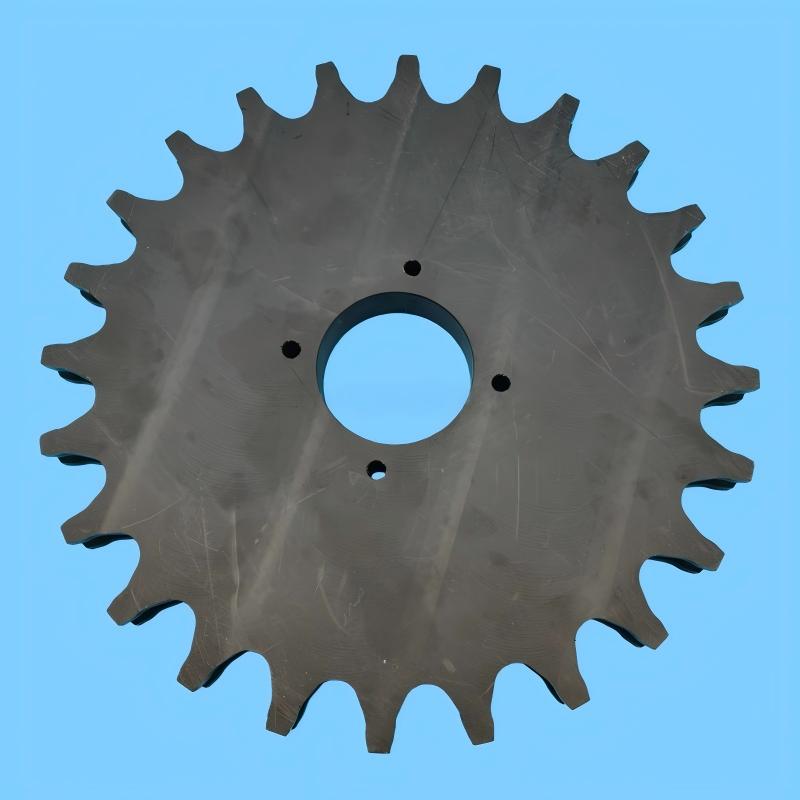

24-tooth idler pulley for poultry overhead conveyor line
A 24-tooth complete idler assembly specially designed for poultry slaughtering overhead conveyor lines, available in D385MM and D485MM specifications, paired with a stainless steel 40mm reinforced shaft to ensure smooth transmission and precise tensioning of the conveyor system.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
GET A QUOTE NOWProduct Details
Product Overview
A 24-tooth complete idler assembly specially designed for poultry slaughtering overhead conveyor lines, available in D385MM and D485MM specifications, paired with a stainless steel 40mm reinforced shaft to ensure smooth transmission and precise tensioning of the conveyor system.
Core Specifications
| Item | Specification |
|---|---|
| Number of Teeth | 24 teeth |
| Outer Diameter Options | D385MM / D485MM (selectable) |
| Shaft Diameter | 40mm solid stainless steel shaft |
| Tooth Profile | Standard involute tooth profile, heat-treated and strengthened |
| Materials | Gear ring: 45# steel with surface hardening Wheel body: Q235 structural steel Shaft: 304 stainless steel |
| Bearing | Double-sealed deep groove ball bearing (Type 6008) |
| Compatible Chain | Specialized overhead conveyor chain for poultry slaughtering |
Product Features
- High-Precision Transmission: Optimized 24-tooth design ensures smooth meshing and reduces chain vibration.
- Dual Sealing: Both sides of the bearing feature rubber seals + dust covers, effectively isolating moisture and contaminants.
- Ready-to-Install: Pre-assembled complete set includes shaft, idler, bearings, and retaining rings.
- Reinforced Structure: 40mm solid stainless steel shaft increases bending strength by 50%.
- Long-Lasting Wear Resistance: Tooth surface hardened by high-frequency quenching, hardness HRC 48-52, service life ≥20,000 hours.
Installation Applications
- Tension adjustment sections of overhead conveyor lines
- Chain support and guidance in turning sections
- Intermediate support points for long-distance conveying
- Speed synchronization stations in production lines
Ordering Information
- Standard Packaging: Individually packed with anti-rust protection per set.
- Minimum Order Quantity: 100 sets per specification.
- Optional Services: Teflon coating on tooth surface (anti-adhesion), laser marking for numbering, custom tooth count.
This idler assembly has passed dynamic balance testing (≤G6.3 grade), effectively reducing vibration and noise during high-speed operation. It is a key spare part for enhancing the stability of poultry slaughtering lines and reducing maintenance frequency.
