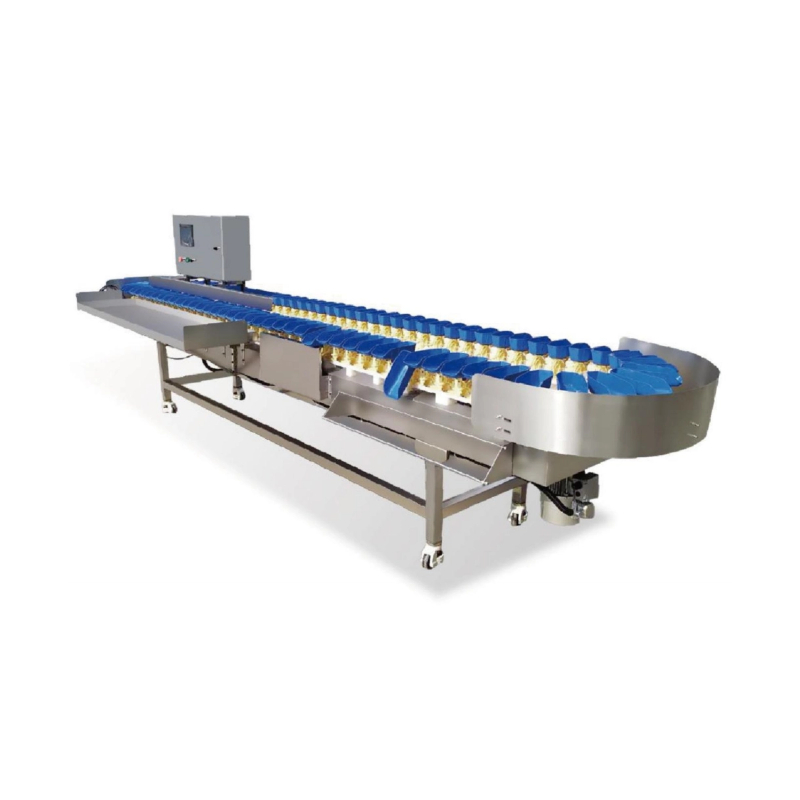

The Material Box Automatic Grading Scale is an automated piece of equipment primarily used for in-line dynamic weighing of products on a production line. It automatically sorts products into different grade outlets based on preset weight ranges. By using material boxes (or trays) to carry and transport the products, this automatic grading scale ensures stability and accuracy during the weighing process for each individual item.
Its core working principle involves circulating trays, which carry the products, past a high-precision weighing sensor.
Conveying and Weighing: The equipment uses sprockets to drive a chain, which rotates the fixed trays in a continuous cycle. When a tray containing a product passes through the weighing area, the high-precision weighing sensor accurately calculates the product’s weight in real-time.
Data Processing and Sorting: The system compares the acquired weight data with the various grade weight ranges preset by the operator. Subsequently, the control system triggers the corresponding execution unit (such as a pusher), which accurately diverts the material box into the corresponding weight-grade channel upon reaching the designated outlet. This achieves a fully automatic, high-speed sorting process with the material box automatic grading scale.
We hope the information above helps you gain a comprehensive understanding of the tray-type weight grader. If you require selection assistance for specific products or capacities with our automatic grading scale, please feel free to let us know.
