●275g/㎡ two-sided galvanized sheet with the features of high intensity, anti-corrosion, long service life and easy to install.
●4 different specifications and 12 model numbers can meet the different feed storage requirements.
●Special top cover opener design, easy to operate in windy weather.
●Special designed brim on the joint of hopper body and hopper panel and seal strip between panel sheets can prevent rainwater entering the silo to cause moldy.
●Special designed hopper panel can avoid feed piling up.
●Equipped ladder and window are convenient for maintaining the equipment and checking feed condition.
●Different boot and outlet can fulfill complex feed conveying requirements.

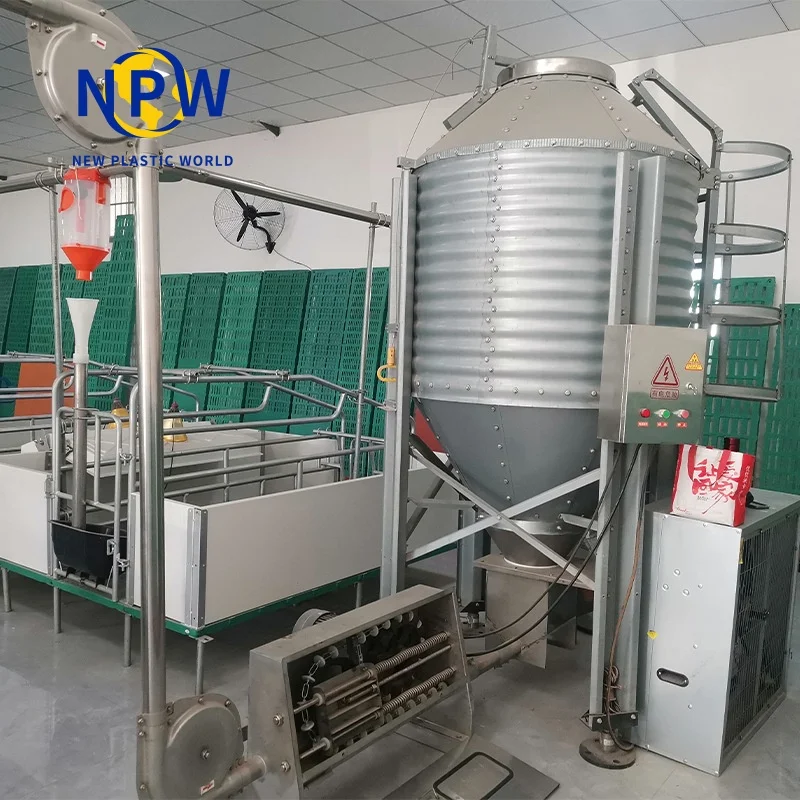

●Customized pneumatic feeding system.
Diameter 1.815m silo w/60°Hopper
| Model | Capacity(T) | Cubic measure（m³） | Height（m） |
| 18-0060-1 | 2.5 | 4.2 | 3.6 |
| 18-0060-2 | 4.0 | 6.5 | 4.5 |
| 18-0060-3 | 5.0 | 8.8 | 5.4 |
Diameter 2.723m silo w/60°Hopper
| Model | Capacity(T) | Cubic measure（m³） | Height（m） |
| 27-0060-1 | 7.0 | 11.8 | 4.8 |
| 27-0060-2 | 10.0 | 17.0 | 5.7 |
| 27-0060-3 | 13.0 | 22.2 | 6.6 |
Diameter 3.050m silo w/60°Hopper
| Model | Capacity(T) | Cubic measure（m³） | Height（m） |
| 30-0060-1 | 9.0 | 16.0 | 5.0 |
| 30-0060-2 | 13.0 | 22.5 | 5.9 |
| 30-0060-3 | 17.0 | 29.0 | 6.8 |
Diameter 3.630m silo w/60°Hopper
| Model | Capacity(T) | Cubic measure（m³） |
Height（m） |
| 36-0060-1 | 13.0 | 21.7 | 5.0 |
| 36-0060-2 | 19.0 | 30.9 | 5.9 |
| 36-0060-3 | 25.0 | 40.1 | 6.8 |
