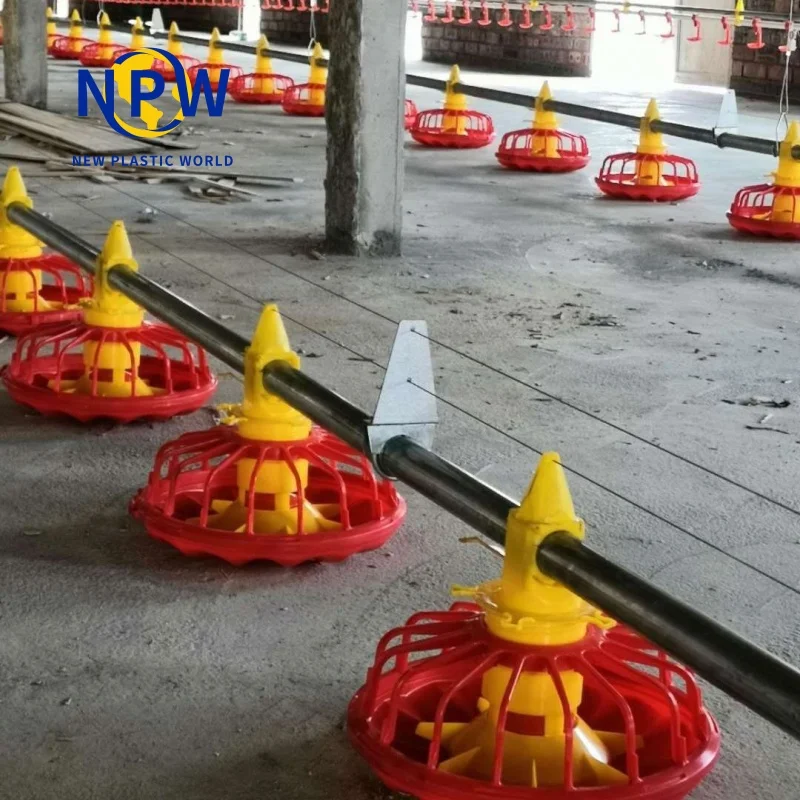

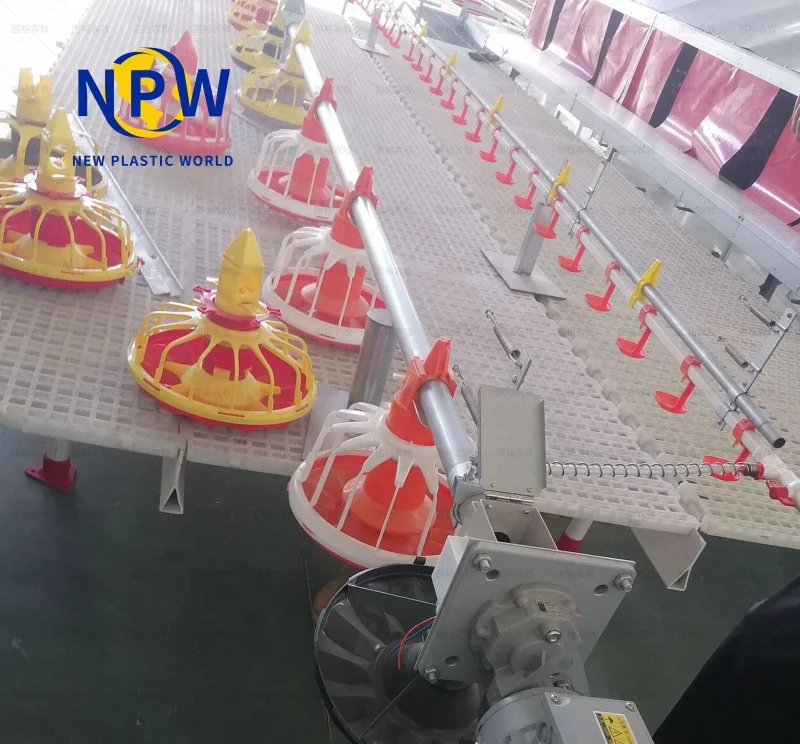

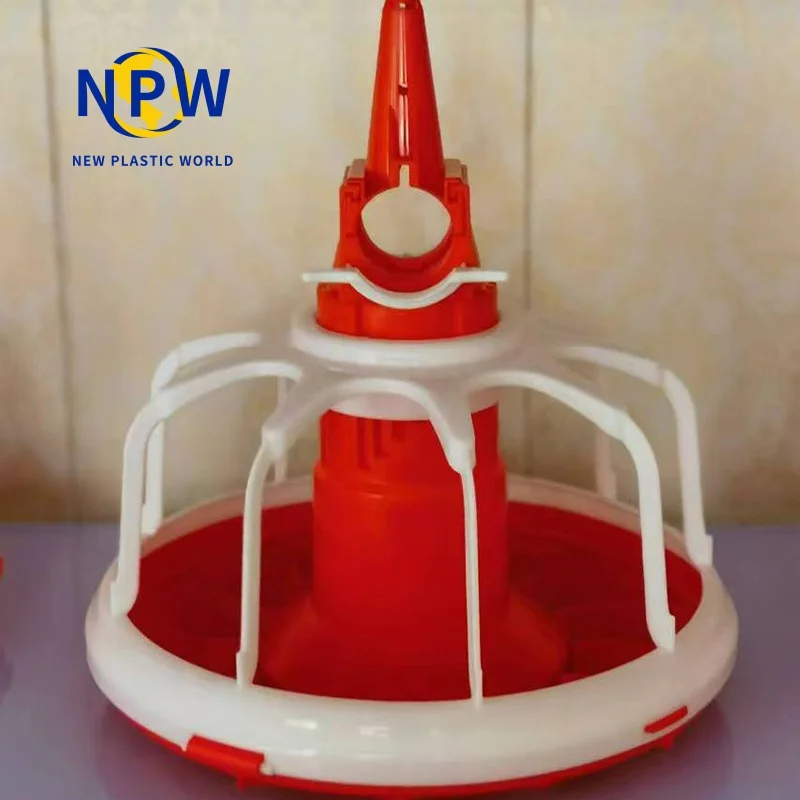

●Feed pan is ideal for whole raising period from brooding to slaughter.The suitable pan height is easy to get feed.360° feed distribution improve uniformity.
●Special designed feed cone with wings prevents feed waste.
●Control pan ensure fresh feed supply,provide hygienic feed to birds and excellent feed conversion rate.
●Convenient adjustment of feed level.
●Feed pan is available to rotate 360 degrees,available to swing vertically or fix without rotation.
●Optional shut-off slide,suitable for partition feeding.
●Special hinged-type opening at bottom for easy cleaning and disinfection.
●Adjustable feeding line of optional position for different period birds.When cleaning,easy to lift.
| Final weight:1.8kg | Final weight:1.8kg-3kg | |
| Birds/pan | 57-91 | 57-85 |
| Density(birds/㎡) | 16-20 | 12-16 |
| Max daily feed intake | 170g | 175g-220g |
| Feed pan | Diameter | 330mm |
| Material | pp | |
| Pan capacity | 300g | |
| Number of grill | 14 | |
| Grill hole size | 60mm | |
| Pipe & auger | Material of pipe | Hot galvanized |
| External diameter of auger | 45mm | |
| Distance between feeder | 1000mm 750mm | |
| Max feeding length | 150m | |
| Drive motor | Drive motor specification | 1.1kw 380v 50hz
0.75kw 380v 50hz |
| Delivery capacity | ≥450kg/h | |
| Hopper | Capacity | 70kg |
●Hopper for broiler pan feed line
Hopper location: hopper installed at the end of the feed line or middle of the feed line to realize automatic feed delivery,feed delivered equally to each feed pan.
Hopper installed at middle of pan feed line for fast feed delivering from hopper to each feed pan for those long length feeding lines.
●Hopper feed level controller
Using feed lever sensor or micro-switch in hopper for automatic feed lever controlling.
To control drive motor on-off,when there is feed in hopper,motor will be on for movement,when the feed in hopper under micro-switch,motor will be off for movement,this device forbid motor keeping movement when there is no feed in feed pipe.
●Sectional brooding using AFS feed level sensor
Feed controlling with feed sensor to satisfy sectional brooding needs.
During brooding period, generally AFS feed level sensor is placed in the fourth or fifth pan of brooding district to realize sectional birds brooding.
●Brooding using partial feeding lines
Using partial feeding lines for brooding,during brooding period, the sensor is placed at the front of the end control pan.
●Hopper capacity
We have 70kg hopper,90kg hopper and 120kg hopper for broiler pan feed line.
Using extension parts to increase hopper capacity to meet with clients request for large capacity hopper.
●Feed line hanging system
For hanging rope,we have 3mm stainless steel wire,3mm galvanized wire,as well as 6mm nylon rope for clients’request.We recommend 6mm nylon rope better.
●Feed pipe connector
Using pipe clamp to fix feed pipe together.

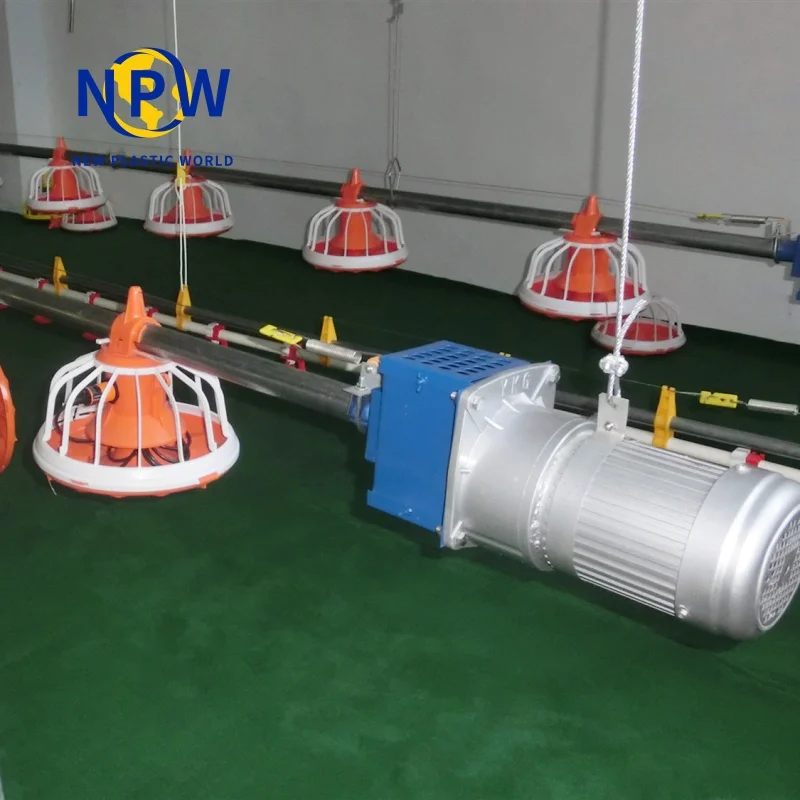

●Motor for broiler pan feed line
We have two types motor for client’s choice.
Split-type motor and integrated-type motor,we recommend split-type motor better,which save maintenance cost for long service time.
