Automatic Feeding Line System Pan Feeders

Broiler pan feeding system

Material: 100% virgin PP material with anti-UV

Feed capacity: 55 birds/pan

Scope of application: Suitable for chickens 1 day old and above.

Easy to cleaning.

Bottom shape: available in wave-shape and flat bottom.

Get Quote Whatsapp

Product Details

Products Description

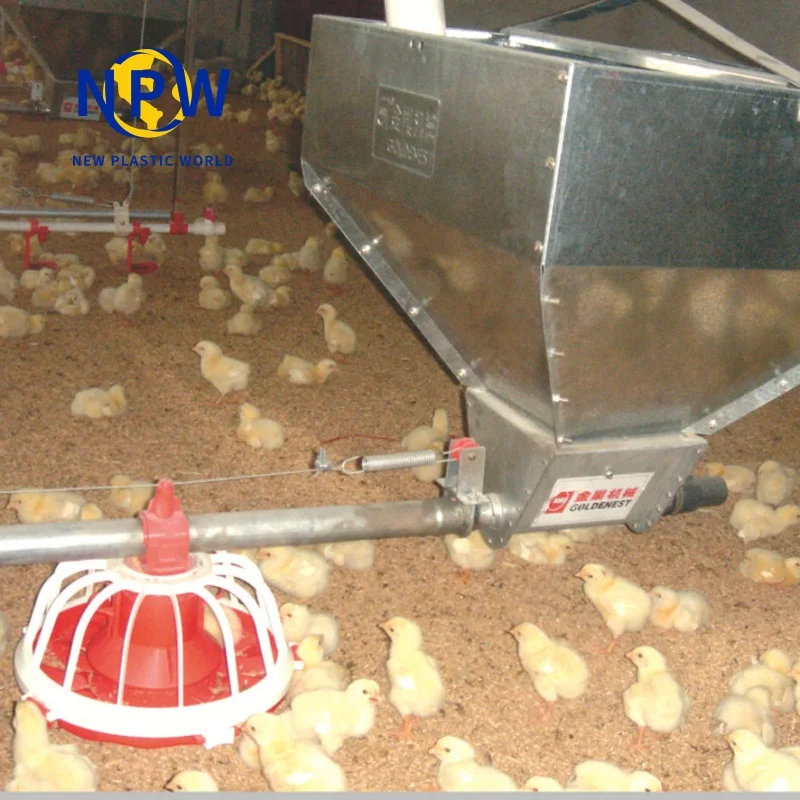

Automatic pan feeding system including a driving device, a hopper, a conveying pipe, an auger, trays, suspension lifting device, an anti-perching device and a feed sensor. The main function of the system is to transport the feed from the hopper into each feeding pan to ensure the eating of the broiler and automatically controlled by the level sensor’s direction which give the order to motor to make it working or stop.

Item	Specification
High-quality special driving motor	Power: 750 w,voltage: 380 v Frequency: 50HZ,three-phase AC current Transmission speed:450 kg/h
V-shaped Bin (With Hopper)	Hopper volume: 40~50 kg Material: hot-dip galvanized sheet
Feeding Pipe	3m 4holes Diameter: φ 75mm*3.6mm Material: Quality hot-dip galvanized steel pipe

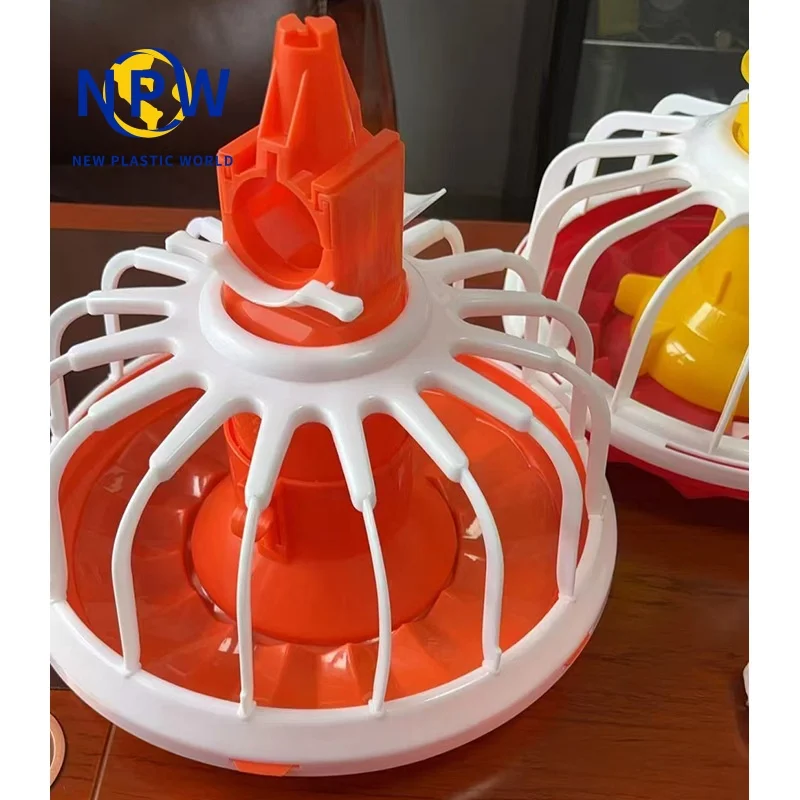

Feeding Pan	Diameter: φ 330mm Processing:16 cells Feeding Quantity:40~50/plate
Auger	Feeding Capacity: 1400kg/h
Hanging System	All the required parts including the winches

The situation is different for each farm

we make the best plan according to your specific situation
