Automatic Harvesting Broiler Cage

Automatic Harvesting Broiler Cage Drawing

cage size

Product Advantage

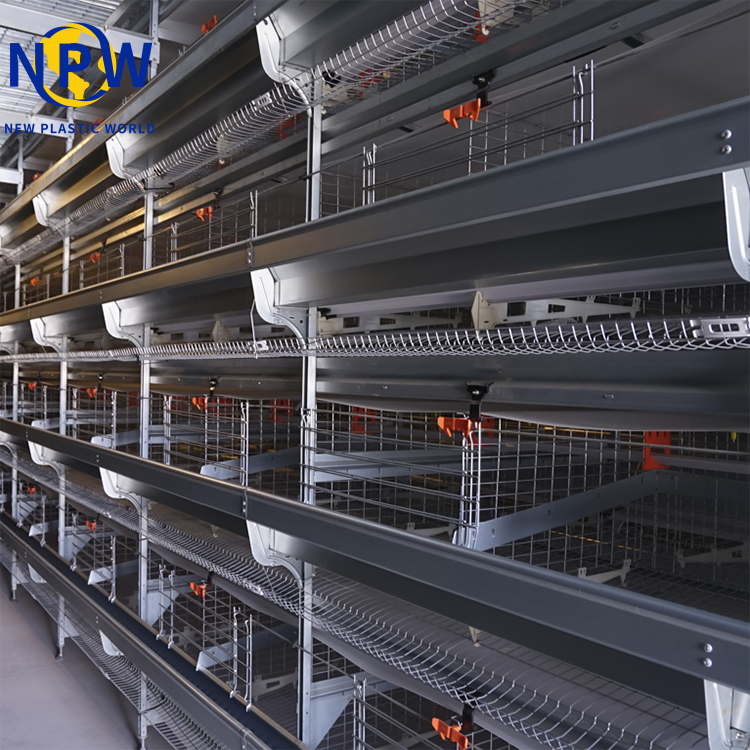

1. Cage mesh + frame

• Cage size: perfectly fitted to match the number of birds (raising density:50kg/㎡).
• Surface treatment: hot galvanized with uniform 275g zinc coating, good anti-corrosion quality.

2. Automatic feeding

• Silo: weighing device is included for daily records of feed consumption.
• Pan feeding: The height is adjustable to feed chickens at different ages.
• Feed sensor: IFM®.
• Feed pipe: hot galvanized.
• Spiral: imported from South Africa.
• This mechanism guarantees a uniform distribution of feed over the whole system.

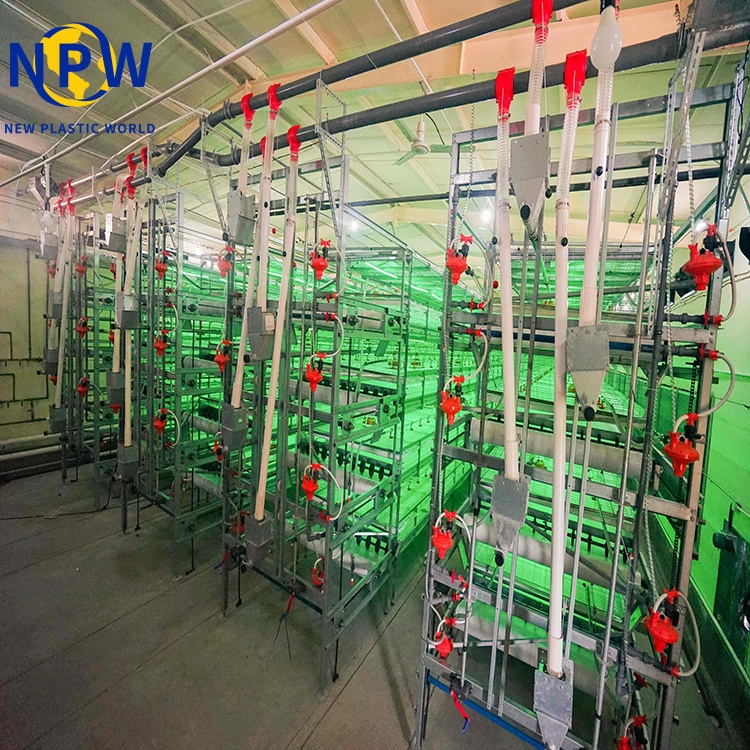

3. Automatic drinking

• Lifting system for every water dispenser allows chickens to drink at the correct height.
• Two different water supply lines are placed in each cage with 12 pcs drinkers.
• 360°water supply of the nipples.
• Supply Doser, filter, and pressure gauge.

4. Automatic manure cleaning

• PP belt, 1.2mm thickness.
• Conveying speed: 3m/min.

5. Automatic bird-harvesting

• Plastic slat floor: PP raw material, soft and strong, hurt chicken breasts and feet; Easily pulled out.
• Flexible bird-harvesting time: Qualified chickens are taken out first. Chickens below the slaughter weight can continue to be raised for 1-2 days.

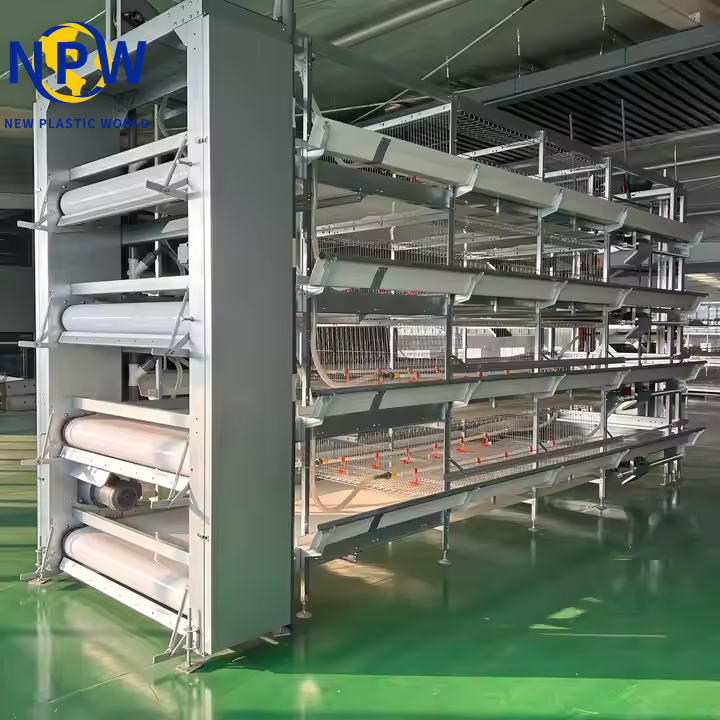

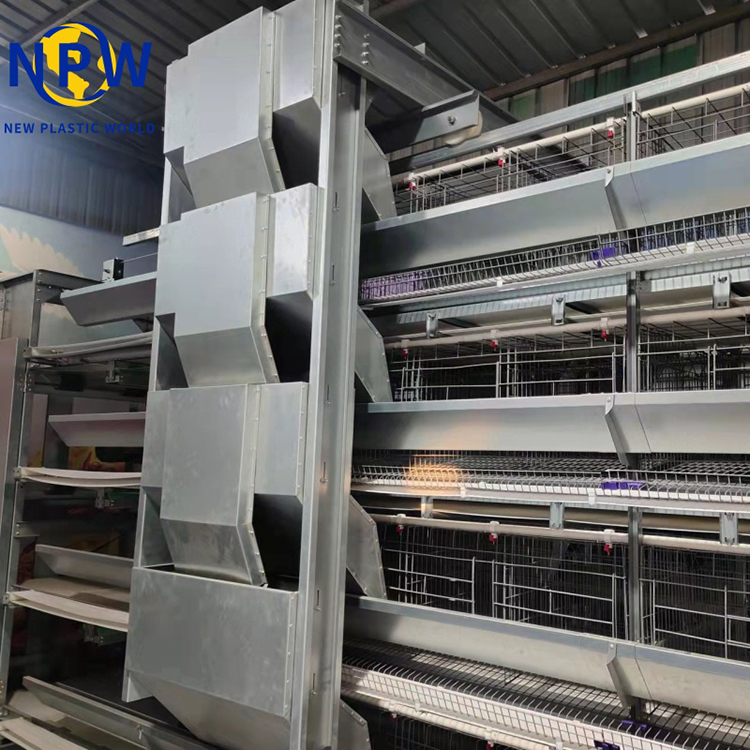

• lifting system at the final part can transport chickens from each tier outside the house.
• Bird-harvesting speed: about 6000 birds per hour.
• PVC conveying belt with 600mm width.

6. Automatic ventilation

• Cone fan: pass dynamic balance test.
• Cooling pad: with anti-rat mesh.
• Air-inlet window: with anti-bird mesh.
• Deflector: prevent cold air on chickens directly, avoid cold stress.

• Different heating methods can be designed: gas type, water type, diesel type

7. Automatic lighting

• Lights are specially for broiler chickens
• Uniform lighting, no flicker

8. Prefab chicken house

• Customized prefab steel structure chicken house based on local environment
