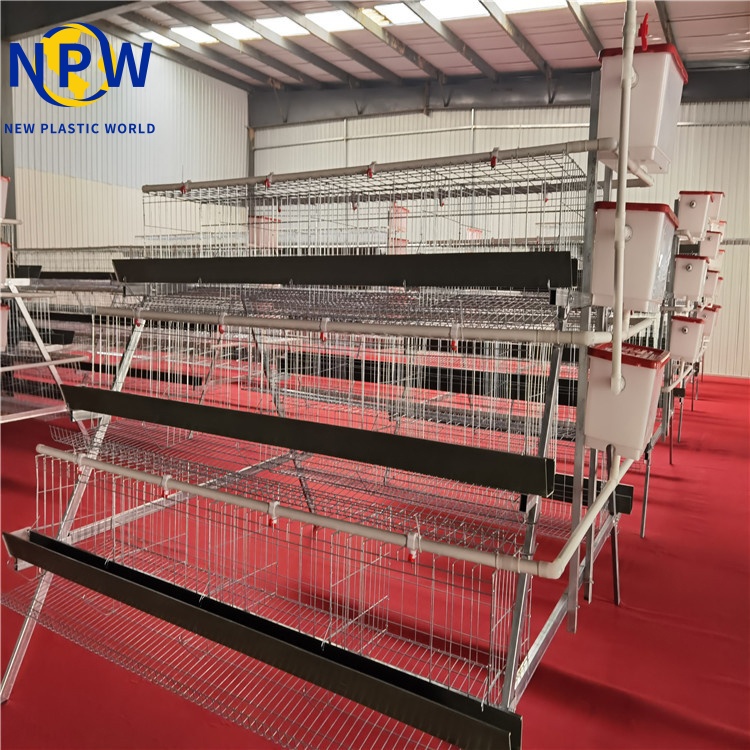

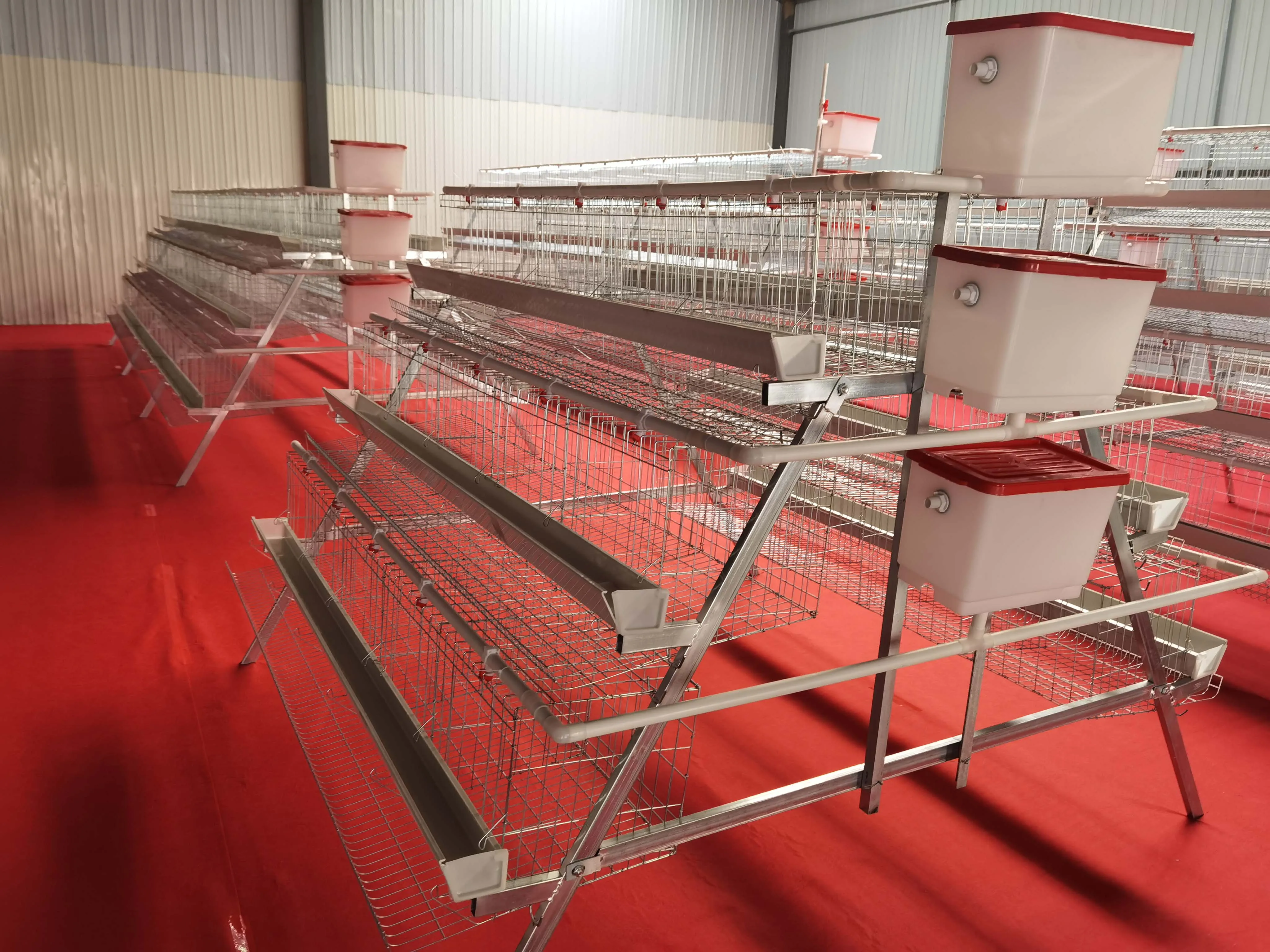

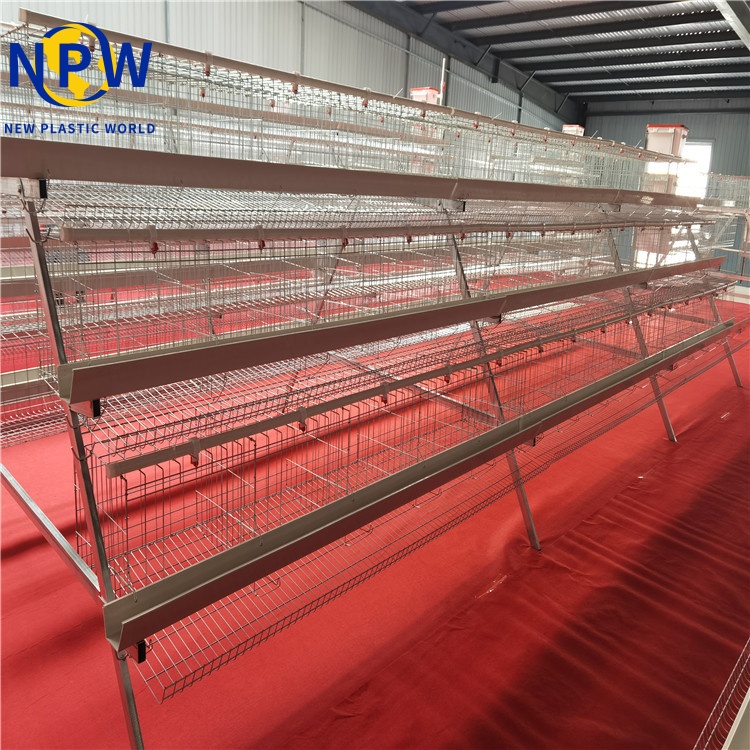

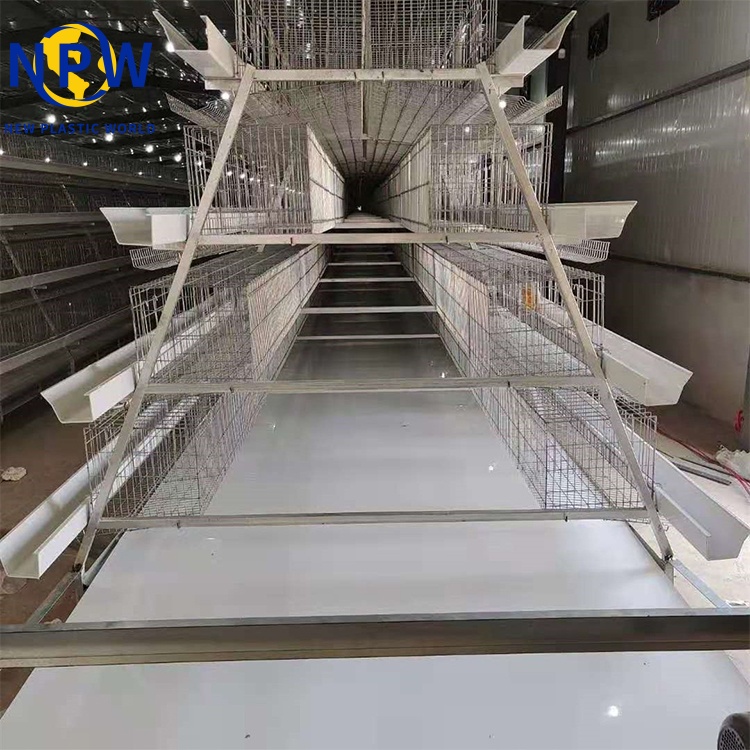

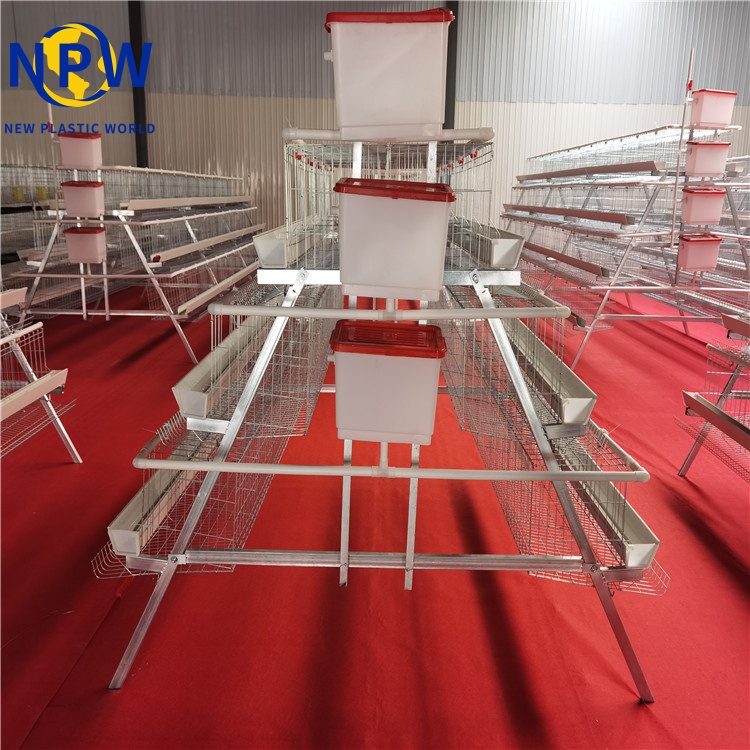

A-Type Manual Chicken Cage

Advantage:

• Low disease and death rate—-Good design and environment control system lead to almost zero death rate.
• Highly corrosion resistant—-Galvanizing process assures cage corrosion resistant.
• Strong frame and long life usage—–U-shaped steel frame makes cage line strongly stand.

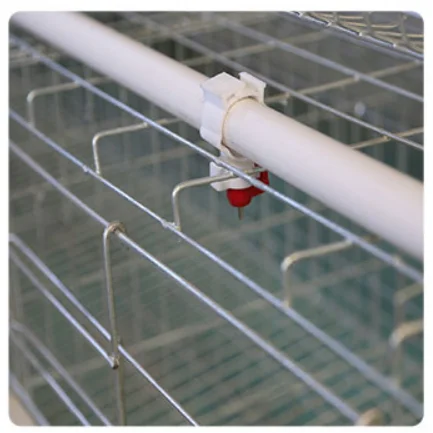

• Automatic water drinking system—Good quality nipple drinkers avoid splashing and control output,to save water for you.
• Easy to manage–Fully automatic system includes automatic feeder,automatic manure disposal machine,automatic egg collecting system, to greatly save labour and management cost.
• Easy to operate—-All systems are all controlled by control panel,that makes daily operation easy.
• Extend the egg laying circle and egg laying rate—Scientific design to relieve the level of fatigue from chicken effectively.

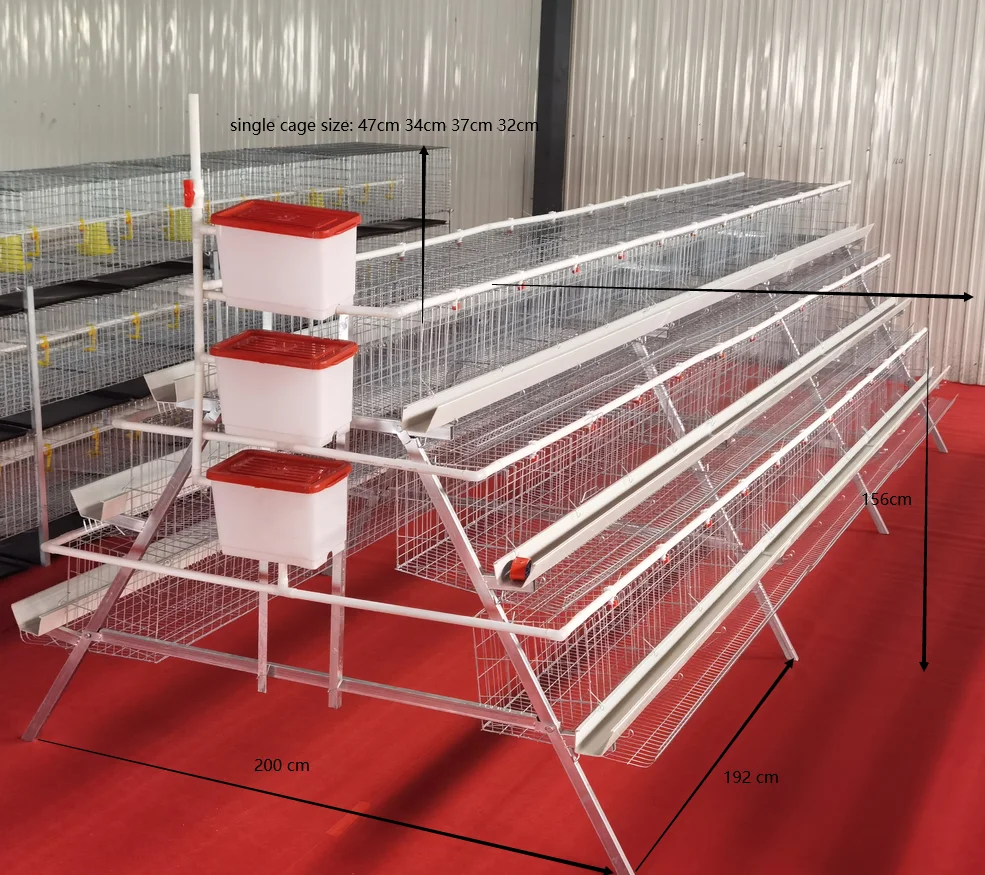

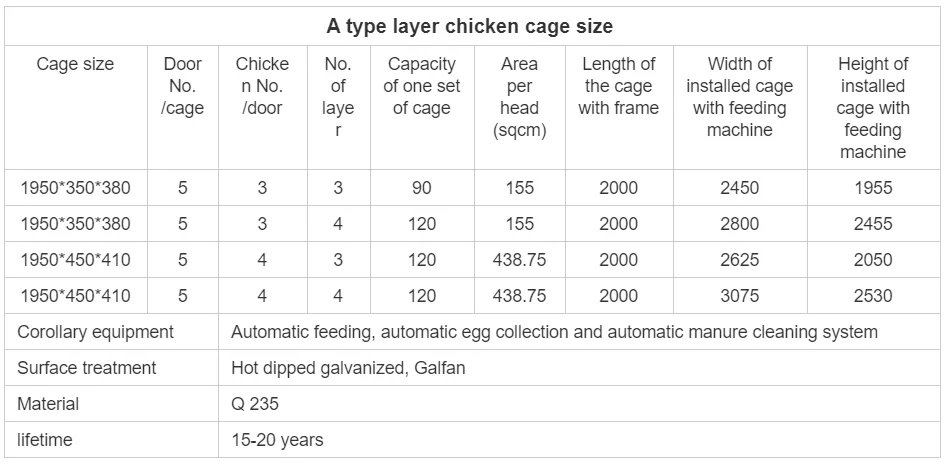

Detailed Specifications

Feeding system

*The main feed line can work automatically. Feed will be dispensed evenly in the feed trough.

*V-shaped feed trough may avoid “feed left at edge” to prevent the feed from accumulating and mildewing.

*The magnetic end device can effectively clean the accumulated feed to avoid mildew, ensure birds healthy and save labour.

Drinking system

*Water front kit: It includes Dosatron medicine doser, high quality filter, pressure-control valve, and electronic water meter to record water consumption.

*Pressure regulator: Water pressure in the drinking line can be adjusted by turning the knob under the regulator. When you want to
rinse the drinking line, just turn to “flush” position, then water will be forced through the pipe at high pressure.

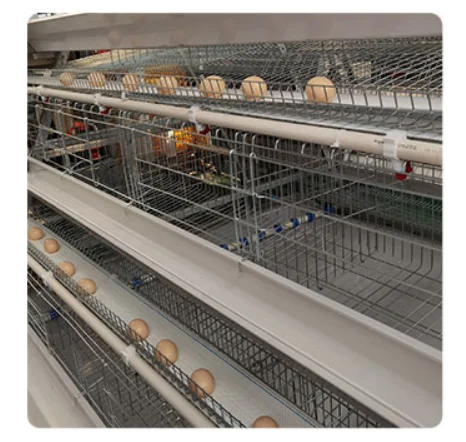

Egg collecting system

*High quality PP egg belt (woven or perforated belt), low extension rate, little contraction or expansion caused by changing
temperature.

*Optional egg saving wire ensures that eggs will roll smoothly to the longitudinal egg belt. Belt moving time and interval can be
adjusted as per customer’s requirements.

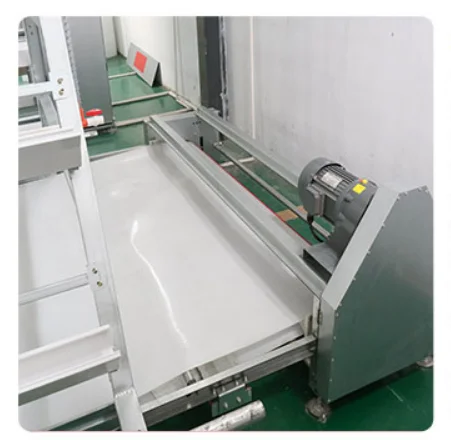

Manure removal system

*High efficiency motor ensures the belt transmission stable and reliable.

*Rubber-coated driving roller and partial rubber-coated tension-roller make sure that manure will be cleared away from belt and
no slippery of belt.

*The manure scraper is a little soft, effectively protects the conveyor belt. Double scraper ensures the cleaning effect of the conveyor belt.

Environment control system

*Cooling Fan For Poultry Houses frame adpot the international standard plate, the thick zinc coating 275g/sqm ensures great corrosion resistance, the bottom outlet design makes fan structure more reasonable.

*Motor from famous brands in China and Siemens can be accessible with the voltage and frequency of motor can be provided with customized services.

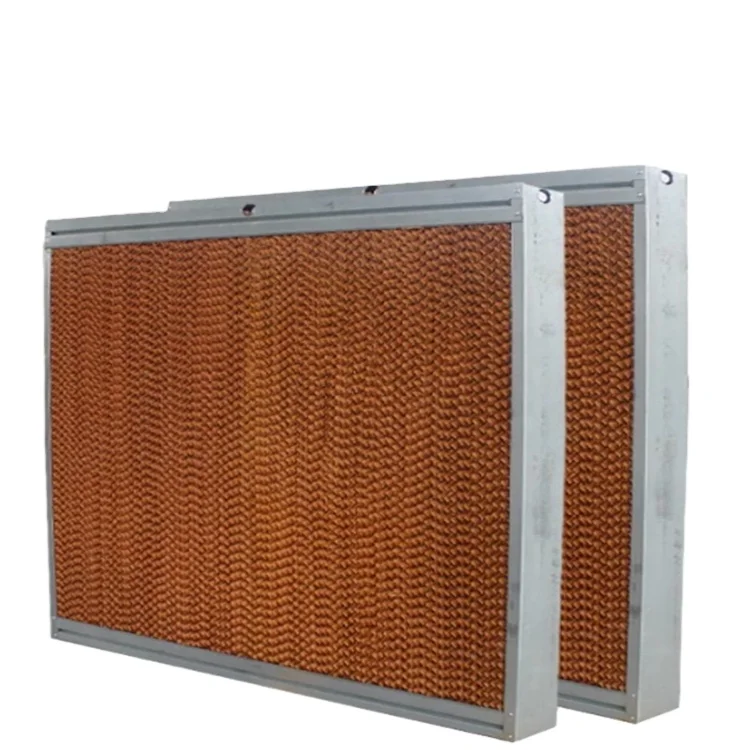

*cooling pad use new material and space crossing linking technology, high water absorbability ,high water-resistance, anti-mildew and long service life

*The Product contains surface active agent for natural water absorbability ,fast pervasion speed, lasting effectiveness.

* Strict production as per standard, width of 600mm cooling pad involves 85 sheets

* Raw material adopts imported kraft paper, we have 95g/sqm and 105g/sqm for option. Tension resistance at 70N, Absorbability
height as 45mm/10min, moisture at 5-8%, humidity at 18N
